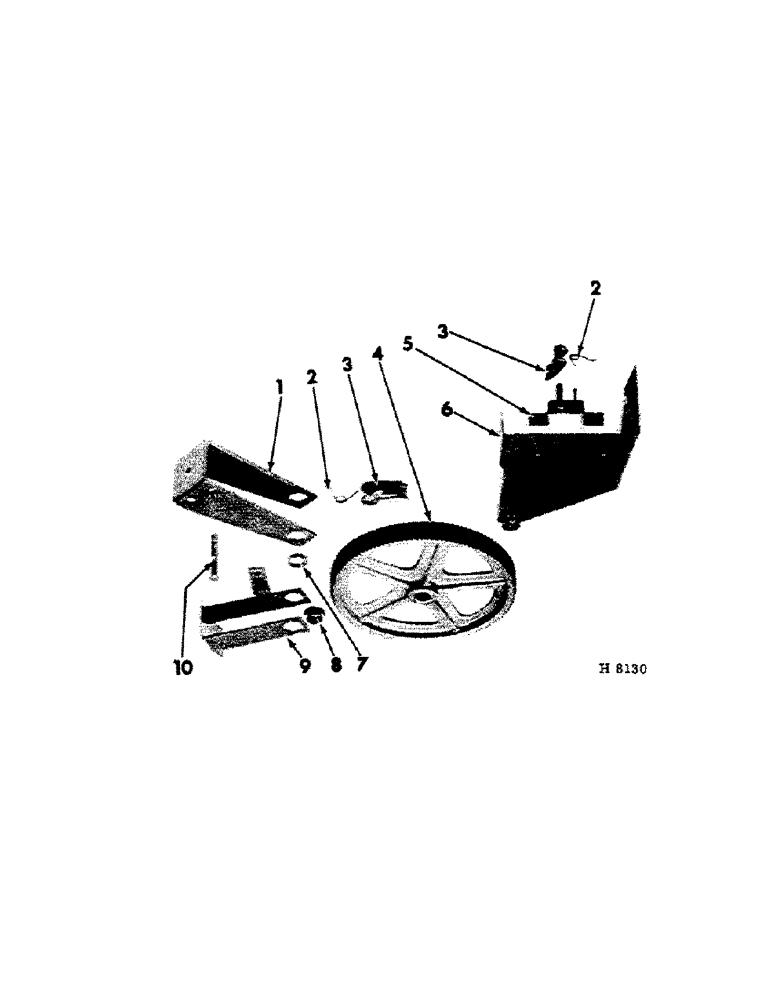

Запчасти Case IH 160 (G-12) - RATCHET WHEEL

1

608029R1

BRACKET, rocker arm

1шт.

2

612872R1

SPRING

pawl

2шт.

3

617431R1

PAWL

ratchet

2шт.

4

608030R1

WHEEL, 120T ratchet

1шт.

126

KEY,1/4" Sq x 2 1/2", Par

1/4 x 1/4 x 2-1/2" straight

1шт.

5

608094R11

HOLDER, ratchet pawl

1шт.

17519R1

BOLT,Hex, 1/4" - 20 x 2", Gr 2

1/4 x 2" mach

1шт.

80280503

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5, Full Thd

BOLT W/NUT, 3/8 x 1" crg

2шт.

Q1505

WASHER

13/32 x 1 x 16 ga

2шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

1шт.

114501

JAM NUT,Jam, 1/4"-20, G5

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

6

608031R11

SUPPORT, rear apron shaft

1шт.

219-28

LUBE NIPPLE,5/16" - 32

LUB-FITTING, 5/16"

1шт.

19427R1

BOLT

W/NUT, 3/8 x 7/8" cd-pltd crg

2шт.

19573R1

BOLT,Hex, 3/8"-16 x 7/8", G2

W/NUT, 3/8 x 7/8" cd-pltd mach

2шт.

619856R1

WASHER

13/32 x 1 x 16 ga cd-pltd

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

7

608093R1

SPACER,1 1/4" X-Strng Pipe x 3/8"

rear apron shaft LH

1шт.

8

614014R1

BUSHING, control sector

2шт.

9

608024R91

SECTOR, feed control

1шт.

10

608032R1

PIN, bracket pawl

1шт.

103385

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

2шт.

615131R1

WASHER

21/32 x 1 x 22 ga

2шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

1шт.

350515R1

WASHER

21/32 x 1 x 16 ga

1шт.
