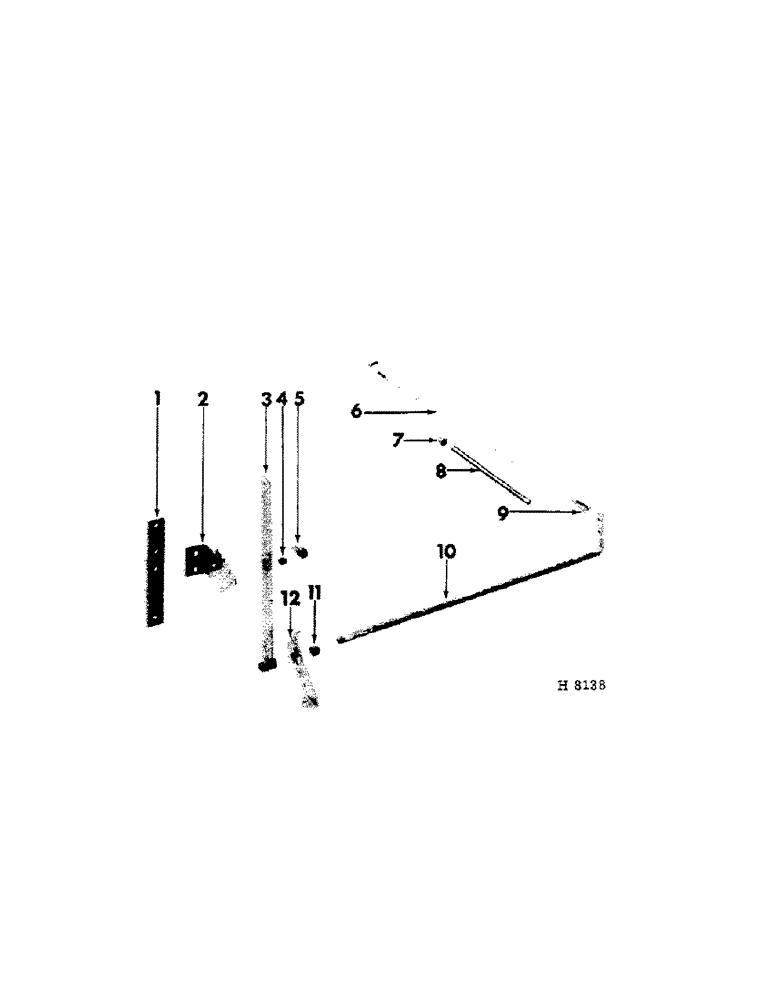

Запчасти Case IH 160 (G-12[A]) - FEED CONTROL

1

613810R1

PLATE, sector support

1шт.

14995R1

BOLT

W/NUT, 3/8 x 3/4" crg

1шт.

15039R1

BOLT

W/NUT, 3/8 x 1-1/2" crg

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

2

608041R1

SECTOR, trip lever

1шт.

15054R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1 3/4", Gr 2

BOLT, CARRIAGE, , w/Nut Short NK, 3/8"-16 x 1 3/4", G2

2шт.

Q1505

WASHER

13/32 x 1 x 16 ga

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

3

612785R21

LEVER, trip rope

1шт.

617938R1

PIN,5/16" x 1 3/8", Coiled

1шт.

4

519628R1

SPACER

BUSHING, trip pawl

1шт.

5

612721R2

PAWL, trip

1шт.

17498R1

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 2

W/NUT, 1/2 x 1-3/4" mach

1шт.

Q5035

WASHER

17/32 x 1 x 16 ga

1шт.

Q169

WASHER, 25/32 x 1-1/4 x 18 ga

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

6

608040R1

ROD, feed control

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

2шт.

W6652

WASHER

15/32 x 1 x 16 ga

1шт.

7

612868R1

COLLAR, feed control rod

1шт.

83-1255

SET SCREW,Hex Soc, 1/4"-20 x 5/16"

SCREW, 1/4 x 5/16" hdls cup-pt set

1шт.

8

612871R1

SPRING

feed control rod

1шт.

9

117825

CLEVIS, rod end

1шт.

114786

PIN

7/16 x 15/64" rod-end dld

1шт.

103373

COTTER PIN,3/32" x 3/4"

Pin, Split (Cotter), 3/32" x 3/4"

1шт.

10

613808R1

ROD, front adjusting

1шт.

Q3501

WASHER

25/32 x 1-1/4 x 16 ga

3шт.

617938R1

PIN,5/16" x 1 3/8", Coiled

2шт.

432-1220

COTTER PIN,3/16" x 1 1/4"

Pin, Split (Cotter), 3/16" x 1 1/4"

1шт.

11

PO17652

SPACER, adjusting rod

1шт.

12

613809R1

SUPPORT, adjusting rod

1шт.

17420R1

BOLT,Hex, 3/8"-16 x 7/8", G2

W/NUT, 3/8 x 7/8" mach

1шт.

15054R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1 3/4", Gr 2

BOLT, CARRIAGE, , w/Nut Short NK, 3/8"-16 x 1 3/4", G2

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

ROPE, 3/8" sisal x 10 ft trip (dealer to supply from bulk stock)

1шт.
