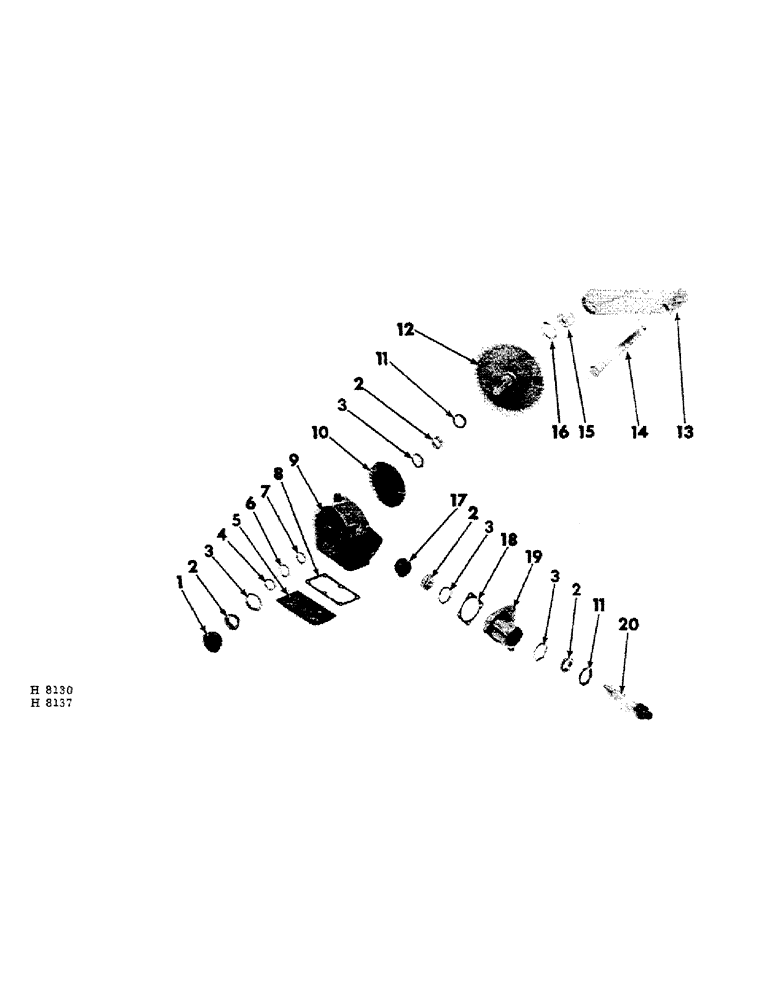

Запчасти Case IH 160 (G-11) - MAIN DRIVE GEAR CASE

609359R91

CASE, main drive gear (consists of parts listed, unless otherwise noted)

1шт.

1

612884R1

HUB CAP

CAP, gear case bevel gear

1шт.

2

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

CONE, gear case brg

4шт.

3

651817R1

BEARING CUP

CUP, gear case brg

4шт.

3

651817R1GV

BEARING CUP

Value, Bearing Cup

4шт.

4

612889R1

WASHER

gear stud special

1шт.

5

608059R11

COVER, gear case

1шт.

219191

FINGER

PLUG, 3/8" sq-hd pipe

1шт.

17407R1

BOLT,5/16" - 18 x 5/8"

5/16 x 5/8" mach

2шт.

17419R1

BOLT, 5/16 x 7/8" mach

4шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

6

612763R1

WASHER, bevel gear

1шт.

7

612857R1

SHIM

bevel gear

1шт.

8

612881R1

GASKET

gear case cover

1шт.

9

612735R21

CASE, gear (includes plugs, 103866)

1шт.

9617020

PLUG,1/4" - 18 x 0.48"

S, 1/4" sq-hd pipe

3шт.

18496R1

BOLT,Hex, 1/2"-13 x 1 1/2", G2

1/2 x 1-1/2" cd-pltd mach

2шт.

+ Not part of gear case

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

+ Not part of gear case

1шт.

10

612882R2

GEAR, main drive bevel

1шт.

609379R1

KEY, 5/16 x 5/16 x 2" straight

1шт.

11

612964R91

SEAL

bevel pinion & gear oil

2шт.

12

608060R91

SPROCKET, 48R lower beater drive

1шт.

12026R1

WASHER

17/32 x 1-1/4 x 16 ga

1шт.

114505

JAM NUT,Jam, 1/2"-13, G5

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

13

608057R1

ARM, ratchet rocket

1шт.

+ Not part of gear case

1шт.

80711

LUBE NIPPLE,65 Degree, 1/8" NPT x 7/8" lg

LUB-FITTING, 1/8" - 65 degree elbow

1шт.

+ Not part of gear case

1шт.

14

608033R1

PIN, 7/8 x 7" std-hd dld

1шт.

+ Not part of gear case

1шт.

432-1620

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), 1/4" x 1 1/4"

1шт.

+ Not part of gear case

1шт.

15

617617R91

BALL BEARING,15.86mm ID x 49.21mm OD x 20.65mm W

BEARING, arm

1шт.

+ Not part of gear case

1шт.

16

617618R1

SNAP RING,#193, 2.025, Int, Spiral

RING, brg retaining

1шт.

+ Not part of gear case

1шт.

17

612883R2

GEAR

PINION, main drive bevel

1шт.

18

612856R1

GASKET

SHIM, bevel gear housing

1шт.

19

612734R1

HOUSING

bevel gear

1шт.

179840

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5

3/8 x 1-1/8" type 2

1шт.

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

20

612750R1

SHAFT, bevel pinion

1шт.

612887R1

WASHER

21/32 x 1-1/4 x 11 ga

1шт.

612634R1

NUT

7/8" slt

1шт.

102649

SLOTTED NUT,5/8"-18, G5

NUT, 5/8"-18, G5

1шт.

103385

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

1шт.

103387

COTTER PIN,1/8" x 1 1/2"

Pin, Split (Cotter), 1/8" x 1 1/2"

1шт.
