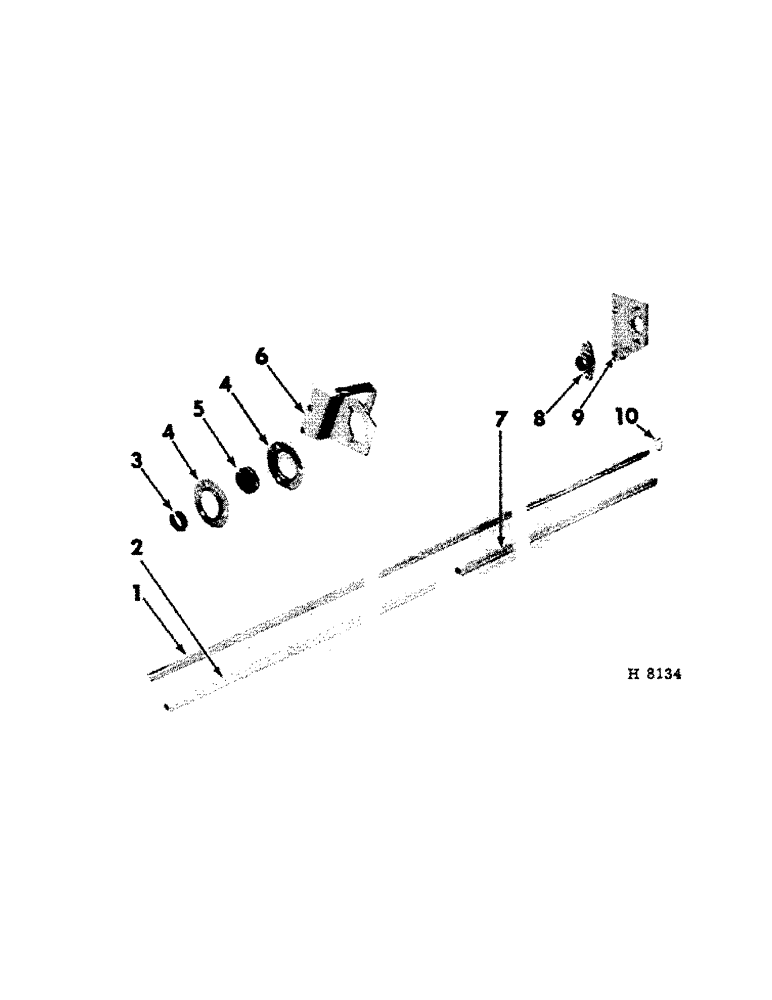

Запчасти Case IH 160 (G-10) - SIDE DRIVE SHAFT

1

609358R1

SHAFT, side drive

1шт.

Q162

WASHER

1-5/32 x 1-3/4 x 16 ga

1шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

1шт.

2

608047R1

SHIELD, side drive shaft front

1шт.

3

557115R11

COLLAR

COLLAR, brg locking (includes 115321, screw) (Fafnir, Fischer, New Departure w/455960R91, bearing)

1шт.

115321

SET SCREW,Hex Skt, 5/16"-18 x 5/16"

SCREW, 5/16 x 5/16" hdls cup-pt set

1шт.

3

610537R11

COLLAR

brg locking (includes 115321, screw) (SKF w/610536R91, bearing)

1шт.

115321

SET SCREW,Hex Skt, 5/16"-18 x 5/16"

SCREW, 5/16 x 5/16" hdls cup-pt set

1шт.

4

565631R1

BEARING CAP,2.441" ID x 4.4375" OD x 0.34375"

RETAINER, brg

2шт.

19417R1

BOLT

W/NUT, 3/8 x 1" cd-pltd crg

3шт.

469668R1

WASHER

13/32 x 3/4 x 16 ga cd-pltd

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

5

455960R91

BALL BEARING

BEARING, shaft (Fafnir, Fischer, New Departure w/557115R11, collar)

1шт.

5

610536R91

BEARING

shaft (SKF w/610537R11, collar)

1шт.

6

608042R91

SUPPORT, side drive shaft front

1шт.

19427R1

BOLT

W/NUT, 3/8 x 7/8" cd-pltd crg

2шт.

18781R1

BOLT,Hex, 3/8"-16 x 2", G2

W/NUT, 3/8 x 2" cd-pltd mach

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

7

608048R1

SHIELD, side drive shaft rear

1шт.

8

608052R91

BEARING, shaft rear (opt w/608879R91, bearing)

1шт.

19571R1

BOLT,Hex, 3/8"-16 x 1 1/8", G2

W/NUT, 3/8 x 1-1/8" cd-pltd mach

1шт.

619856R1

WASHER

13/32 x 1 x 16 ga cd-pltd

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

8

608879R91

BUSHING

BEARING, shaft rear (includes bearing, 608880R91; plate, 608882R1 and retainer, 608881R1)

1шт.

19571R1

BOLT,Hex, 3/8"-16 x 1 1/8", G2

W/NUT, 3/8 x 1-1/8" cd-pltd mach

2шт.

619856R1

WASHER

13/32 x 16 ga cd-pltd

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

9

608051R2

SUPPORT, drive shaft rear

1шт.

19417R1

BOLT

W/NUT, 3/8 x 1" cd-pltd crg

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

10

592705R1

BUSHING, knuckle

1шт.

608880R91

BEARING

rear brg

1шт.

608881R1

RETAINER

brg

1шт.

608882R1

PLATE

brg back

1шт.
