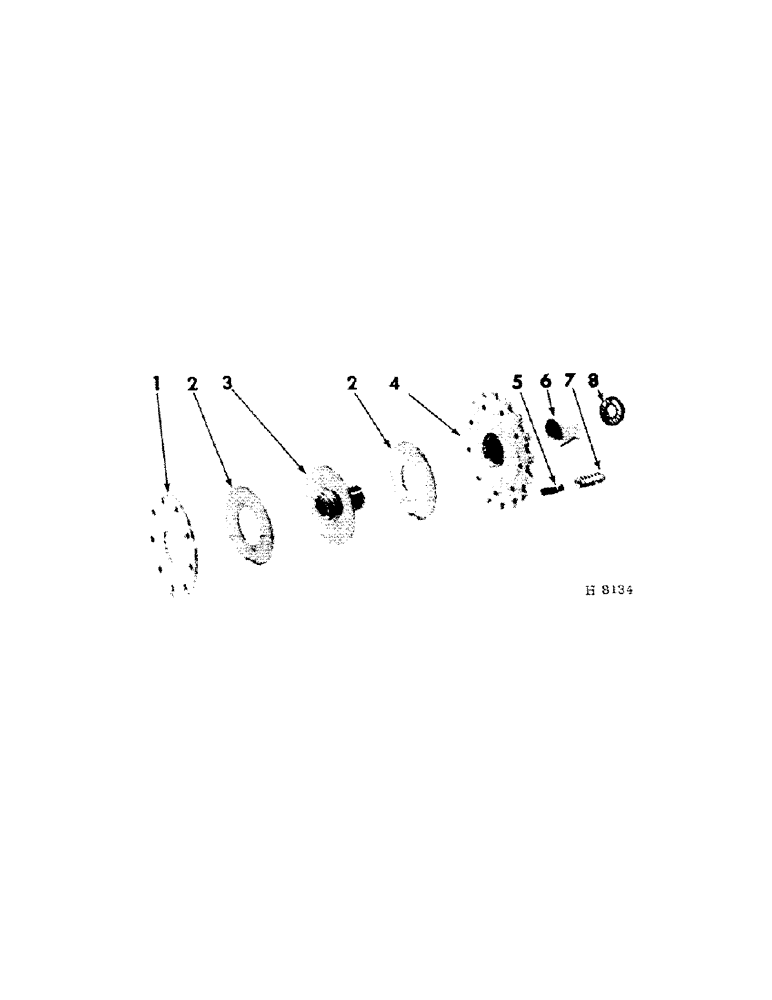

Запчасти Case IH 160 (G-09) - SIDE DRIVE SHAFT SLIP CLUTCH

1

608050R1

RETAINER

PLATE, clutch backing

1шт.

20293R1

BOLT W/NUT, 3/8 x 3-7/8" crg

9шт.

Q1505

WASHER

13/32 x 1 x 16 ga

9шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

9шт.

2

617619R1

FACING

clutch

2шт.

3

612744R1

CLUTCH PLATE

PLATE, clutch

1шт.

T14185

KEY, 1/4 x 1/4 x 2-3/4" straight 1/4" Sq x 2 3/4", Par

1шт.

4

608049R11

SPROCKET ASSY.

SPROCKET, 540 RPM 16T clutch includes bushing, 613752R1)

1шт.

4

608481R91

SPROCKET, 1000 RPM 32T clutch (includes bushing, 613752R1)

1шт.

5

608056R1

SPACER, slip clutch spring

9шт.

6

613752R1

BUSHING

clutch sprocket

1шт.

7

608055R1

SPRING, clutch pressure

9шт.

8

551771R1

WASHER, 1-5/32 x 2-1/2 x 16 ga

1шт.
