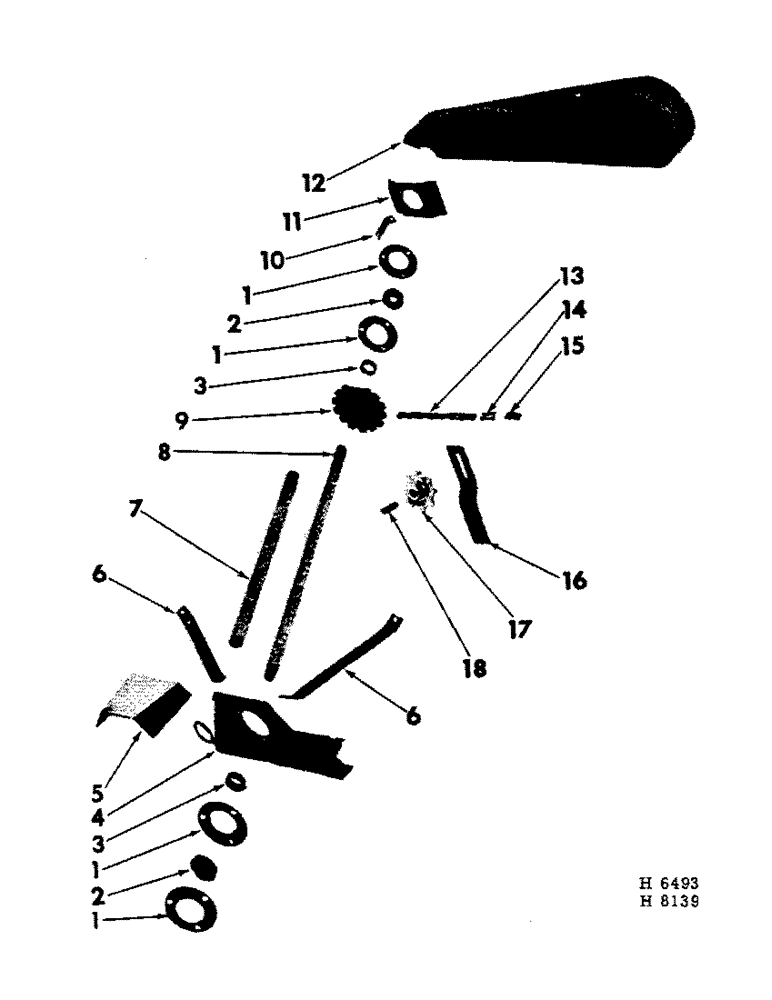

Запчасти Case IH 160 (G-08) - FRONT DRIVE SHAFT

1

565631R1

BEARING CAP,2.441" ID x 4.4375" OD x 0.34375"

RETAINER, shaft brg

4шт.

19417R1

BOLT

W/NUT, 3/8 x 1" cd-pltd crg

6шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

6шт.

2

455960R91

BALL BEARING

BEARING, shaft (Fafnir, Fischer or New Departure w/557115R11, collar)

2шт.

2

610536R91

BEARING

shaft (SKF use w/610537R11, collar)

2шт.

3

557115R11

COLLAR

COLLAR, brg locking (includes 115321, screw, (Fafnir, Fischer, New Departure w/455960R91, bearing)

2шт.

115321

SET SCREW,Hex Skt, 5/16"-18 x 5/16"

SCREW, 5/16 x 5/16" hdls cup-pt set

2шт.

3

610537R11

COLLAR

brg locking (includes 115321, screw, (SKF use w/610536R91, bearing)

2шт.

115321

SET SCREW,Hex Skt, 5/16"-18 x 5/16"

SCREW, 5/16 x 5/16" hdls cup-pt set

2шт.

4

613746R91

SUPPORT, front brg

1шт.

17448R1

BOLT (SPREADER)

BOLT W/NUT, 1/2 x 1-1/4" mach

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

5

607993R1

SHIELD

COVER, PTO shield

1шт.

623066R1

BOLT W/NUT, 3/8 x 1" cd-pltd mach

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

6

618259R1

STRAP, brg support LH

1шт.

6

618260R1

STRAP, brg support RH

1шт.

17420R1

BOLT,Hex, 3/8"-16 x 7/8", G2

W/NUT, 3/8 x 7/8" mach

2шт.

623066R1

BOLT W/NUT, 3/8 x 1" cd-pltd mach

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

7

611481R1

SHIELD, drive shaft

1шт.

8

611482R1

SHAFT, front drive

1шт.

9

608037R1

SPROCKET ASSY.

SPROCKET, 15T drive shaft (540 RPM)

1шт.

9

608476R91

SPROCKET, 16T drive shaft (1000 RPM)

1шт.

Q98

KEY, 1/4 x 1/4 x 1-7/8" straight 1/4" Sq x 1 7/8", Par

1шт.

576482R1

LOCK PIN,5/16" x 2", Slotted

1шт.

10

608038R1

SUPPORT, chain shield lower

1шт.

17437R1

BOLT W/NUT, 3/8 x 1-1/8" mach

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

11

617483R2

SUPPORT, rear brg

1шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

W/NUT, 3/8 x 1" cd-pltd mach

3шт.

17437R1

BOLT W/NUT, 3/8 x 1-1/8" mach

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

12

608034R91

SHIELD, drive chain

1шт.

19429R1

BOLT, 5/16 x 7/8" cd-pltd crg

2шт.

7500032

BUSHING

NUT, 5/16" cd-pltd wing

2шт.

619855R1

WASHER

11/32 x 3/4 x 16 ga cd-pltd

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

13

CHAIN, 540 RPM drive (1-1/2" extended pitch agricultural) (order 1-569090R91, 10 ft chain, reduce to 61 links, add 2-567009R91, offset links & 1-567007R91 connecting link)

1шт.

13

CHAIN, 1000 RPM drive (3/4" pitch steel roller) (order 1-611362R91, 10 ft chain, reduce to 115 links, add 1-612612R91, offset link & 1-611361R91, connecting link)

1шт.

14

611361R91

DRAG LINK

LINK, 3/4" pitch chain connecting

1шт.

1390D

PIN

C-PIN, 1/4 lb pkg

1шт.

14

567007R91

DRAG LINK

LINK, 1-1/2" pitch chain connecting

1шт.

1366D

PIN, SPLIT (COTTER)

C-PIN, 1/4 lb pkg

1шт.

15

612612R91

CHAIN LINK

LINK, 3/4" pitch chain offset

1шт.

1389D

PIN, offset link

1шт.

1390D

PIN

C-PIN, 1/4 lb pkg

1шт.

15

567009R91

CHAIN LINK

LINK, 1-1/2" pitch chain offset

2шт.

1365D

PIN, offset link

1шт.

1366D

PIN, SPLIT (COTTER)

C-PIN, 1/4 lb pkg

1шт.

16

613741R1

ARM, 540 RPM chain tightener

1шт.

16

608480R1

BRACKET, 1000 RPM chain tightener

1шт.

17426R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

W/NUT, 3/8 x 1" mach

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

17

3347SB

SPROCKET, 540 RPM chain tightener

1шт.

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

1шт.

15144R1

BOLT

W/NUT, 1/2 x 3" crg

1шт.

12026R1

WASHER

17/32 x 1-1/4 x 16 ga

2шт.

615168R1

WASHER

25/32 x 1-1/2 x 11 ga

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

17

610445R91

SPROCKET, 1000 RPM chain tightener (includes bearing, 666624R91)

1шт.

15112R1

BOLT (SPREADER)

BOLT W/NUT, 5/8 x 2-1/2" crg

1шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

18

612794R1

SPACER

BUSHING, 540 RPM tightener sprocket

1шт.

18

603038R1

SPACER, 1000 RPM tightener sprocket

1шт.

666624R91

BALL BEARING,16.26mm ID x 40mm OD x 18mm W

1000 RPM tightener sprocket (opt w/611050R91 or 614640R91 bearing)

1шт.

611050R91

BALL BEARING,0.638" ID x 1.5748" OD x 0.72"

1000 RPM tightener sprocket (opt w/614640R91 or 666624R91, bearing)

1шт.

614640R91

BEARING, 1000 RPM tightener sprocket (opt w/611050R91 or 666624R91, bearing)

1шт.
