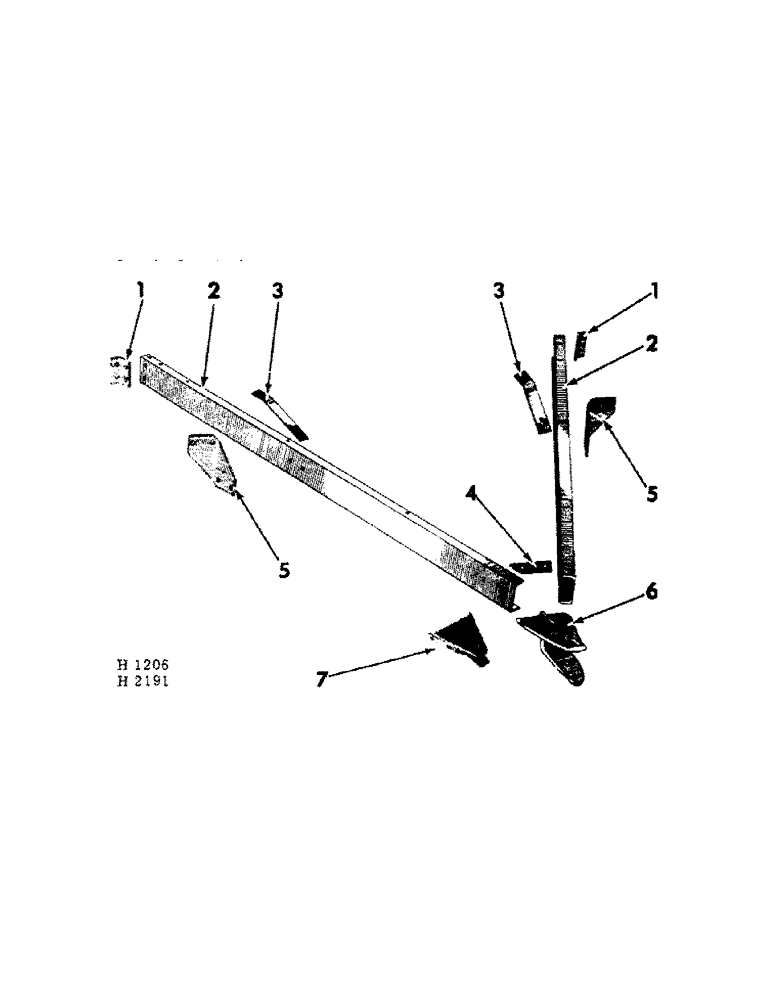

Запчасти Case IH 160 (G-06) - TRACTOR HITCH
№
Артикул
Название
Примечание
Количество
1
617455R1
BRACKET, hitch channel end
2шт.
17439R1
BOLT,Hex, 1/2" - 13 x 1 1/8", Gr 2
W/NUT, 1/2 x 1-1/8" mach
4шт.
103323
LOCK WASHER,1/2"
WASHER, LOCK, 1/2"
4шт.
2
611483R1
CHANNEL, hitch LH (note A)
1шт.
2
592791R1
CHANNEL, hitch LH (note B)
1шт.
2
611484R1
CHANNEL, hitch RH (note A)
1шт.
2
592792R1
CHANNEL, hitch RH (note B)
1шт.
17439R1
BOLT,Hex, 1/2" - 13 x 1 1/8", Gr 2
W/NUT, 1/2 x 1-1/8" mach
4шт.
17448R1
BOLT (SPREADER)
BOLT W/NUT, 1/2 x 1-1/4" mach
2шт.
88707
CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/4", Gr 5, Full Thd
BOLT, CARRIAGE, , w/nut Short NK, 1/2"-13 x 1 1/4", G5, Full Thd
2шт.
103323
LOCK WASHER,1/2"
WASHER, LOCK, 1/2"
8шт.
3
617510R1
PLATE, apron raising
2шт.
15557R1
PLOW BOLT,#3 Hd, 3/8" - 16 x 1 1/8", Gr 2
BOLT, PLOW, , w/Nut 3/8"-16 x 1 1/8", G2, Full Thd
2шт.
102635
NUT,3/8"-16, G5
4шт.
4
619585R1
PLATE, upper draw (note A)
1шт.
88707
CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/4", Gr 5, Full Thd
BOLT, CARRIAGE, , w/nut Short NK, 1/2"-13 x 1 1/4", G5, Full Thd
2шт.
103323
LOCK WASHER,1/2"
WASHER, LOCK, 1/2"
2шт.
5
617498R1
BRACKET, channel support LH
1шт.
5
617499R1
BRACKET, channel support RH
1шт.
17428R1
BOLT,Hex, 1/2"-13 x 1", G2, Full Thd
W/NUT, 1/2 x 1" mach
4шт.
17439R1
BOLT,Hex, 1/2" - 13 x 1 1/8", Gr 2
W/NUT, 1/2 x 1-1/8" mach
4шт.
103323
LOCK WASHER,1/2"
WASHER, LOCK, 1/2"
8шт.
6
617423R3
BRACKET, hitch (note A)
1шт.
17486R1
BOLT
W/NUT, 1/2 x 1-5/8" mach
2шт.
88530
CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 3/4", Gr 5
BOLT W/NUT, 1/2 x 1-3/4" crg
2шт.
E23193
PIN, 3/4 x 4-11/16" std-hd dld
1шт.
432-1624
COTTER PIN,1/4" x 1 1/2"
Pin, Split (Cotter), 1/4" x 1 1/2"
1шт.
103323
LOCK WASHER,1/2"
WASHER, LOCK, 1/2"
4шт.
7
592795R91
BRACKET, hitch (note B)
1шт.
17501R1
BOLT W/NUT, 3/4 x 1-3/4" mach
4шт.
650355R1
AXLE PIN
PIN, 3/4 x 3-3/4" std-hd dld
1шт.
432-1624
COTTER PIN,1/4" x 1 1/2"
Pin, Split (Cotter), 1/4" x 1 1/2"
1шт.
103326
LOCK WASHER,3/4"
WASHER, LOCK, 3/4"
4шт.
Выбрано товаров: 33
