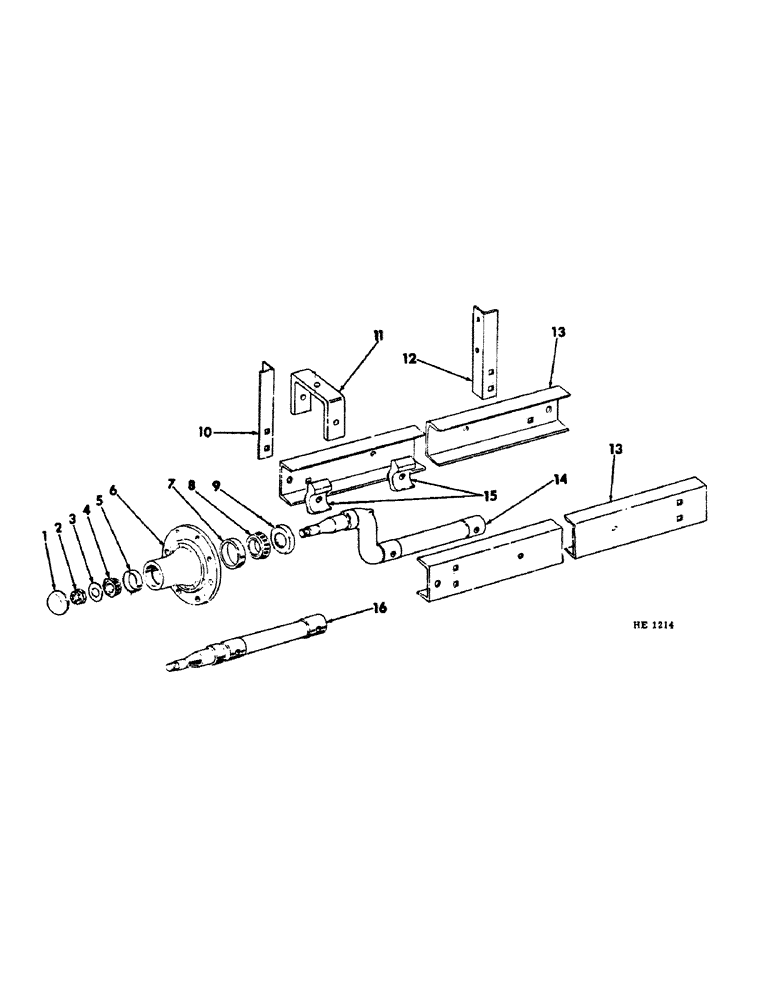

Запчасти Case IH 155 (J-06) - AXLE AND WHEEL HUB

1

612884R1

HUB CAP

CAP, wheel hub

2шт.

2

612634R1

NUT

7/8" - NF spindle

2шт.

3

619373R1

WASHER

29/32 x 2 x 7 ga spindle

2шт.

7

642955R91

BEARING ASSY,1.25" ID x 2.4409" OD x 0.75"

CONE, outer brg (opt to use 594162R91, cone)

2шт.

4

594162R91

CONE, outer brg (opt to use 642955R91, cone)

2шт.

New part number.

1шт.

5

642954R1

BEARING ASSY,1" ID x 2.441" OD x 0.8125"

CUP, outer brg (opt to use 594163R1, cup)

2шт.

5

594163R1

CUP, outer brg (opt to use 642954R1, cup)

2шт.

New part number.

1шт.

6

606374R1

HUB, wheel

2шт.

617918R1

BOLT,9/16" - 18 x 1 15/32"

wheel hub

16шт.

7

ST987

BEARING CUP

CUP, inner brg (opt to use 594160R1, cup)

2шт.

7

594160R1

BEARING, CUP,82.956 mm OD x 24.015 mm

CUP, inner brg (opt to use ST987, cup)

2шт.

New part number.

1шт.

8

ST2118

TAPERED BEARING,1.75" ID x 3.27" OD x 0.9375"

CONE, inner brg (opt to use 594159R91, cone)

2шт.

New part number.

1шт.

8

594159R91

CONE, inner brg (opt to use ST2118 cone)

2шт.

New part number.

1шт.

9

79667H

SEAL

wheel spindle oil

2шт.

New part number.

1шт.

10

619722R1

ANGLE, channel support LH

1шт.

180121

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

3/8 x 7/8"

2шт.

New part number.

1шт.

495967R1

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

BOLT, 3/8 x 1" crg

2шт.

New part number.

1шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

11

592800R1

CHANNEL, reinforcing (for use on machines equipped w/drop axle)

2шт.

12

619723R1

ANGLE, channel support RH

1шт.

180121

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

3/8 x 7/8"

2шт.

New part number.

1шт.

495967R1

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

BOLT, 3/8 x 1" crg

2шт.

New part number.

1шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

13

619724R11

CHANNEL, wheel axle

2шт.

598813R1

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1", Gr 5

BOLT, 1/2 x 1" crg

4шт.

New part number.

1шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1/2 x 1-1/4"

4шт.

New part number.

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

8шт.

120384

WASHER,1/2"

LOCK, 1/2"

8шт.

14

592799R11

AXLE, bent (includes 1-612634R1, nut; 1-103387, pin & 1-619373R1, washer) (for use on machines equipped w/drop axle)

2шт.

612634R1

NUT

7/8" - NF slt

2шт.

619373R1

WASHER

29/32 x 2 x 7 ga

2шт.

103387

COTTER PIN,1/8" x 1 1/2"

Pin, Split (Cotter), 1/8" x 1 1/2"

2шт.

15

617401R1

CLAMP, wheel spindle

8шт.

433163

BOLT,Hex, 1/2" - 13 x 5", Gr 5

1/2 x 5" (2 used on machines equipped w/drop axle - 4 used on straight axle)

1шт.

New part number.

1шт.

20546R1

SCREW,Hex, 1/2"-13 x 6", G5

BOLT, 1/2 x 6" (for drop axle only)

2шт.

New part number.

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

16

617436R11

SPINDLE, wheel axle (includes 1-612634R1, nut) (for use on machines equipped w/straight axle)

2шт.

103387

COTTER PIN,1/8" x 1 1/2"

Pin, Split (Cotter), 1/8" x 1 1/2"

2шт.
