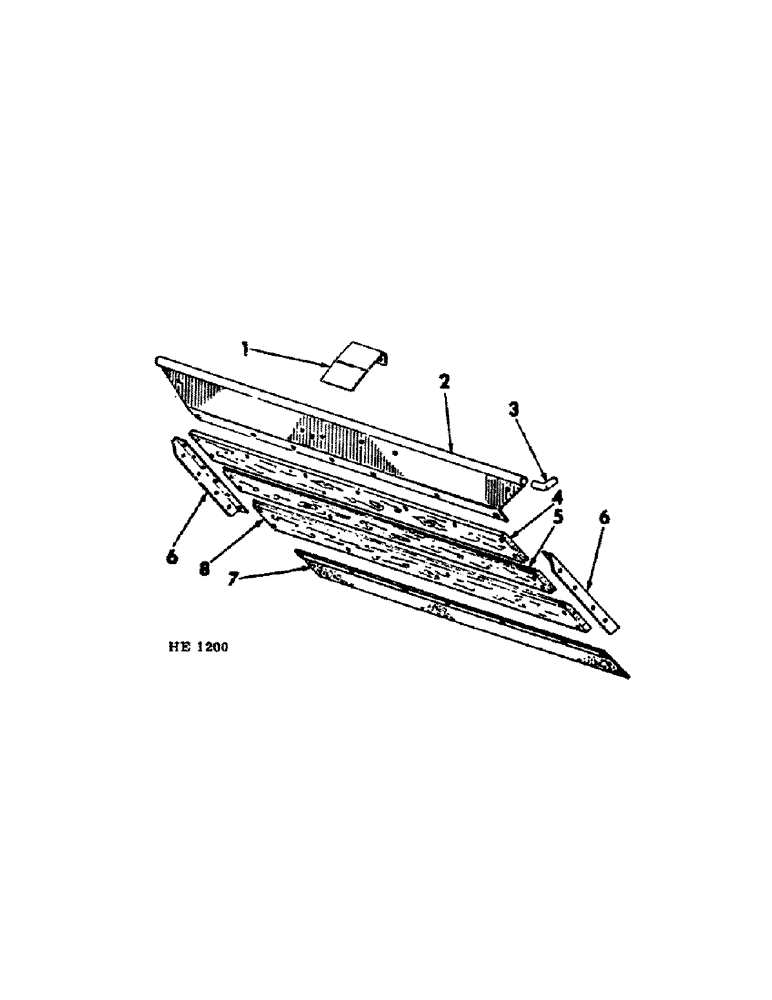

Запчасти Case IH 155 (J-05) - FRONT ENDGATE

1

609269R1

SHIELD, trip lever sector

1шт.

598802R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G5, Full Thd

BOLT, 5/16 x 3/4" crg

2шт.

New part number.

1шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

2

613766R2

SIDE, front top

1шт.

598809R1

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT, 3/8 x 3/4" crg

2шт.

New part number.

1шт.

634979R1

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/2"

BOLT, 3/8 x 1-1/2" crg

8шт.

New part number.

1шт.

120377

NUT,3/8" - 16, Gr 5

10шт.

619856R1

WASHER

13/32 x 1 x 16 ga

4шт.

New part number.

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

10шт.

3

612963R1

FILLER, front top side corner

2шт.

4

613784R1

BOARD, front end upper

1шт.

634979R1

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/2"

BOLT, 3/8 x 1-1/2" crg

4шт.

New part number.

1шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

5

613785R1

BOARD, front end center

1шт.

634979R1

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/2"

BOLT, 3/8 x 1-1/2" crg

4шт.

New part number.

1шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

6

617565R1

ANGLE, front end support LH

1шт.

6

617566R1

ANGLE, front end support RH

1шт.

598811R1

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 3/4", Gr 5

BOLT, 3/8 x 1-3/4" crg

6шт.

New part number.

1шт.

113-233

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

(RH) Hex, 3/8"-16 x 1 3/4", G5

1шт.

New part number.

1шт.

120377

NUT,3/8" - 16, Gr 5

7шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

7шт.

7

613191R11

CANVAS, front endgate

1шт.

598811R1

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 3/4", Gr 5

BOLT, 3/8 x 1-3/4" crg

2шт.

New part number.

1шт.

598812R1

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 2", Gr 5

BOLT, 3/8 x 2" crg

1шт.

New part number.

1шт.

120377

NUT,3/8" - 16, Gr 5

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

8

618400R1

BOARD, front end lower

1шт.

634979R1

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/2"

BOLT, 3/8 x 1-1/2" crg

2шт.

New part number.

1шт.

598811R1

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 3/4", Gr 5

BOLT, 3/8 x 1-3/4" crg

2шт.

New part number.

1шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.
