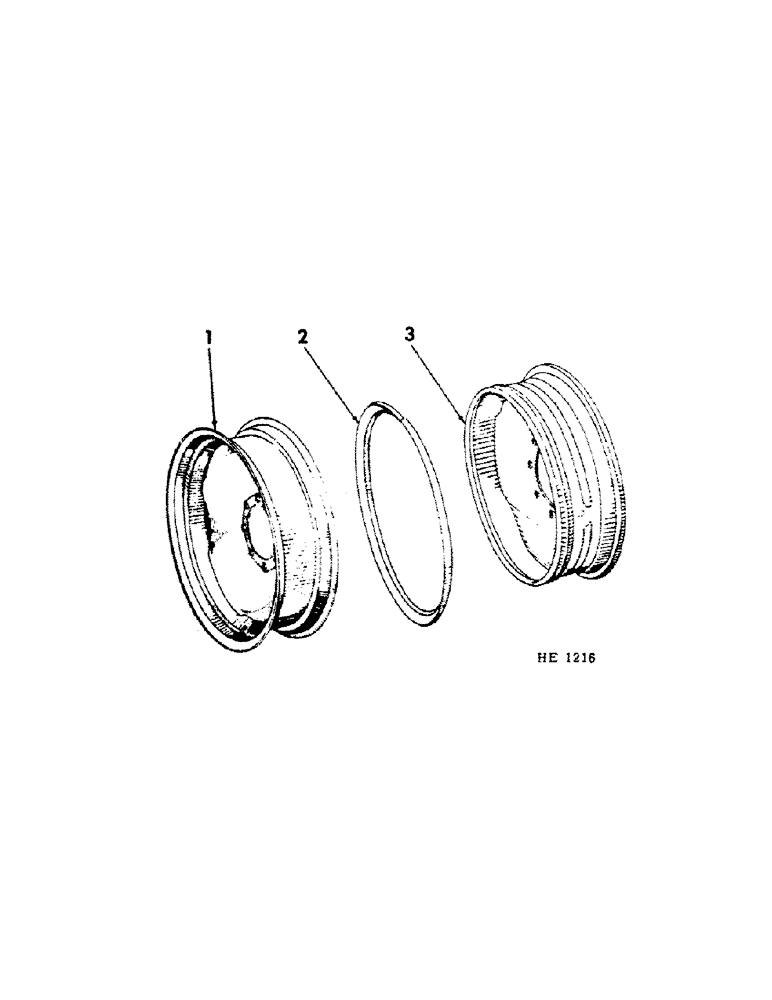

Запчасти Case IH 155 (J-05[A]) - TIRE, TUBE AND WHEEL

1

618982R91

WHEEL

(regular) (W7-20 DC up to & including 9.00 x 20" used truck tires)

2шт.

617918R1

BOLT,9/16" - 18 x 1 15/32"

WHEEL, bolt

16шт.

1

617623R91

WHEEL, (special) (W7-24 for 7.50 x 24" or 9.00 x 24" tires)

2шт.

617918R1

BOLT,9/16" - 18 x 1 15/32"

WHEEL, bolt

16шт.

1

608383R91

RIM

WHEEL, (special) (W8-20 DC, up to & including 10.00 x 20" used truck tires)

2шт.

617918R1

BOLT,9/16" - 18 x 1 15/32"

WHEEL, bolt

16шт.

2

617659R1

RING, wheel side (electric or Motor Wheel Co.)

2шт.

2

594156R1

FLANGE

RING, wheel side (V. Sankey & Son)

2шт.

3

617624R91

WHEEL, (includes 617659R1 or 594156R1, ring) (special) (for 20" truck tires up to and including 9.00 x 20"

2шт.

617918R1

BOLT,9/16" - 18 x 1 15/32"

WHEEL, bolt

16шт.

TIRE & TUBE, (7.50 x 24" 6 ply implement type)

2шт.

TIRE & TUBE (9.00 x 24" 6 ply implement type)

2шт.

TIRE & TUBE, (20" used truck)

2шт.
