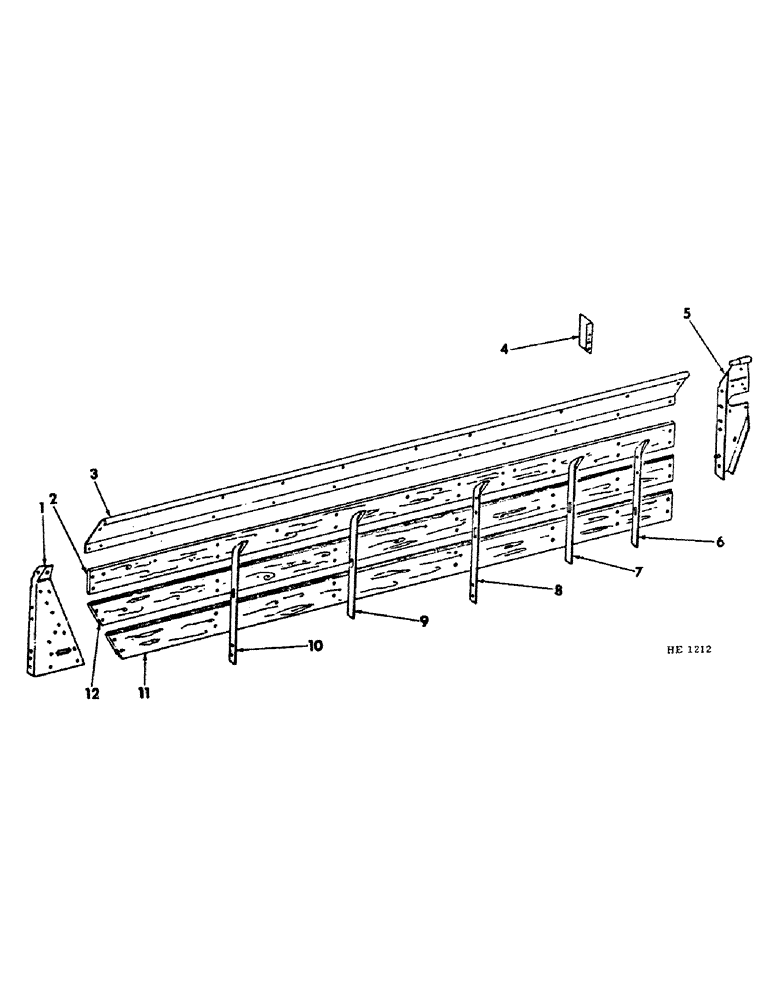

Запчасти Case IH 155 (J-03) - SPREADER BOX SIDES (LEFT SHOWN)

1

613764R2

SHEET, front corner LH

1шт.

1

613765R1

SHEET, front corner RH

1шт.

598809R1

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT, 3/8 x 3/4" crg

2шт.

New part number.

1шт.

18421R1

CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1", Gr 2

BOLT, CARRIAGE, Short NK, 7/16"-14 x 1", G5, Full Thd

4шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

271501

SOCKET

NUT, 7/16"

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

4шт.

2

618401R1

BOARD, side upper

2шт.

434-524

CARRIAGE BOLT,Short NK, 5/16"-18 x 1 1/2", G5

BOLT, 5/16 x 1-1/2" crg

10шт.

New part number.

1шт.

120376

NUT,5/16"-18, G5

10шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

10шт.

3

609260R2

SIDE, top LH

1шт.

3

609261R2

SIDE, top RH

1шт.

598802R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G5, Full Thd

BOLT, 5/16 x 3/4" crg

8шт.

New part number.

1шт.

434-524

CARRIAGE BOLT,Short NK, 5/16"-18 x 1 1/2", G5

BOLT, 5/16 x 1-1/2" crg

20шт.

New part number.

1шт.

598803R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 1", G5, Full Thd

BOLT, 5/16 x 1" crg (2-LH)

1шт.

New part number.

1шт.

598809R1

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT, 3/8 x 3/4" crg

1шт.

New part number.

1шт.

634979R1

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/2"

BOLT, 3/8 x 1-1/2" crg

1шт.

New part number.

1шт.

180126

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

3/8 x 1-1/2"

1шт.

134238R1

WASHER

11/32 x 1 x 16 ga

13шт.

New part number.

1шт.

22264R1

WASHER

13/32 x 1 x 7 ga

2шт.

New part number.

1шт.

120376

NUT,5/16"-18, G5

33шт.

120377

NUT,3/8" - 16, Gr 5

6шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

33шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

6шт.

4

820118C1

SUPPORT

safety reflective tape

1шт.

New part number.

1шт.

5

609264R21

SIDE, rear LH

1шт.

5

609265R21

SIDE, rear RH

1шт.

180173

BOLT,Hex, 1/2" - 13 x 1", Gr 5

5шт.

New part number.

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 5/16"

5шт.

120384

WASHER,1/2"

LOCK, 1/2"

5шт.

6

609256R1

ANGLE, 5th side LH

1шт.

6

609257R1

ANGLE, 5th side RH

1шт.

180121

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

3/8 x 7/8"

2шт.

New part number.

1шт.

495967R1

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

BOLT, 3/8 x 1" crg

2шт.

New part number.

1шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

7

609252R2

ANGLE, 4th side LH

1шт.

7

617549R2

ANGLE, 4th side RH

1шт.

180121

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

3/8 x 7/8"

2шт.

New part number.

1шт.

495967R1

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

BOLT, 3/8 x 1" crg

2шт.

New part number.

1шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

8

613776R2

ANGLE, 3rd side LH

1шт.

8

613777R2

ANGLE, 3rd side RH

1шт.

180121

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

3/8 x 7/8"

2шт.

New part number.

1шт.

495967R1

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

BOLT, 3/8 x 1" crg

2шт.

New part number.

1шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

9

617548R2

ANGLE, 2nd side LH

1шт.

9

617549R2

ANGLE, 2nd side RH

1шт.

180121

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

3/8 x 7/8"

2шт.

New part number.

1шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

10

617546R2

ANGLE, 1st side LH

1шт.

10

617547R2

ANGLE, 1st side RH

1шт.

180121

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

3/8 x 7/8"

2шт.

New part number.

1шт.

495967R1

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

BOLT, 3/8 x 1" crg

2шт.

New part number.

1шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

11

618405R1

BOARD, side lower LH

1шт.

11

618406R1

BOARD, side lower RH

1шт.

434-524

CARRIAGE BOLT,Short NK, 5/16"-18 x 1 1/2", G5

BOLT, 5/16 x 1-1/2" crg

20шт.

New part number.

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

20шт.

120376

NUT,5/16"-18, G5

20шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

634979R1

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/2"

BOLT, 3/8 x 1-1/2" crg

2шт.

New part number.

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, (RH) 3/8"

1шт.

12

618403R1

BOARD, side center

2шт.

434-524

CARRIAGE BOLT,Short NK, 5/16"-18 x 1 1/2", G5

BOLT, 5/16 x 1-3/8" crg

20шт.

New part number.

1шт.

634979R1

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/2"

BOLT, 3/8 x 1-1/2" crg

2шт.

New part number.

1шт.

120376

NUT,5/16"-18, G5

20шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

20шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.
