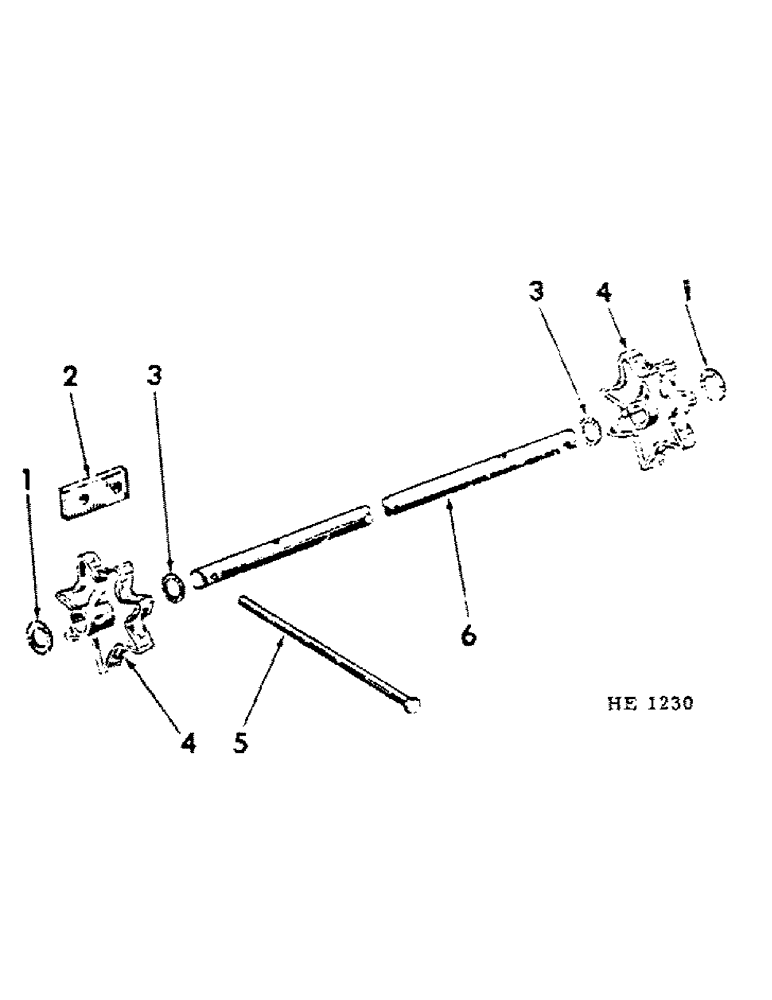

Запчасти Case IH 155 (J-27) - FRONT APRON SHAFT

1

M73125

SPACER,1" Pipe x 3/8"

apron shaft sprocket

2шт.

2

619568R1

PLATE, front apron shaft

2шт.

180177

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

1/2 x 1-1/2"

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

3

609836R1

WASHER

1-1/32 x 1-3/4 x 16 ga

6шт.

4

612976R1

SPROCKET ASSY.

SPROCKET, 7T apron shaft

2шт.

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

2шт.

5

619685R2

BOLT, apron chain tightener

2шт.

NLS

NO LONGER SERVICED

NUT, 7/16"

4шт.

6

613757R1

SHAFT, front apron

1шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

2шт.

609836R1

WASHER

1-1/32 x 1-3/4 x 16 ga

6шт.
