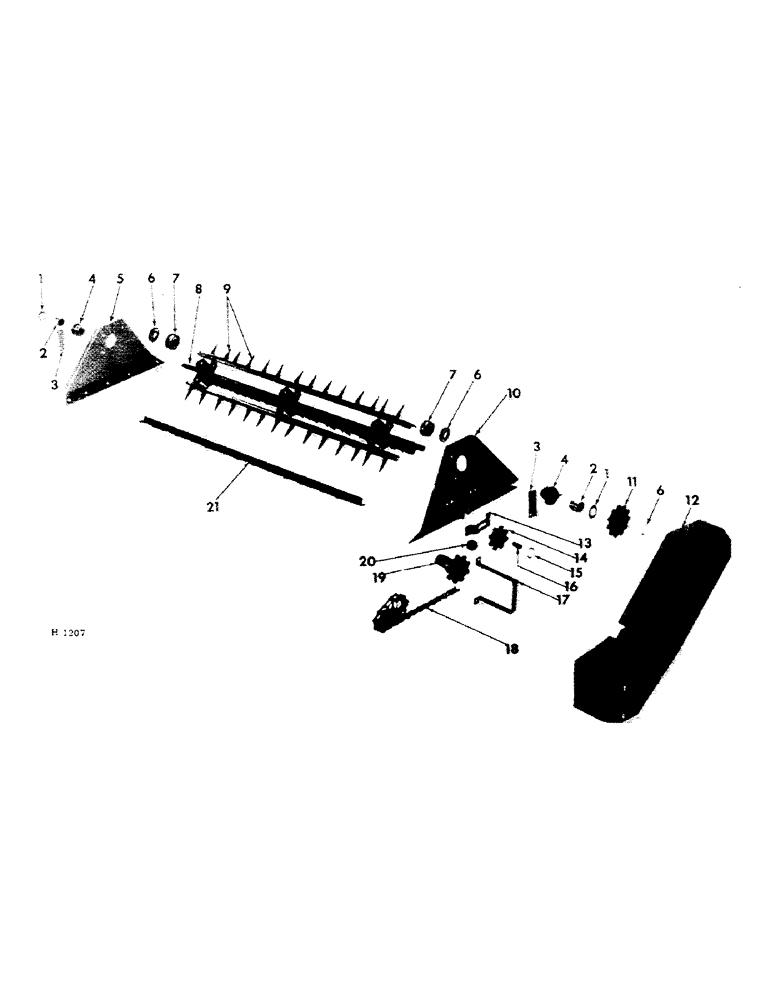

Запчасти Case IH 155 (J-24) - UPPER BEATER (SPECIAL)
№
Артикул
Название
Примечание
Количество
1
20802R1
WASHER
1-9/32 x 2-1/2 x 11 ga
2шт.
2
619671R91
ROLLER BEARING,31.75mm ID x 47.63mm OD x 50.8mm W
upr beater shaft
2шт.
3
614553R1
HOUSING
BAR, brg housing stop
2шт.
598809R1
CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5
BOLT, 3/8 x 3/4" crg
4шт.
New part number.
1шт.
120377
NUT,3/8" - 16, Gr 5
4шт.
120382
LOCK WASHER,Helical Spring, 3/8"
WASHER, LOCK, 3/8"
4шт.
4
614554R2
HOUSING
shaft brg
2шт.
109461
LUBE NIPPLE,1/8"-27 x .66 lg
NIPPLE, LUBE, 1/8"-27 x .66 lg
2шт.
5
592708R1
SECTION, beater mounting LH
1шт.
598802R1
CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G5, Full Thd
BOLT, 5/16 x 3/4" crg
2шт.
New part number.
1шт.
508803R1
BOLT, 5/16 x 1" crg
3шт.
New part number.
1шт.
120376
NUT,5/16"-18, G5
3шт.
80681
LOCK WASHER,5/16"
WASHER, LOCK, 5/16"
5шт.
6
608700R1
WASHER
1-9/32 x 2 x 16 ga
8шт.
7
612867R1
COLLAR
upr beater shaft
2шт.
613971R1
SCREW, 3/8 x 5/16" hdls knurled cup-pt set
4шт.
8
592711R11
SHAFT, upr beater
1шт.
32-1632
COTTER PIN,1/4" x 2"
PIN, SPLIT (COTTER), 1/4" x 2"
2шт.
9
617506R1
TOOTH
beater double
28шт.
106915
RIVET,Tr Hd, 5/16" x 7/8"
5/16 x 7/8" truss-hd
56шт.
10
592709R1
SECTION, beater mounting RH
1шт.
598802R1
CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G5, Full Thd
BOLT, 5/16 x 3/4" crg
3шт.
New part number.
1шт.
598803R1
CARRIAGE BOLT,Short NK, 5/16"-18 x 1", G5, Full Thd
BOLT, 5/16 x 1" crg
2шт.
New part number.
1шт.
NLS
NO LONGER SERVICED
NUT, 5/16"
5шт.
80681
LOCK WASHER,5/16"
WASHER, LOCK, 5/16"
5шт.
11
592712R1
SPROCKET, 11T beater driven
1шт.
12
592716R91
SHIELD, upr beater drive
1шт.
180077
BOLT,Hex, 5/16" - 18 x 3/4", Gr 5
5/16 x 3/4"
5шт.
New part number.
1шт.
619855R1
WASHER
11/32 x 3/4 x 16 ga
2шт.
80681
LOCK WASHER,5/16"
WASHER, LOCK, 5/16"
5шт.
13
614539R1
SUPPORT, chain tightener
1шт.
495967R1
CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd
BOLT, 3/8 x 1" crg
2шт.
New part number.
1шт.
120377
NUT,3/8" - 16, Gr 5
2шт.
120382
LOCK WASHER,Helical Spring, 3/8"
WASHER, LOCK, 3/8"
2шт.
14
3347SB
SPROCKET, chain tightener
1шт.
109461
LUBE NIPPLE,1/8"-27 x .66 lg
NIPPLE, LUBE, 1/8"-27 x .66 lg
1шт.
20181R1
BOLT, 1/2 x 3-1/4" type 1 crg
1шт.
120378
NUT,Hex, 1/2" - 13, Gr 5
NUT, 1/2"-13, G5
1шт.
178374R1
WASHER
17/32 x 1-1/4 x 16 ga
3шт.
New part number.
1шт.
120384
WASHER,1/2"
LOCK, 1/2"
1шт.
15
178374R1
WASHER
17/32 x 1-1/4 x 16 ga
3шт.
New part number.
1шт.
16
592714R1
SPACER, tightener sprocket inner
1шт.
17
592720R11
SUPPORT, drive shield
1шт.
495967R1
CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd
BOLT, 3/8 x 1" crg
2шт.
New part number.
1шт.
120377
NUT,3/8" - 16, Gr 5
2шт.
20803R1
WASHER
13/32 x 1 x 11 ga
2шт.
120382
LOCK WASHER,Helical Spring, 3/8"
WASHER, LOCK, 3/8"
2шт.
18
CHAIN, beater drive 1-1/2" pitch agricultural (for service order 1 - 569090R91, 10 ft. chain, reduce to 37 links, add 1 - 567009R91, offset link & 1 - 567007R91, connecting link
1шт.
19
592715R1
SPROCKET ASSY.
SPROCKET, 9T upr beater drive
1шт.
20
312565R1
BUSHING
SPACER, tightener sprocket
1шт.
21
617639R91
ANGLE, beater no. 1 (Includes 14-106915, rivets & 7-617506R1, teeth)
1шт.
180121
BOLT,Hex, 3/8" - 16 x 7/8", Gr 5
3/8 x 7/8"
12шт.
120377
NUT,3/8" - 16, Gr 5
12шт.
120382
LOCK WASHER,Helical Spring, 3/8"
WASHER, LOCK, 3/8"
12шт.
21
617640R91
ANGLE, beater no. 2 (includes 14-106915, rivets & 7-617506R1, teeth)
1шт.
180121
BOLT,Hex, 3/8" - 16 x 7/8", Gr 5
3/8 x 7/8"
12шт.
120377
NUT,3/8" - 16, Gr 5
12шт.
120382
LOCK WASHER,Helical Spring, 3/8"
WASHER, LOCK, 3/8"
12шт.
21
617641R91
ANGLE, beater no. 3 (includes 14-106915, rivets & 7-617506R1, teeth)
1шт.
180121
BOLT,Hex, 3/8" - 16 x 7/8", Gr 5
3/8 x 7/8"
12шт.
120377
NUT,3/8" - 16, Gr 5
12шт.
120382
LOCK WASHER,Helical Spring, 3/8"
WASHER, LOCK, 3/8"
12шт.
21
617642R91
ANGLE, beater no. 4 (includes 14-106915, rivets & 7-617506R1, teeth)
1шт.
180121
BOLT,Hex, 3/8" - 16 x 7/8", Gr 5
3/8 x 7/8"
12шт.
120377
NUT,3/8" - 16, Gr 5
12шт.
120382
LOCK WASHER,Helical Spring, 3/8"
WASHER, LOCK, 3/8"
12шт.
Выбрано товаров: 78
