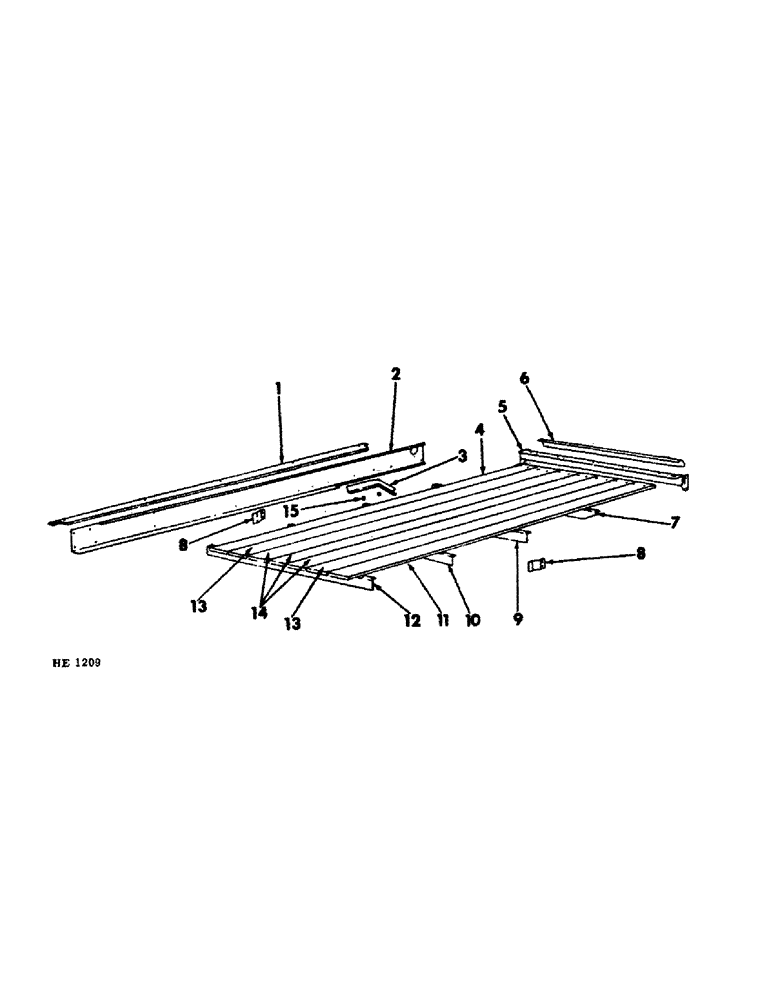

Запчасти Case IH 155 (J-02) - SPREADER BOX BOTTOM

1

613782R2

BOARD, bottom outer LH

1шт.

1

613783R2

BOARD, bottom outer RH

1шт.

434-524

CARRIAGE BOLT,Short NK, 5/16"-18 x 1 1/2", G5

BOLT, 5/16 x 1-1/2" crg

10шт.

New part number.

1шт.

120376

NUT,5/16"-18, G5

10шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

10шт.

2

613773R21

CHANNEL, bottom side LH

1шт.

2

613774R21

CHANNEL, bottom side RH

1шт.

3

616385R1

ANGLE, apron raising LH

1шт.

612714R1

SPACER

raising angle

4шт.

19021R1

CARRIAGE BOLT,#3, 3/8" - 16 x 1 1/2", Gr 2

BOLT, 3/8 x 1-1/2" no. 3 plow

4шт.

New part number.

1шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

3

616386R1

ANGLE, apron raising RH

1шт.

612714R1

SPACER

raising angle

4шт.

19021R1

CARRIAGE BOLT,#3, 3/8" - 16 x 1 1/2", Gr 2

BOLT, 3/8 x 1-1/2" no. 3 plow

4шт.

New part number.

1шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

4

617584R1

BOARD, bottom groove RH

1шт.

434-524

CARRIAGE BOLT,Short NK, 5/16"-18 x 1 1/2", G5

BOLT, 5/16 x 1-1/2" crg

10шт.

New part number.

1шт.

120376

NUT,5/16"-18, G5

10шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

10шт.

5

609227R11

ANGLE, 5th bottom support

1шт.

485734R1

CARRIAGE BOLT,Short NK, 1/2"-13 x 1 1/4", G5, Full Thd

BOLT, 1/2 x 1-1/4" crg

2шт.

New part number.

1шт.

180179

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 5

1/2 x 1-3/4"

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

597670R1

NUT

1/2"

4шт.

New part number.

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

6

617519R1

SHIELD

bottom board rear

1шт.

598804R1

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1 1/4", Gr 5

BOLT, 5/16 x 1-1/4" crg

9шт.

New part number.

1шт.

134238R1

WASHER

11/32 x 1 x 16 ga

9шт.

New part number.

1шт.

120376

NUT,5/16"-18, G5

9шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

9шт.

7

617559R1

ANGLE, 4th bottom support

1шт.

485734R1

CARRIAGE BOLT,Short NK, 1/2"-13 x 1 1/4", G5, Full Thd

BOLT, 1/2 x 1/4" crg

2шт.

New part number.

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

8

617493R2

GUIDE, apron chain

2шт.

550796R1

CARRIAGE BOLT,3/8" - 16 x 1 1/4", Grade 5

BOLT, 3/8 x 1-1/4" crg

2шт.

New part number.

1шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

9

617558R1

ANGLE, 3rd bottom support

1шт.

485734R1

CARRIAGE BOLT,Short NK, 1/2"-13 x 1 1/4", G5, Full Thd

BOLT, 1/2 x 1-1/4" crg

2шт.

New part number.

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

10

617557R1

ANGLE, 2nd bottom support

1шт.

485734R1

CARRIAGE BOLT,Short NK, 1/2"-13 x 1 1/4", G5, Full Thd

BOLT, 1/2 x 1-1/4" crg

2шт.

New part number.

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

11

617585R1

BOARD, bottom tongue LH

1шт.

434-524

CARRIAGE BOLT,Short NK, 5/16"-18 x 1 1/2", G5

BOLT, 5/16 x 1-1/2" crg

10шт.

New part number.

1шт.

120376

NUT,5/16"-18, G5

10шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

10шт.

12

617556R1

ANGLE, 1st bottom support

1шт.

485734R1

CARRIAGE BOLT,Short NK, 1/2"-13 x 1 1/4", G5, Full Thd

BOLT, 1/2 x 1-1/4" crg

2шт.

New part number.

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

13

617586R1

BOARD, bottom tongue & groove

2шт.

434-524

CARRIAGE BOLT,Short NK, 5/16"-18 x 1 1/2", G5

BOLT, 5/16 x 1-1/2" crg

20шт.

New part number.

1шт.

120376

NUT,5/16"-18, G5

20шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

20шт.

14

617587R1

BOARD, bottom center

3шт.

434-524

CARRIAGE BOLT,Short NK, 5/16"-18 x 1 1/2", G5

BOLT, 5/16 x 1-1/2" crg

30шт.

New part number.

1шт.

120376

NUT,5/16"-18, G5

30шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

30шт.

15

612714R1

SPACER

apron raising angle

4шт.
