Запчасти Case IH 155 (J-22) - WIDESPREAD BEATER CLUTCH

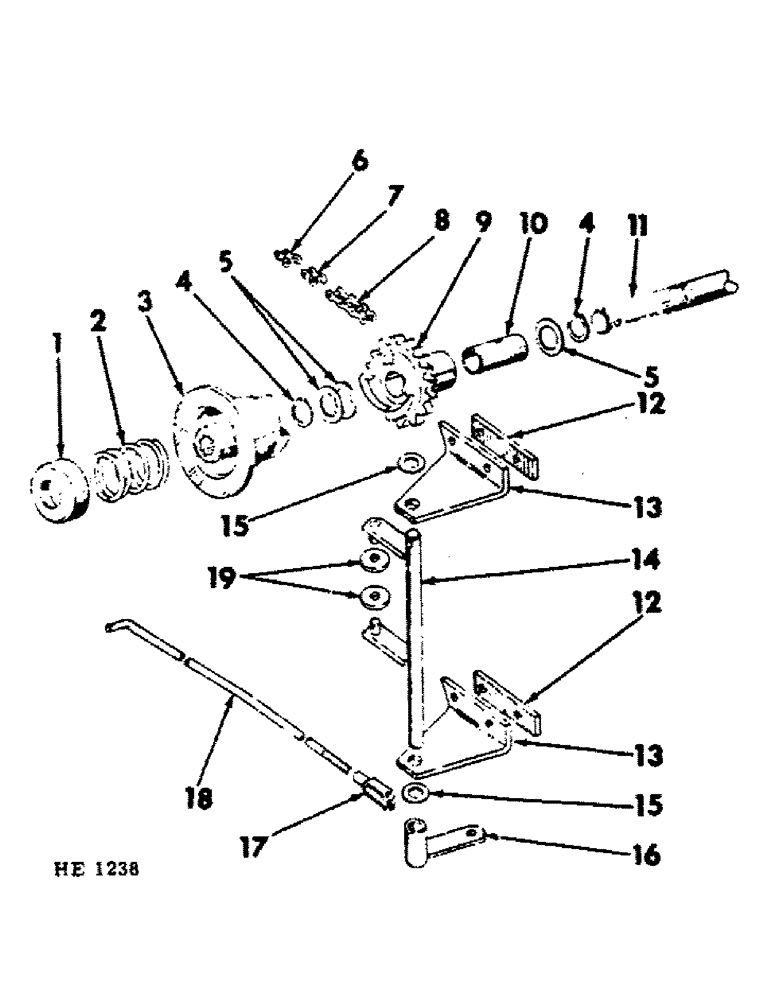

Схема запчастей Case IH 155 - (J-22) - WIDESPREAD BEATER CLUTCH

Артикул

Название

Примечание

Количество

1

614547R1

WASHER

SUPPORT, clutch throw-out spg

1шт.

19525R1

PIN,3/8" x 2 3/4", Coiled

1шт.

2

369A

SPRING

clutch throw-out

1шт.

3

609055R1

CAM

PLATE, splined clutch

1шт.

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

1шт.

4

609053R1

SNAP RING,#125, Ext

Ring, Snap, , clutch sprocket #125, Ext

2шт.

5

608700R1

WASHER

1-9/32 x 2 x 16 ga (as req'd)

1шт.

6

612612R91

CHAIN LINK

LINK, chain offset

1шт.

1389D

PIN, offset link

1шт.

1390D

PIN

C-PIN, 1/4 lb pkg

1шт.

7

611361R91

DRAG LINK

LINK, chain connecting

1шт.

1390D

PIN

C-PIN, 1/4 lb pkg

1шт.

8

CHAIN, 3/4" pitch steel roller, widespread drive (for service order 1-611362R91, 10 ft chain, reduce to 61 links, add 1-611361R91, connecting link & 1-612612R91, offset link)

1шт.

9

609311R21

SPROCKET ASSY.

SPROCKET, 18T beater driven (includes 1-608692R1, bushing)

1шт.

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

1шт.

10

608692R1

BUSHING

beater driven sprocket (for use on machine built March, 1971 season & since)

1шт.

11

SHAFT, widespread beater (for component parts of this assembly refer to "widespread" in section H of this catalog)

1шт.

12

609314R1

BAR, shaft support filler

2шт.

13

609313R1

SUPPORT, clutch throw-out arm

2шт.

495967R1

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

BOLT, 3/8 x 1" crg

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

14

609315R91

ARM

clutch throw-out

1шт.

178375R1

WASHER

25/32 x 1-1/4 x 16 ga

2шт.

432-1220

COTTER PIN,3/16" x 1 1/4"

Pin, Split (Cotter), 3/16" x 1 1/4"

2шт.

15

178375R1

WASHER

25/32 x 1-1/4 x 16 ga

2шт.

16

609318R91

ARM, clutch throw-out pivot

1шт.

19723R1

PIN,5/16" x 1 1/8", Coiled

1шт.

17

104037

CLEVIS

clutch throw-out rod

1шт.

Q876

AXLE PIN

PIN, 5/16 x 1-1/8" std-hd-dld

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

18

609328R1

ROD, clutch throw-out

1шт.

134238

WASHER

11/32 x 1 x 16 ga

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

19

617439R1

WASHER

ROLLER, throw-out arm stud

2шт.

178374R1

WASHER

17/32 x 1-1/4 x 16 ga

2шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

2шт.

Выбрано товаров: 37
