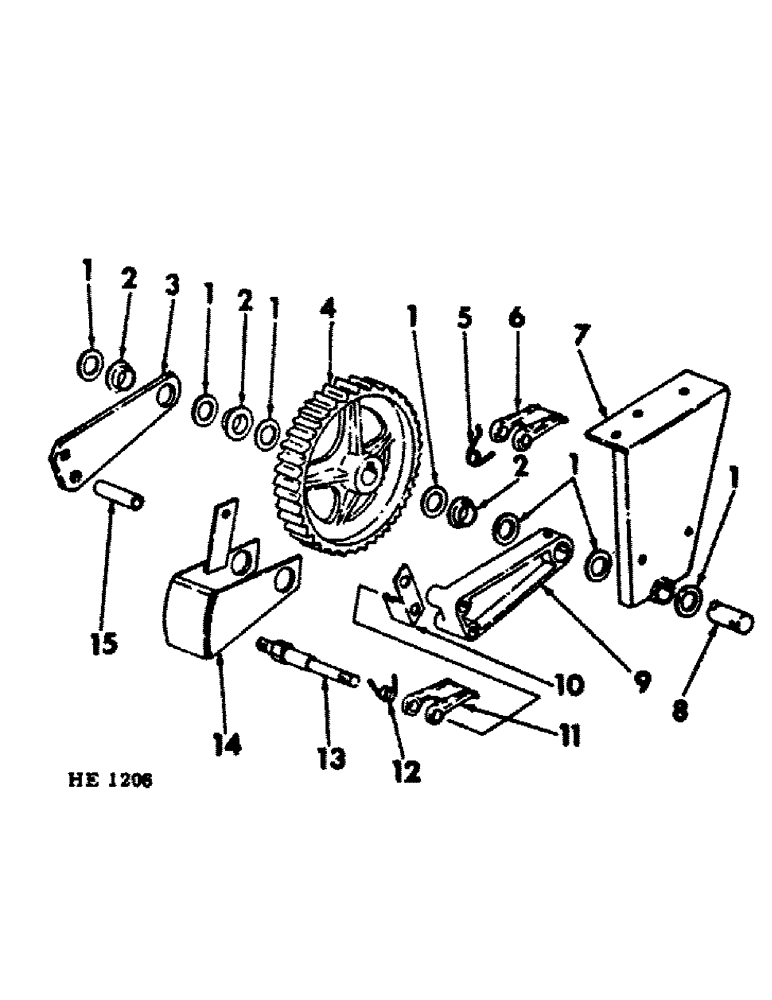

Запчасти Case IH 155 (J-20) - RATCHET WHEEL

1

608700R1

WASHER

1-9/32 x 2 x 16 ga shaft

7шт.

New part number.

1шт.

2

617419R1

BUSHING

sector & rocker support

3шт.

3

617470R1

SUPPORT, ratchet rocker arm

1шт.

617448R1

BUSHING, rocker arm

1шт.

15745R1

PLOW BOLT,#3, 1/2" - 13 x 5 3/4", Gr 2

BOLT, 1/2 x 5-3/4 no. 3 plow

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

4

617415R1

WHEEL

90T ratchet (customer may wish to replace ratchet wheel w/new shearbolt type ratchet wheel. Order 1-599866R91, ratchet wheel service package)

1шт.

596563R1

KEY

1/4 x 1/4 x 2-1/2" straight

1шт.

New part number.

1шт.

4

599866R91

1шт.

New part number.

1шт.

5

612872R1

SPRING

holding pawl

1шт.

413-432

1/4 x 2"

1шт.

New part number.

1шт.

124818

JAM NUT,Hex, 1/4" - 20, Gr 5

2шт.

New part number.

1шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

1шт.

6

617431R1

PAWL

ratchet holding

1шт.

21782R1

WASHER

21/32 x 1-1/2 x 16 ga

2шт.

New part number.

1шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

1шт.

7

609283R92

SUPPORT, rear apron shaft LH

1шт.

271203

BRACKET

LUB-FITTING, 5/16"

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8 x 7/8"

1шт.

New part number.

1шт.

180173

BOLT,Hex, 1/2" - 13 x 1", Gr 5

1шт.

New part number.

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

1шт.

551177R1

WASHER

21/32 x 1-1/4 x 16 ga

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

8

619547R1

SHAFT

rear apron (for component parts refer to "rear apron shaft" in section H of this catalog)

1шт.

9

617422R1

ARM, ratchet pawl

1шт.

80711

LUBE NIPPLE,65 Degree, 1/8" NPT x 7/8" lg

LUB-FITTING, 1/8" - 65 deg. elbow

1шт.

15745R1

PLOW BOLT,#3, 1/2" - 13 x 5 3/4", Gr 2

BOLT, 1/2 x 5-3/4" no. 3 plow

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

10

617492R1

HOLDER, pawl spg

1шт.

11

617431R1

PAWL

ratchet wheel

1шт.

12

5291SA

SPRING

ratchet pawl

1шт.

13

617513R1

STUD, ratchet arm

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

14

617651R91

SECTOR, feed control

1шт.

15

617448R1

BUSHING, rocker arm support

1шт.
