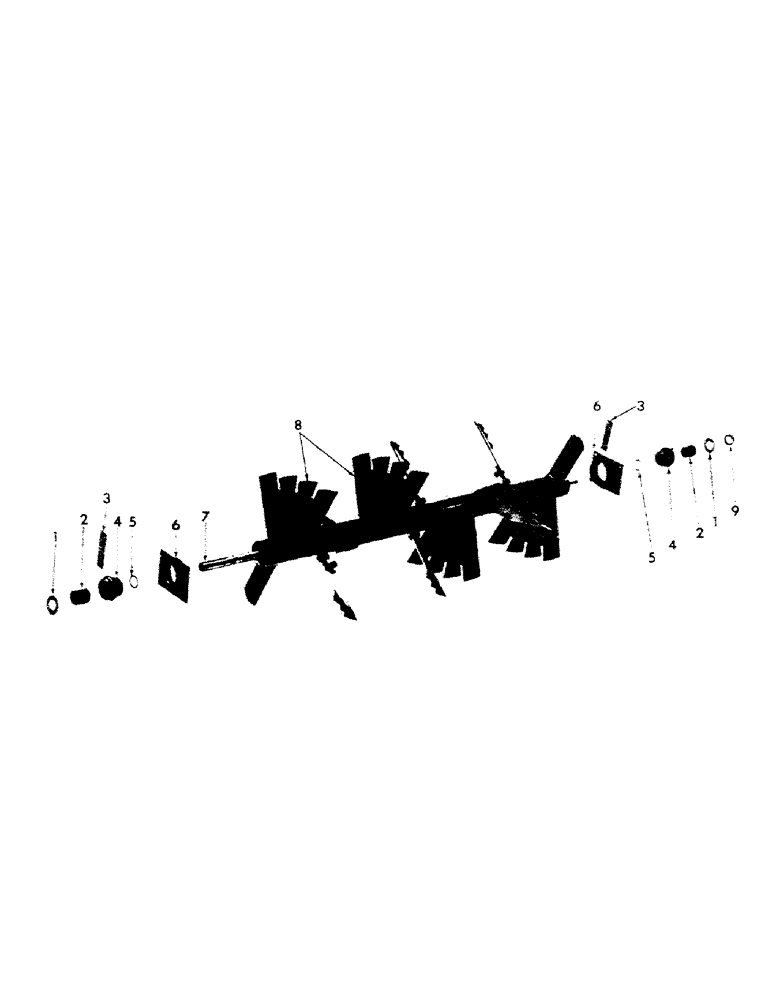

Запчасти Case IH 155 (J-19) - WIDESPREAD BEATER

1

21749R1

WASHER

1-9/32 x 2-1/2 x 16 ga

4шт.

2

619671R91

ROLLER BEARING,31.75mm ID x 47.63mm OD x 50.8mm W

beater shaft

2шт.

3

614553R1

HOUSING

BAR, brg housing stop

2шт.

550796R1

CARRIAGE BOLT,3/8" - 16 x 1 1/4", Grade 5

BOLT, 3/8 x 1-1/4"

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

4

614554R2

HOUSING

beater shaft brg

2шт.

80717

LUBE NIPPLE,45 Degree, 1/8" NPT x 7/8" lg

LUB-FITTING, 1/8" 45 degree elbow

2шт.

5

608700R1

WASHER

1-9/32 x 2 x 16 ga

1шт.

6

609116R11

SUPPORT

brg housing

2шт.

495967R1

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

BOLT, 3/8 x 1" crg

4шт.

550796R1

CARRIAGE BOLT,3/8" - 16 x 1 1/4", Grade 5

BOLT, 3/8 x 1-1/4" crg

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

8шт.

7

609304R95

BEATER, widespread

1шт.

8

609309R2

ASSEMBLY

SECTION, beater LH

5шт.

8

609310R2

ASSEMBLY

SECTION, beater RH

5шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1/2 x 1-1/4"

20шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

20шт.

120384

WASHER,1/2"

LOCK, 1/2"

20шт.

9

612866R1

BUSHING

COLLAR, beater shaft RH

1шт.

19479R1

PIN,1/4" x 2", Coiled

1шт.
