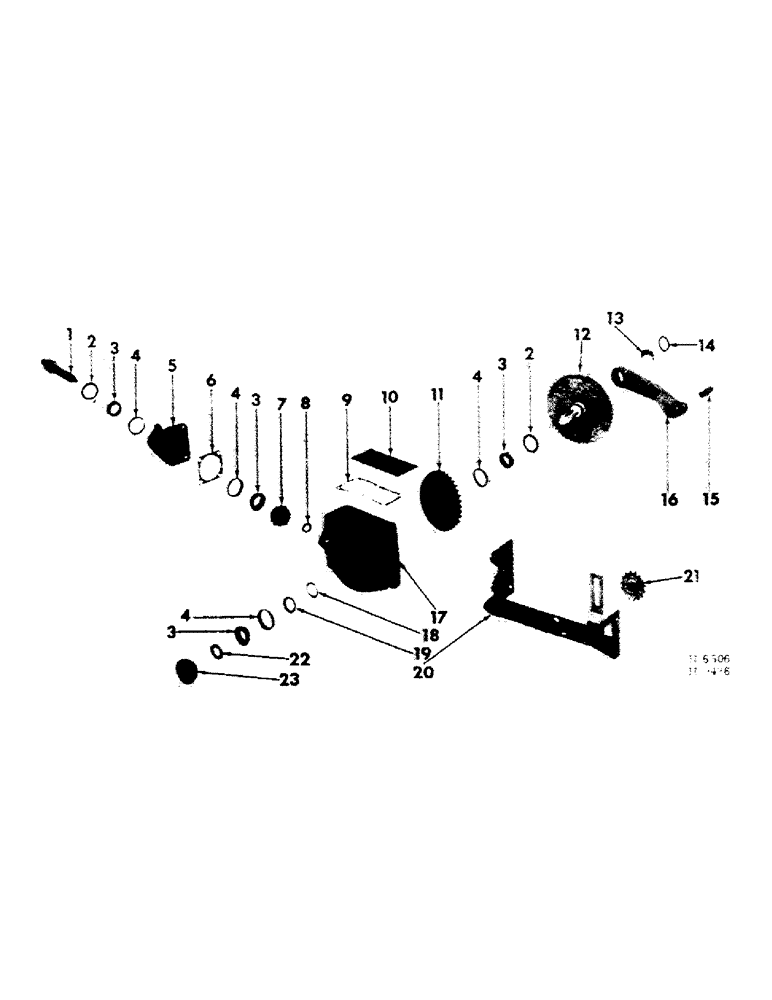

Запчасти Case IH 155 (J-18) - MAIN DRIVE GEAR CASE

609300R91

CASE, main drive gear (consists of all parts listed, unless otherwise noted)

1шт.

1

612750R1

SHAFT, gear case bevel pinion

1шт.

612887R1

WASHER

21/32 x 1-1/4 x 11 ga

1шт.

125158

SLOTTED NUT,5/8"-11, G5

NUT, 5/8" hex-sltd

1шт.

New part number.

1шт.

103385

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

1шт.

2

612964R91

SEAL

bevel pinion & gear oil

2шт.

3

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

CONE, gear case bearing

4шт.

4

651817R1

BEARING CUP

CUP, gear case brg cone

4шт.

4

651817R1GV

BEARING CUP

Value, Bearing Cup

4шт.

5

612734R1

HOUSING

bevel gear

1шт.

180123

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5, Full Thd

3/8 x 1-1/8"

1шт.

New part number.

1шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8 x 1-1/4"

3шт.

New part number.

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

6

612856R1

GASKET

SHIM, bevel gear housing

1шт.

7

612883R2

GEAR

PINION, main drive bevel

1шт.

8

612887R1

WASHER

pinion

1шт.

9

612881R1

GASKET

gear case cover

1шт.

10

612802R1

COVER, gear case

1шт.

180078

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

5/16 x 7/8"

6шт.

New part number.

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

11

612882R2

GEAR, main drive bevel

1шт.

609379R1

KEY, 5/16 x 5/16 x 2" straight

1шт.

12

609301R91

SPROCKET ASSY.

SPROCKET, widespread beater drive

1шт.

612634R1

NUT

7/8" hex-sltd

1шт.

120238

JAM NUT,Jam, 1/2"-13, G5

1/2" jam

1шт.

New part number.

1шт.

178373R1

WASHER

17/32 x 1 x 16 gallon

1шт.

New part number.

1шт.

103387

COTTER PIN,1/8" x 1 1/2"

Pin, Split (Cotter), 1/8" x 1 1/2"

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

13

617617R91

BALL BEARING,15.86mm ID x 49.21mm OD x 20.65mm W

BEARING, rocker arm

1шт.

14

617618R1

SNAP RING,#193, 2.025, Int, Spiral

RING, rocker arm retaining

1шт.

Not part of field conversion package.

1шт.

15

617448R1

BUSHING, rocker arm

1шт.

Not part of field conversion package.

1шт.

16

617421R1

ARM, ratchet rocker

1шт.

Not part of field conversion package.

1шт.

80711

LUBE NIPPLE,65 Degree, 1/8" NPT x 7/8" lg

LUB-FITTING, 1/8" - 65 degree

1шт.

Not part of field conversion package.

1шт.

17

612735R21

CASE, gear (includes 3-444574, plugs)

1шт.

444574

PLUG,Sq Hd, 1/4"-18 NPTF

1/4" sq-hd pipe

3шт.

New part number.

1шт.

180179

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 5

1/2 x 1-5/8"

3шт.

New part number.

1шт.

178374R1

WASHER

17/32 x 7/8 x 16 ga

2шт.

New part number.

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

3шт.

120384

WASHER,1/2"

LOCK, 1/2"

3шт.

18

612857R1

SHIM

bevel gear

1шт.

19

612763R1

WASHER, bevel gear

1шт.

20

609295R91

SUPPORT, gear case

1шт.

Not part of field conversion package.

1шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8 x 1-1/4"

1шт.

New part number.

1шт.

Not part of field conversion package.

1шт.

180173

BOLT,Hex, 1/2" - 13 x 1", Gr 5

1шт.

Not part of field conversion package.

1шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1/2 x 1-1/4"

2шт.

Not part of field conversion package.

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

Not part of field conversion package.

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

3шт.

Not part of field conversion package.

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

Not part of field conversion package.

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

3шт.

Not part of field conversion package.

1шт.

21

582389R91

DRIVE SPROCKET

SPROCKET, beater chain tightener

1шт.

Not part of field conversion package.

1шт.

426-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 8

5/8 x 2-1/2"

1шт.

Not part of field conversion package.

1шт.

589068R1

WASHER

21/32 x 1-1/4 x 11 ga

3шт.

Not part of field conversion package.

1шт.

21782R1

WASHER

21/32 x 1-1/2 x 16 ga

1шт.

Not part of field conversion package.

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

Not part of field conversion package.

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8"

1шт.

Not part of field conversion package.

1шт.

22

612889R1

WASHER

sprocket gear shaft

1шт.

23

612884R1

HUB CAP

CAP, gear case bevel gear

1шт.
