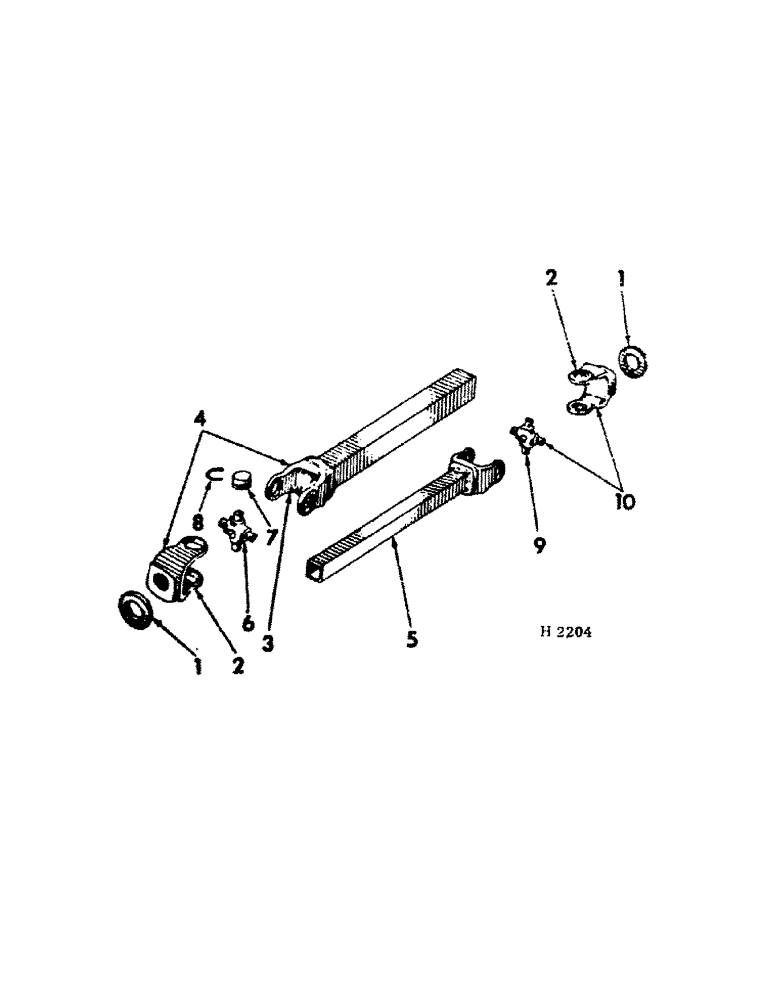

Запчасти Case IH 155 (J-17[A]) - SIDE DRIVE UNIVERSAL ASSEMBLY (HAYES STEEL)

1

B12219

WASHER

drive shaft knuckle

2шт.

2

613466R1

YOKE

front & rear threaded

2шт.

3

613467R91

YOKE & TUBE, front

1шт.

4

613464R91

JOINT, front half composed of: (1) cross 613471R91, (1) yoke 613466R1, (1) yoke & tube 613467R91 14.812, 2.5" Length

1шт.

5

613472R91

YOKE

& SHAFT, rear

1шт.

6

CROSS, (order 1-613471R91, cross) (NSS)

2шт.

19769R91

LUB-FITTING, 1/4" - 65 degree elbow

2шт.

7

613470R11

BEARING, center cross

8шт.

8

613469R1

RING

center cross snap

8шт.

9

613471R91

SPIDER ASSY.

CROSS, center composed of: (4) bearing 613470R11, (1) cross (NSS) (4) ring 613469R1

1шт.

10

613465R91

JOINT, rear half composed of: (1) cross 613471R91, (1) yoke 613466R1, (1) yoke & shaft 613472R91

1шт.
