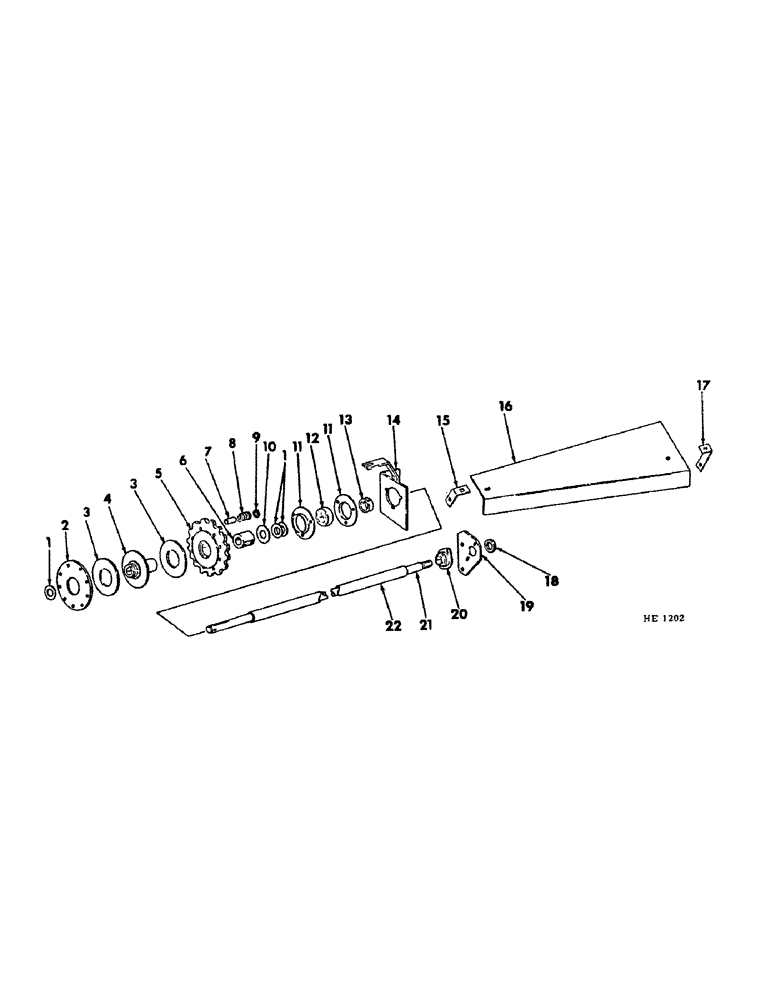

Запчасти Case IH 155 (J-16) - SIDE DRIVE CLUTCH & SHAFT

1

21716R1

WASHER

1-5/32 x 1-3/4x 16

1шт.

New part number.

1шт.

2

608050R1

RETAINER

PLATE, clutch backing

1шт.

18511R1

BOLT,Short NK, 3/8"-16 x 3", G2

3/8 x 3" type 1 crg

9шт.

New part number.

1шт.

619856R1

WASHER

13/32 x 1 x 16 ga

9шт.

New part number.

1шт.

138489

LOCK WASHER,Ext Tooth, 3/8"

WASHER, LOCK, Ext Tooth, 3/8"

9шт.

New part number.

1шт.

120377

NUT,3/8" - 16, Gr 5

9шт.

3

617619R1

FACING

clutch

2шт.

4

612744R1

CLUTCH PLATE

PLATE, clutch

1шт.

T14185

KEY, 1/4 x 1/4 x 2-3/4" straight 1/4" Sq x 2 3/4", Par

1шт.

5

608049R11

SPROCKET ASSY.

SPROCKET, clutch (includes 1-613752R1, bushing)

1шт.

18511R1

BOLT,Short NK, 3/8"-16 x 3", G2

3/8 x 3" type 1 crg

9шт.

New part number.

1шт.

619856R1

WASHER

13/32 x 1 x 16 ga

9шт.

New part number.

1шт.

138489

LOCK WASHER,Ext Tooth, 3/8"

WASHER, LOCK, Ext Tooth, 3/8"

9шт.

New part number.

1шт.

120377

NUT,3/8" - 16, Gr 5

9шт.

6

613752R1

BUSHING

clutch sprocket

1шт.

7

613828R1

SPACER

slip clutch spg

9шт.

8

613827R1

SPRING

clutch pressure

9шт.

9

619856R1

WASHER

13/32 x 1 x 16 ga

9шт.

10

551771R1

WASHER, 1-5/32 x 2-1/2 x 16 ga

1шт.

11

565631R1

BEARING CAP,2.441" ID x 4.4375" OD x 0.34375"

RETAINER, front brg

2шт.

495967R1

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

BOLT, 3/8 x 1" crg

3шт.

New part number.

1шт.

120377

NUT,3/8" - 16, Gr 5

3шт.

619856R1

WASHER

13/32 x 1 x 16 ga

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

New part number.

1шт.

12

455960R91

BALL BEARING

BEARING, side drive shaft front

1шт.

13

557115R11

COLLAR

COLLAR, brg locking (includes screw, 115321) (not for use w/Fischer, brg)

1шт.

115321

SET SCREW,Hex Skt, 5/16"-18 x 5/16"

SCREW, 5/16 x 5/16" hdls cup-pt set

1шт.

13

592673R11

COLLAR

brg locking (includes screw, 115321) (for use only w/Fischer, brg)

1шт.

115321

SET SCREW,Hex Skt, 5/16"-18 x 5/16"

SCREW, 5/16 x 5/16" hdls cup-pt set

1шт.

14

613763R11

SUPPORT, drive shaft front brg

1шт.

113-233

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

2шт.

New part number.

1шт.

598811R1

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 3/4", Gr 5

BOLT, 3/8 x 1-3/4" crg

1шт.

New part number.

1шт.

120377

NUT,3/8" - 16, Gr 5

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

15

617630R1

ANGLE, universal shield front support

1шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8 x 1-1/4"

1шт.

New part number.

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

16

609293R1

SHIELD, side drive universal

1шт.

598802R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G5, Full Thd

BOLT, 5/16 x 5/8" crg

2шт.

New part number.

1шт.

120376

NUT,5/16"-18, G5

2шт.

619855R1

WASHER

11/32 x 3/4 x 16 ga

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

17

609294R1

SUPPORT, universal shield rear

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8 x 3/4"

1шт.

New part number.

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

18

B12219

WASHER

knuckle

1шт.

19

609290R1

BLOCK, rear brg support

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 x 1"

2шт.

New part number.

1шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

20

608052R91

BEARING, shaft rear (opt w/608879R91, bearing)

1шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8 x 1-1/4"

2шт.

New part number.

1шт.

496668R1

WASHER, 13/32 x 3/4 x 16 ga

2шт.

New part number.

1шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

20

608879R91

BUSHING

BEARING, shaft rear (includes bearing, 608880R91; container, 608881R1 & plate 608882R1) (opt w/608052R91, bearing)

1шт.

608880R91

BEARING

rear

1шт.

608881R1

RETAINER

CONTAINER, rear brg

1шт.

608882R1

PLATE

rear brg

1шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8 x 1-1/4"

2шт.

New part number.

1шт.

469668R1

WASHER

13/32 x 3/4 x 16 ga

2шт.

New part number.

1шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

21

613756R1

SHAFT, side drive

1шт.

21716R1

WASHER

1-5/32 x 1-3/4 x 16 ga

1шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

1шт.

22

617602R1

TUBE, drive shaft shield

1шт.
