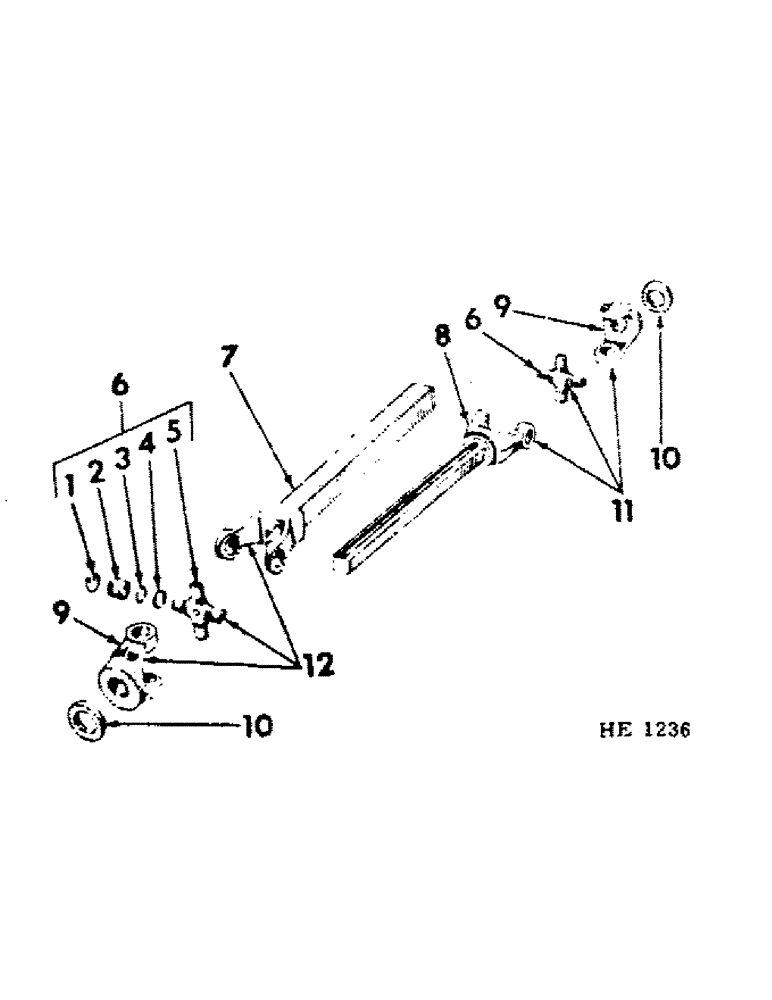

Запчасти Case IH 155 (J-15) - SIDE DRIVE SHAFT UNIVERSAL ASSEMBLY (ROCKWELL-STANDARD)

1

454741R1

RING, centre cross snap

8шт.

2

450776R1

CAP

BUSHING, centre cross

8шт.

3

450778R1

WASHER

centre cross cork

8шт.

4

450779R1

RETAINER

centre cross washer

8шт.

5

CROSS, centre (for service order 1-454740R91, cross package) (NSS)

2шт.

80711

LUBE NIPPLE,65 Degree, 1/8" NPT x 7/8" lg

LUB-FITTING, 1/8" - 65 elbow

2шт.

6

454740R91

CROSS

PACKAGE, centre cross composed of (1) cross (NSS) (4) bushing 450776R1 (4) retainer 450779R1, (4) ring 454741R1, (4) washer 450778R1

1шт.

7

450760R92

YOKE & TUBE, front

1шт.

8

450769R92

YOKE & SHAFT, rear

1шт.

9

452966R2

YOKE, 1" LH threaded

2шт.

10

B12219

WASHER

drive shaft knuckle

2шт.

11

450757R92

JOINT, rear half composed of: (1) package 454740R91, (1) yoke & shaft 450769R92, (1) yoke 452996R2

1шт.

12

617629R92

JOINT, front half composed of: (1) package 454740R91, (1) yoke & tube 450760R92, (1) yoke 452966R2

1шт.
