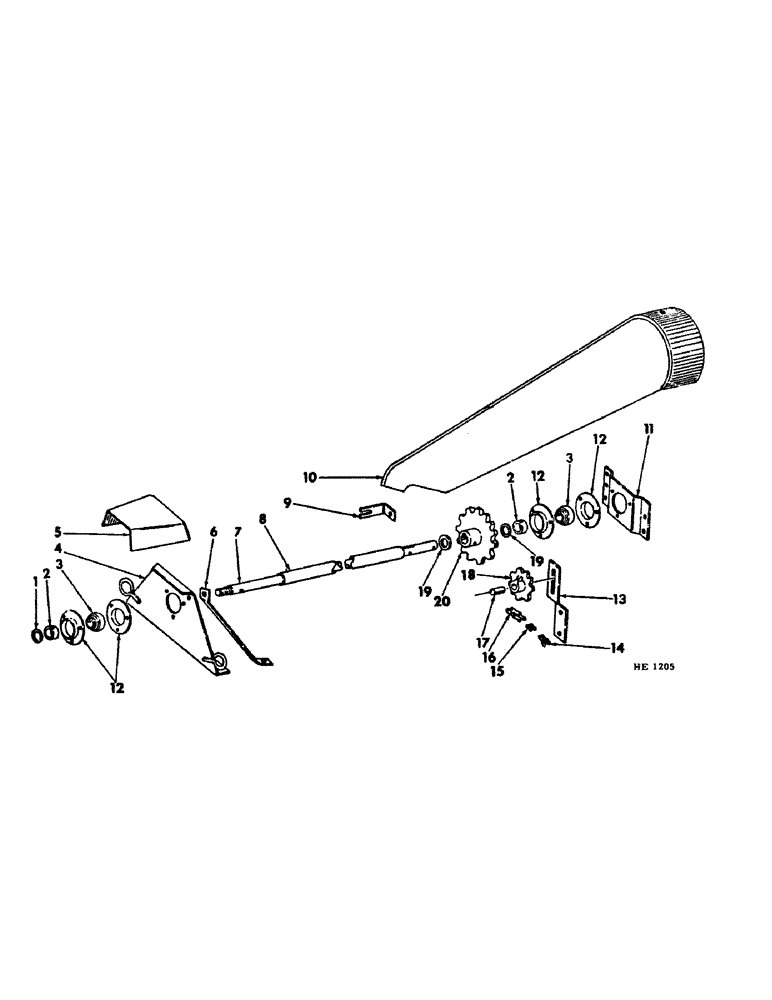

Запчасти Case IH 155 (J-14) - FRONT DRIVE SHAFT

1

B12219

WASHER

knuckle

1шт.

2

557115R11

COLLAR

COLLAR, brg locking (includes screw, 115321) (not for use w/Fischer bearing)

2шт.

115321

SET SCREW,Hex Skt, 5/16"-18 x 5/16"

SCREW, 5/16 x 5/16" hdls cup-pt set

2шт.

2

592673R11

COLLAR

brg locking (includes screw, 115321) (for use only w/Fischer bearing)

2шт.

115321

SET SCREW,Hex Skt, 5/16"-18 x 5/16"

SCREW, 5/16 x 5/16" hdls cup-pt set

2шт.

3

455960R91

BALL BEARING

BEARING, front & rear

2шт.

4

613746R91

SUPPORT, drive shaft front brg

1шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1/2 x 1-1/4"

2шт.

New part number.

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

5

607993R1

SHIELD

COVER, PTO shield

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 x 1"

2шт.

New part number.

1шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

6

618259R1

STRAP, front brg support LH

1шт.

6

618260R1

STRAP, front brg support RH

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 x 1"

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

7

611482R1

SHAFT, front drive

1шт.

657196R1

PIN

1/4 x 2" slt-spg

2шт.

21716R1

WASHER

1-5/32 x 1-3/4 x 16 ga

1шт.

8

611481R1

SHIELD, drive shaft

1шт.

9

608038R1

SUPPORT, chain shield lower

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 x 1"

1шт.

New part number.

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

10

613801R92

SHIELD

drive chain

1шт.

619855R1

WASHER

11/32 x 3/4 x 16 ga cd-pltd

2шт.

598803R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 1", G5, Full Thd

BOLT, 5/16 x 1" crg

2шт.

New part number.

1шт.

7500032

BUSHING

NUT, 5/16" wing

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

11

617483R2

SUPPORT, drive shaft rear brg

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 x 1"

4шт.

New part number.

1шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

12

565631R1

BEARING CAP,2.441" ID x 4.4375" OD x 0.34375"

RETAINER, drive shaft brg

4шт.

495967R1

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

BOLT, 3/8 x 1" crg

6шт.

New part number.

1шт.

120377

NUT,3/8" - 16, Gr 5

6шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

6шт.

13

613741R1

ARM, chain tightener

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 x 1"

2шт.

New part number.

1шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

14

567009R91

CHAIN LINK

LINK, drive chain offset

1шт.

1370D

PIN, offset link

1шт.

1376D

C-PIN, 1/4 lb pkg

1шт.

15

587368R91

CHAIN LINK

LINK, drive chain connecting

1шт.

1376D

C-PIN, 1/4 lb pkg

1шт.

16

CHAIN, regular 540 RPM front drive (1-1/2" extended pitch agricultural type) (for service order 1-569090R91, 10 ft chain, reduce to 59 links, add 1-587368R91, connecting link & 1-567009R91, offset link)

1шт.

16

CHAIN, special 1000 RPM front drive (for use on machines built prior to July, 1970 season) (1-1/2" extended pitch agricultural type)

1шт.

For service order 1-569090R91, 10 ft chain, reduce to 55 links, add 1-587368R91, connecting link & 1-567009R91, offset link

1шт.

17

612794R1

SPACER

BUSHING, chain tightener sprocket

1шт.

18

3347SBX

SPROCKET ASSY.

SPROCKET, chain tightener

1шт.

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

1шт.

598816R1

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 3", Gr 5

BOLT, 1/2 x 3" crg

1шт.

New part number.

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

178374R1

WASHER

17/32 x 1-1/4 x 16 ga

2шт.

New part number.

1шт.

467750R1

WASHER

25/32 x 1-1/2 x 11 ga

2шт.

New part number.

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

19

21716R1

WASHER

1-5/32 x 1-3/4 x 16 ga

1шт.

20

608037R1

SPROCKET ASSY.

SPROCKET, regular 540 RPM 15T drive shaft

1шт.

Q98

KEY, 1/4 x 1/4 x 1-7/8" straight 1/4" Sq x 1 7/8", Par

1шт.

576482R1

LOCK PIN,5/16" x 2", Slotted

1шт.

20

609333R11

SPROCKET, special 1000 RPM 16T drive shaft (for use on machines built prior to July season)

1шт.

Q98

KEY, 1/4 x 1/4 x 1-7/8" straight 1/4" Sq x 1 7/8", Par

1шт.

576482R1

LOCK PIN,5/16" x 2", Slotted

1шт.
