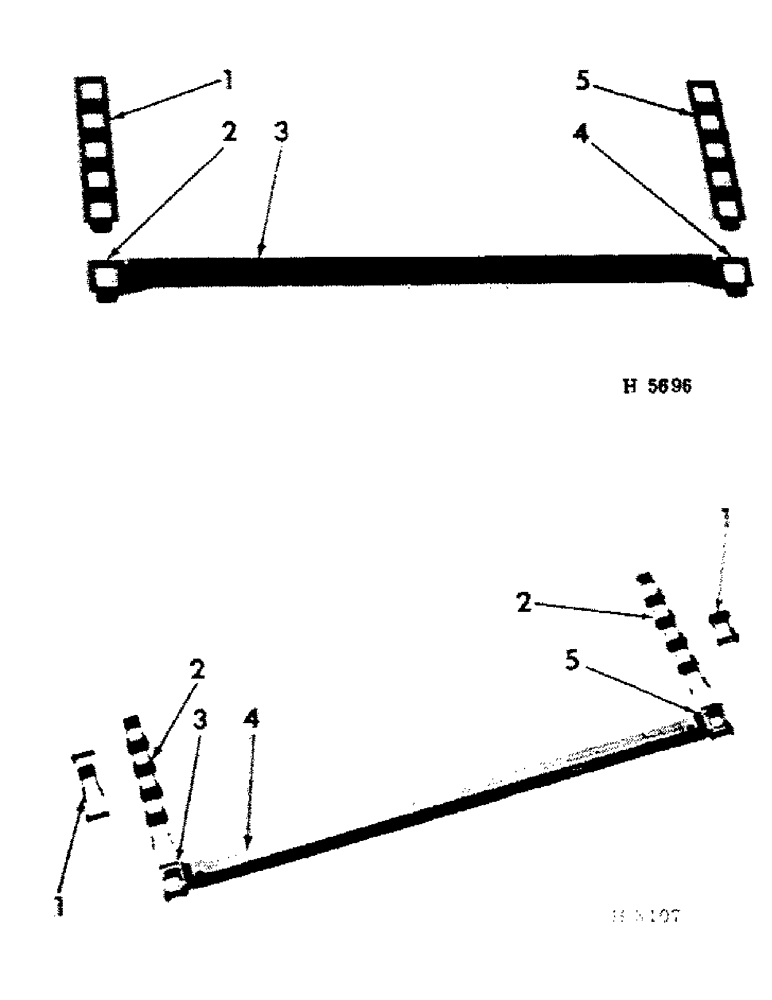

Запчасти Case IH 155 (J-11) - APRON CHAIN (REGULAR - STANDARD TYPE)

618924R92

CHAIN, apron (consists of all parts listed below)

1шт.

1

CHAIN, apron RH (for service order 2-CS-67XH, 10 ft chain, when using 19-613787R11 attaching links, reduce the chains to 78 links however, if using 609279R1 attaching links, reduce the chains to 97 links)

1шт.

2

613787R11

LINK ASSY.,67 Links x 58.75mm = 3936.25mm

LINK, attaching LH (opt w/609279R1, link)

19шт.

106915

RIVET,Tr Hd, 5/16" x 7/8"

5/16 x 7/8" truss-hd

19шт.

2

609279R1

LINK, attaching LH (opt w/613787R11, link)

19шт.

106915

RIVET,Tr Hd, 5/16" x 7/8"

5/16 x 7/8" truss-hd

19шт.

3

613789R91

MEMBER

CROSSMEMBER, apron (includes 1-613787R11, link; 1-613788R11, link and 2-106915, rivets) (opt w/609282R91, crossmember)

19шт.

3

609282R91

CROSSMEMBER, apron (includes 1-609279R1, link, 1-609280R1, link and 2-106915, rivets) (opt w/613789R91, crossmember)

1шт.

4

613788R11

LINK ASSY.,67 Links x 58.75mm = 3936.25mm

LINK, attaching RH (opt w/609280R1, link)

19шт.

106915

RIVET,Tr Hd, 5/16" x 7/8"

5/16 x 7/8" truss-hd

19шт.

4

609280R1

LINK, attaching RH (opt w/613788R11, link)

19шт.

106915

RIVET,Tr Hd, 5/16" x 7/8"

5/16 x 7/8" truss-hd

19шт.

5

CHAIN, apron LH (for service order 2-CS-67XH, 10 ft chain, when using 19-613788R11 attaching links reduce the chains to 78 links. However, if using 609280R1 attaching links, reduce the chains to 97 links)

1шт.

594793R91

CHAIN, apron (parts listed below)

1шт.

1

594791R11

LINK, chain replacement (includes 2-594790R1, pins & 2-107763, pins) (194)

1шт.

594790R1

PIN, link coupler

2шт.

107763

COTTER PIN,1/8" x 5/8"

PIN, SPLIT (COTTER), 1/8" x 5/8"

2шт.

2

CHAIN, apron LH or RH (for service of individual chain link, order 1-594791R11, link)

1шт.

3

821016C1

LINK,Chain

LINK, LH attaching (includes 2-594790R1, pins & 2-107763, pins)

19шт.

106915

RIVET,Tr Hd, 5/16" x 7/8"

5/16 x 7/8" truss-hd

19шт.

594790R1

PIN, link coupler

38шт.

107763

COTTER PIN,1/8" x 5/8"

PIN, SPLIT (COTTER), 1/8" x 5/8"

38шт.

4

594796R91

MEMBER

CROSSMEMBER, apron (includes 1-594788R11 & 1-594789R11, links & 2-106915, rivets)

1шт.

5

821016C1

LINK,Chain

LINK, RH attaching (includes 2-594790R1, pins & 2-107763, pins)

19шт.

106915

RIVET,Tr Hd, 5/16" x 7/8"

5/16 x 7/8" truss-hd

19шт.

594790R1

PIN, link coupler

38шт.

107763

COTTER PIN,1/8" x 5/8"

PIN, SPLIT (COTTER), 1/8" x 5/8"

38шт.
