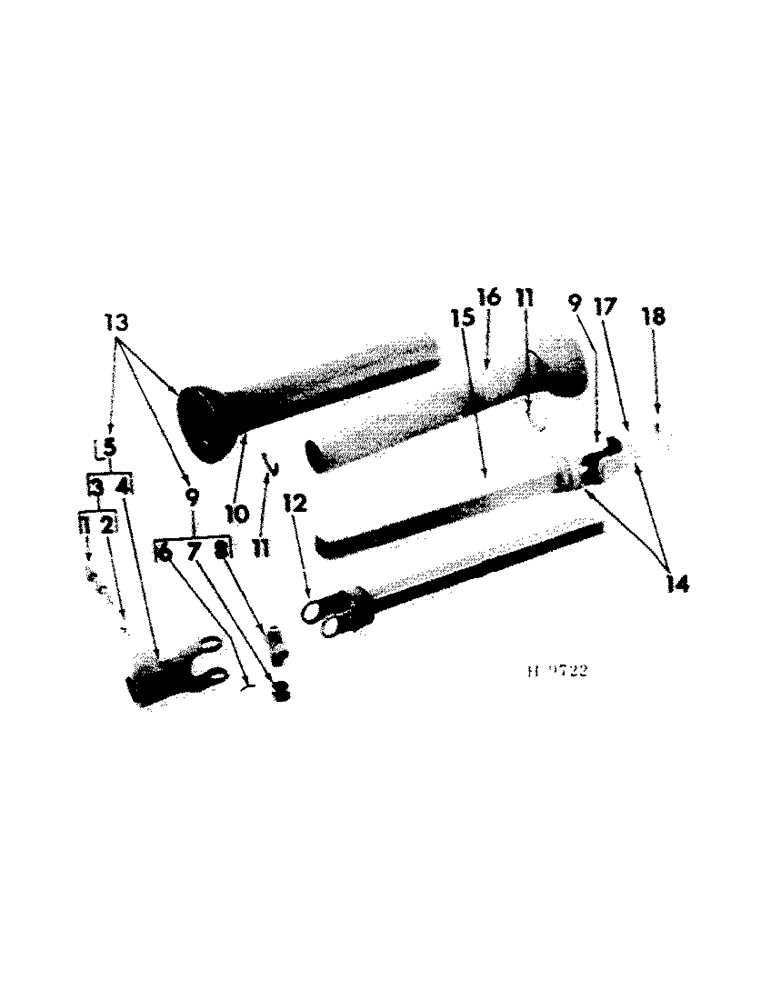

Запчасти Case IH 155 (J-09) - FRONT DRIVE UNIVERSAL ASSEMBLY (540 RPM) (HAYES STEEL)

1

PIN, lk (order 1-613867R11, pin) (NSS)

1шт.

17078R1

LOCK PIN,1/8" x 13/16", Slotted

PIN, 1/8" x 13/16", Slotted

1шт.

2

613868R1

SPRING

yoke lk pin

1шт.

3

613867R11

PIN

yoke lk (includes 17078R1, pin & 613868R1, spring)

1шт.

4

YOKE, (order 1-613566R91, yoke) (NSS)

1шт.

5

613866R91

YOKE, quick-detachable (includes 613867R11, pin)

1шт.

6

613469R1

RING

center cross snap

8шт.

7

613470R11

BEARING, center cross

8шт.

8

CROSS, (order 1-613471R91 cross) (NSS)

1шт.

19769R1

LUB-FITTING, 1/4" - 65 degree

1шт.

9

613471R91

SPIDER ASSY.

CROSS, center (includes 4-613470R11, bearings; 1-19769R1, fitting & 4-613469R1, rings)

2шт.

10

614002R91

SHIELD, front outer

1шт.

11

613870R1

BEARING HALF

BEARING, shield nylon

4шт.

12

614000R92

YOKE & SHAFT, front

1шт.

13

614009R92

JOINT

front half composed of: (1) yoke 613866R91, (1) cross 613471R91, (2) bearing 613870R1, (1) yoke & shaft 614000R92, (1) shield 614002R92

1шт.

14

614010R91

JOINT,16.75, 2.5" Length

rear half composed of: (1) yoke 613466R1, (1) cross 613471R91, (2) bearing 613870R1, (1) yoke & tube 614001R91, (1) shield, 614003R91

1шт.

15

614001R91

YOKE & TUBE, rear

1шт.

16

614003R91

SHIELD, rear inner

1шт.

17

613466R1

YOKE

threaded rear

1шт.

18

B12219

WASHER

knuckle rear

1шт.
