Запчасти Case IH 150 (E-05[A]) - PNEUMATIC TIRE AND WHEEL AND PRODUCT GRAPHICS

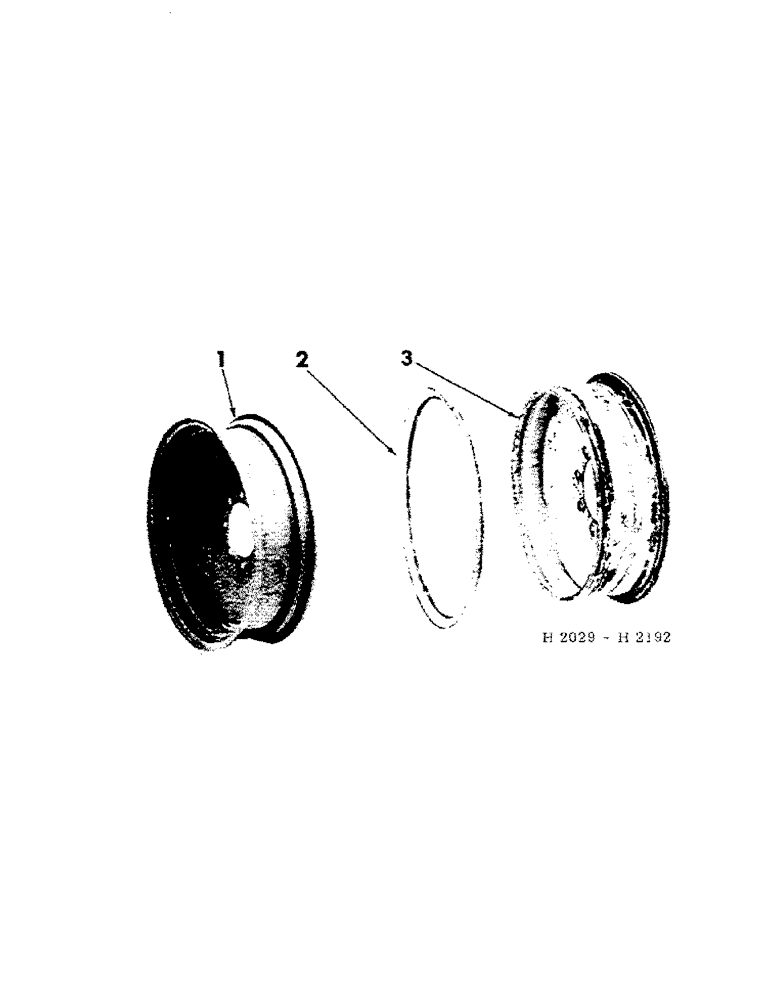

1

618982R91

WHEEL

(W7-20 for up to & including 9.00 x 20" used truck tires)

2шт.

617918R1

BOLT,9/16" - 18 x 1 15/32"

wheel

16шт.

1

617623R91

WHEEL, (W7-24 for 7.50 x 24" or 9.00 x 24" tires) (special)

2шт.

617918R1

BOLT,9/16" - 18 x 1 15/32"

wheel

16шт.

1

608383R91

RIM

WHEEL, (W8-20 DC for up to & including 10.00 x 20" used truck tires) (special)

2шт.

617918R1

BOLT,9/16" - 18 x 1 15/32"

wheel

16шт.

2

617659R1

RING, wheel rim side (Electric or Motor Wheel Co)

2шт.

2

594156R1

FLANGE

RING, wheel rim side (Sankey & Sons Co.)

2шт.

3

617624R91

WHEEL, (includes 617659R1 or 594156R1, ring) (special) (for 20" truck tires up to and including 9.00 x 20")

1шт.

617918R1

BOLT,9/16" - 18 x 1 15/32"

wheel

16шт.

TIRE & TUBE, (7.50 x 24" 6 ply implement type)

2шт.

TIRE & TUBE, (9.00 x 24" 6 ply implement type)

2шт.

614077R94

PACKAGE, product graphic service (composed or product graphics listed)

1шт.

2751698R1

PRODUCT GRAPHIC, "be careful"

1шт.

2751712R1

PRODUCT GRAPHIC

"PTO speed"

1шт.

2752020R1

PRODUCT GRAPHIC

"IH"

3шт.

2752325R1

PRODUCT GRAPHIC

"International"

2шт.

PRODUCT GRAPHIC, "150" name (NSS)

2шт.

PRODUCT GRAPHIC, "warning & lubrication" (NSS)

1шт.
