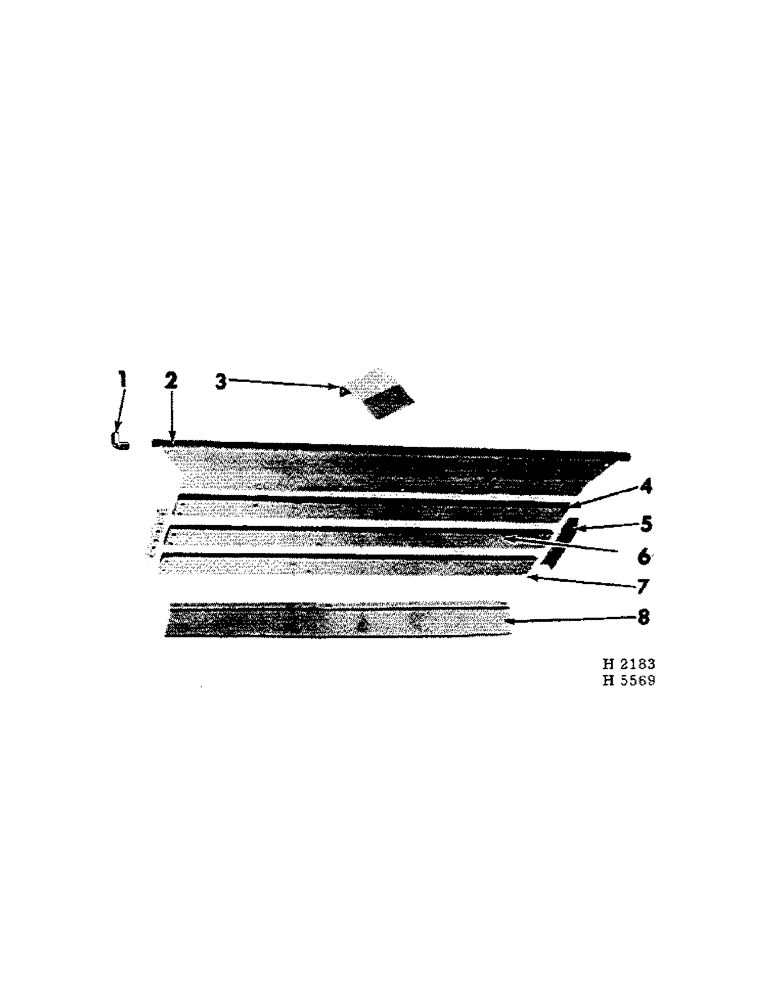

Запчасти Case IH 150 (E-04) - FRONT ENDGATE

1

612963R1

FILLER, top roll corner

2шт.

2

613766R2

ROLL, front endgate top

1шт.

14995R1

BOLT

W/NUT, 3/8 x 3/4" crg

2шт.

18685R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1 1/2", Gr 2

BOLT W/NUT, 3/8 x 1-3/8" crg

4шт.

15039R1

BOLT

W/NUT, 3/8 x 1-1/2" crg

2шт.

Q1505

WASHER

WASH, 13/32 x 1 x 16 ga

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

8шт.

3

609269R1

SHIELD, rope control trip lever

1шт.

19428R1

BOLT W/NUT, 5/16 x 5/8" cd-pltd crg

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

4

613784R1

BOARD, front endgate upper

1шт.

15039R1

BOLT

W/NUT, 3/8 x 1-1/2" crg

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

5

617656R1

ANGLE, endgate support LH

1шт.

5

617566R1

ANGLE, endgate support RH

1шт.

18422R1

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 3/4", Gr 2

BOLT W/NUT, 3/8 x 1-3/4" cd-pltd crg

6шт.

18780R1

BOLT,Hex, 3/8"-16 x 1 3/4", G2

W/NUT, 3/8 x 1-3/4" cd-pltd mach (RH)

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, (3-LH; 4-RH) 3/8"

1шт.

6

613785R1

BOARD, front endgate centre

1шт.

15039R1

BOLT

W/NUT, 3/8 x 1-1/2" crg

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

7

618400R1

BOARD, front endgate lower

1шт.

15039R1

BOLT

W/NUT, 3/8 x 1-1/2" crg

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

8

613191R11

CANVAS, front endgate

1шт.

18422R1

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 3/4", Gr 2

BOLT W/NUT, 3/8 x 1-3/4" cd-pltd crg

2шт.

18479R1

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 2", Gr 2

BOLT W/NUT, 3/8 x 2" cd-pltd crg

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.
