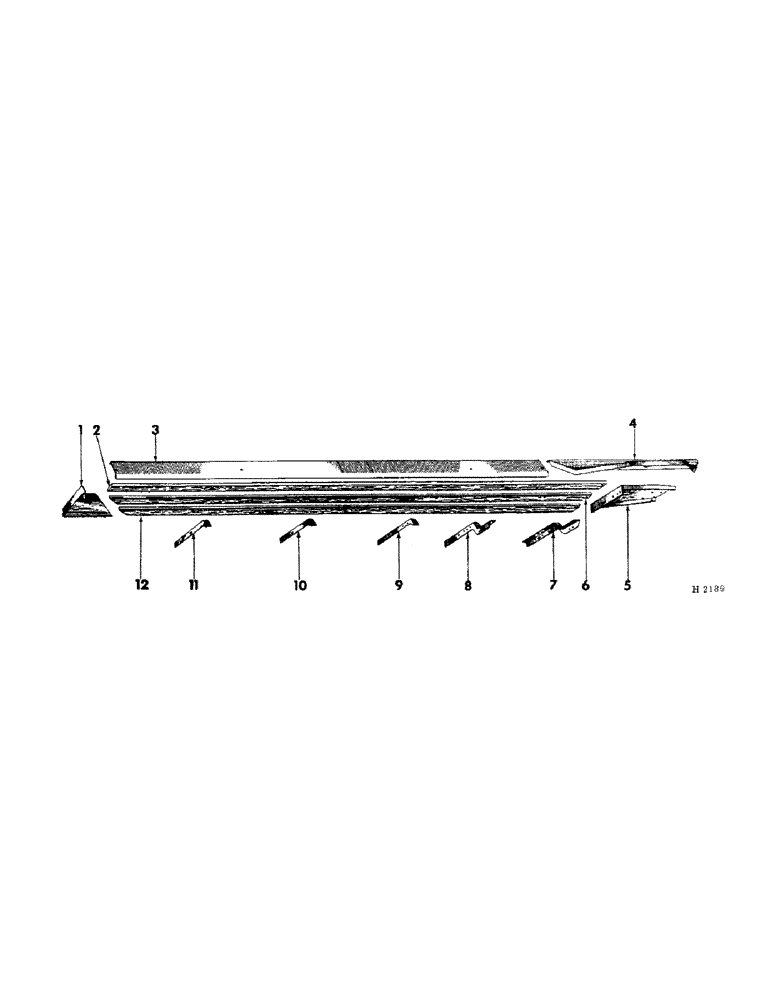

Запчасти Case IH 150 (E-03) - SPREADER BOX SIDES, LEFT SIDE ILLUSTRATED

1

613764R2

SHEET, front corner LH

1шт.

1

613765R1

SHEET, front corner RH

1шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT W/NUT, 3/8 x 3/4" cd-pltd crg

4шт.

18778R1

SCREW,Hex, 3/8"-16 x 3/4", G2

BOLT W/NUT, 3/8 x 3/4" cd-pltd mach (2-RH)

1шт.

15003R1

BOLT,Sq Nk, 7/16" x 7/8"

W/NUT, 7/16 x 7/8" crg

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, (2-LH; 4-RH) 3/8"

1шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

4шт.

2

618401R1

BOARD, side upper

2шт.

15031R1

BOLT W/NUT, 5/16 x 1-3/8" crg

5шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

5шт.

3

617517R1

SIDE, side top LH

1шт.

3

617518R1

SIDE, side top RH

1шт.

14990R1

BOLT

W/NUT, 5/16 x 5/8" crg

2шт.

14994R1

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 2

BOLT, CARRIAGE, , w/Nut Short NK, 5/16"-18 x 3/4", G2

6шт.

434-524

CARRIAGE BOLT,Short NK, 5/16"-18 x 1 1/2", G5

BOLT W/NUT, 5/16 x 1-1/2" crg (4-LH; 3-RH)

1шт.

15053R1

BOLT,Short NK, 5/16"-18 x 1 3/4", G2

W/NUT, 5/16 x 1-3/4" crg (4-LH; 5-RH)

1шт.

14995R1

BOLT

W/NUT, 3/8 x 3/4" crg

2шт.

15039R1

BOLT

W/NUT, 3/8 x 1-1/2" crg (2-RH)

1шт.

Q399

WASHER

WASH, 11/32 x 1 x 16 ga

10шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

12шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, (1-LH; 3-RH) 3/8"

1шт.

4

613767R11

SHEET, side top LH

1шт.

4

613768R11

SHEET, side top RH

1шт.

14994R1

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 2

BOLT, CARRIAGE, , w/Nut Short NK, 5/16"-18 x 3/4", G2

4шт.

434-524

CARRIAGE BOLT,Short NK, 5/16"-18 x 1 1/2", G5

BOLT W/NUT, 5/16 x 1-1/2" crg

4шт.

14995R1

BOLT

W/NUT, 3/8 x 3/4" crg (4LH; 3-RH)

1шт.

Q398

WASHER

WASH, 11/32 x 7/8 x 16 ga

4шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

8шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, (4-LH; 3-RH) 3/8"

1шт.

5

613249R11

SHEET, side rear LH

1шт.

5

613250R11

SHEET, side rear RH

1шт.

14994R1

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 2

BOLT, CARRIAGE, , w/Nut Short NK, 5/16"-18 x 3/4", G2

4шт.

17428R1

BOLT,Hex, 1/2"-13 x 1", G2, Full Thd

W/NUT, 1/2 x 1" mach (2-LH; 3-RH)

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, (2-LH; 3-RH) 1/2"

1шт.

6

618403R1

BOARD, side centre

2шт.

15031R1

BOLT W/NUT, 5/16 x 1-3/8" crg

20шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

20шт.

7

613778R1

ANGLE, side fifth LH

1шт.

613779R1

ANGLE, side fifth RH

1шт.

19426R1

BOLT W/NUT, 3/8 x 7/8" cd-pltd mach

2шт.

19427R1

BOLT

W/NUT, 3/8 x 7/8" cd-pltd crg

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

8

613780R2

ANGLE, side fourth LH

1шт.

8

613781R1

ANGLE, side fourth RH

1шт.

19426R1

BOLT W/NUT, 3/8 x 7/8" cd-pltd mach

2шт.

19427R1

BOLT

W/NUT, 3/8 x 7/8" cd-pltd crg

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

9

613776R2

ANGLE, side third LH

1шт.

9

613777R2

ANGLE, side third RH

1шт.

19426R1

BOLT W/NUT, 3/8 x 7/8" cd-pltd mach

2шт.

19427R1

BOLT

W/NUT, 3/8 x 7/8" cd-pltd crg

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

10

617548R2

ANGLE, side second LH

1шт.

10

617549R2

ANGLE, side second RH

1шт.

19426R1

BOLT W/NUT, 3/8 x 7/8" cd-pltd mach

2шт.

19431R1

BOLT

W/NUT, 3/8 x 1-1/8" cd-pltd crg

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

11

617546R2

ANGLE, side first LH

1шт.

11

617547R2

ANGLE, side first RH

1шт.

19426R1

BOLT W/NUT, 3/8 x 7/8" cd-pltd mach

2шт.

19427R1

BOLT

W/NUT, 3/8 x 7/8" cd-pltd crg

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

12

618405R1

BOARD, side lower LH

1шт.

12

618406R1

BOARD, side lower RH

1шт.

15031R1

BOLT W/NUT, 5/16 x 1-3/8" crg

20шт.

18685R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1 1/2", Gr 2

BOLT W/NUT, 3/8 x 1-3/8" crg

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

20шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

618696R1

STRIP, product graphic mounting

2шт.

608698R1

NAIL, thread ring

8шт.
