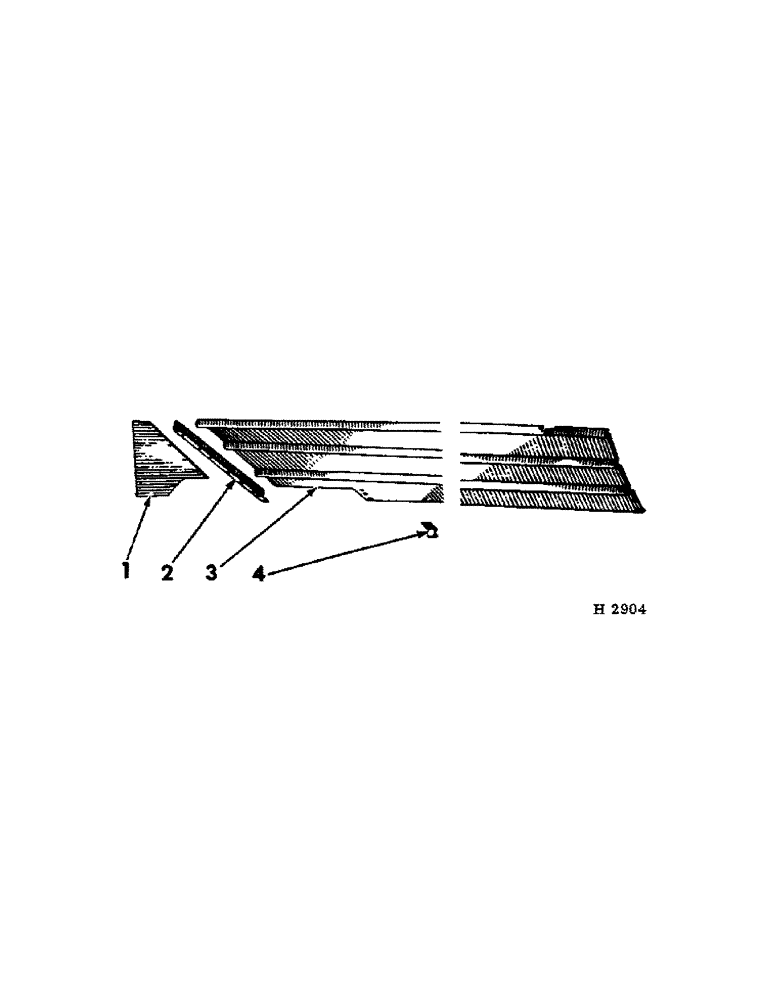

Запчасти Case IH 150 (E-21) - FORAGE BOX SIDE

1

619069R1

FILLER, side rear LH

1шт.

1

619070R1

FILLER, side rear RH

1шт.

14994R1

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 2

BOLT, CARRIAGE, , w/Nut Short NK, 5/16"-18 x 3/4", G2

8шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

8шт.

2

613814R1

ANGLE, side LH

1шт.

2

613815R1

ANGLE, side RH

1шт.

15015R1

SCREW,Sq Nk, 3/8" - 16 x 1 1/8"

BOLT W/NUT, 3/8 x 1-1/8" crg (2-LH; 1-RH)

1шт.

BOLT W/NUT, 3/8 x 1-3/8" crg (right)

1шт.

Q3830

WASHER

WASH, 13/32 x 1-1/2 x 11 ga

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

3

613816R1

SIDE, forage box LH

1шт.

3

613817R1

SIDE, forage box RH

1шт.

4

613822R1

CLAMP, box side

6шт.

19577R1

BOLT

5/16 x 1-1/8" cd-pltd. crg

6шт.

7500032

BUSHING

NUT, 5/16" cd-pltd wing

6шт.

Q398

WASHER

WASH, 11/32 x 7/8 x 16 ga

6шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.
