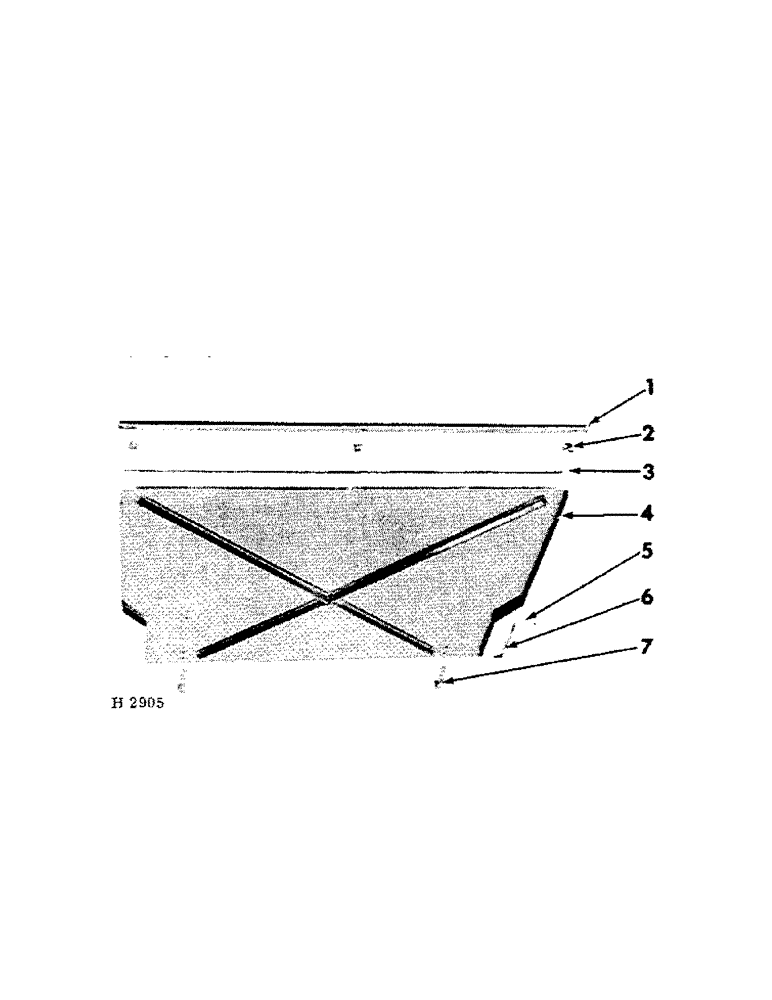

Запчасти Case IH 150 (E-21[B]) - FORAGE BOX REAR

1

619063R1

ANGLE, cross tie

1шт.

14994R1

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 2

BOLT, CARRIAGE, , w/Nut Short NK, 5/16"-18 x 3/4", G2

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

2

619061R1

SUPPORT, hinge rod LH

1шт.

2

619062R1

SUPPORT, hinge rod RH & centre

2шт.

14994R1

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 2

BOLT, CARRIAGE, , w/Nut Short NK, 5/16"-18 x 3/4", G2

3шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

3

619058R1

ROD, endgate hinge

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

2шт.

4

619314R11

ENDGATE, rear

1шт.

5

M296

SPRING

unloading lock

2шт.

6

619060R11

LOCK, endgate unloading

2шт.

15077R1

BOLT, 3/8 x 2" dld crg

2шт.

109886

NUT

3/8" slt

2шт.

Q1597

WASHER

WASH, 13/32 x 3/4 x 16 ga

2шт.

103374

COTTER PIN,3/32" x 1"

Pin, Split (Cotter), 3/32" x 1"

2шт.

7

619066R1

LOCK, endgate rear

2шт.

113859

BOLT (SPREADER),Rd Hd, 5/16" - 18 x 1/2"

SCREW W/NUT, 5/16 x 1/2" slt-rd-hd

4шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.
