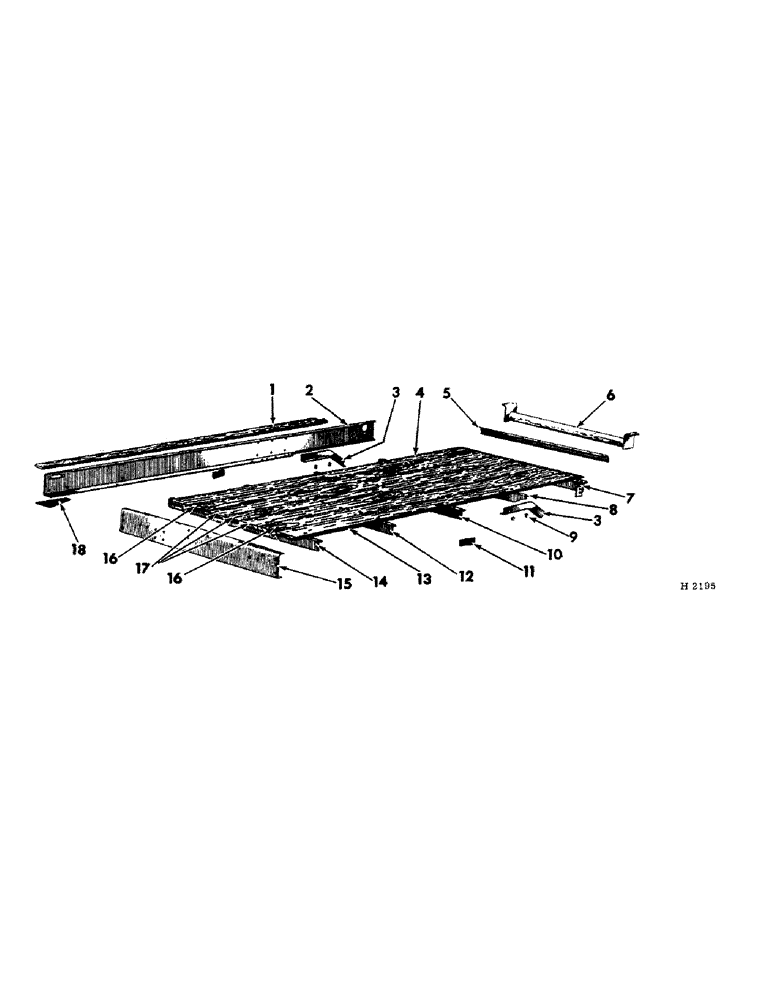

Запчасти Case IH 150 (E-02) - SPREADER BOX BOTTOM

1

613782R2

BOARD, bottom outer LH

1шт.

1

613783R2

BOARD, bottom outer RH

1шт.

434-524

CARRIAGE BOLT,Short NK, 5/16"-18 x 1 1/2", G5

BOLT W/NUT, 5/16 x 1-1/2" crg

10шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

10шт.

2

613773R21

CHANNEL, bottom side LH

1шт.

2

613774R21

CHANNEL, bottom side RH

1шт.

3

ANGLE, apron raising LH & RH (prior to 1964 order 1-616385R1 (LH) or 1-616386R1 (RH), angle & 2-612714R1, spacers)

1шт.

3

616385R1

ANGLE, apron raising LH (1964 & since)

1шт.

3

616386R1

ANGLE, apron raising RH (1964 & since)

1шт.

15581R1

BOLT,3/8"-16 x 1 1/2", G2

W/NUT, 3/8 x 1-1/2 no 3 plow

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

4

617584R1

BOARD, tongue RH

1шт.

15031R1

BOLT W/NUT, 5/16 x 1-3/8" crg

10шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

10шт.

5

617519R1

SHIELD

board rear

1шт.

15022R1

BOLT,Sht Sq Nk, 5/16" - 18 x 1 1/4"

W/NUT, 5/16 x 1-1/4" crg

9шт.

Q398

WASHER

WASH, 11/32 x 7/8 x 16 ga

9шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

9шт.

6

611566R91

SUPPORT, bottom rear, Serial Range: (prior-1964)

1шт.

495968R1

BOLT,Short NK, 3/8"-16 x 1 1/8", G5, Full Thd

W/NUT, 3/8 x 1-1/8" type 2 crg

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

7

617560R1

ANGLE, fifth support, Serial Range: (prior-1964)

1шт.

15017R1

BOLT W/NUT, 1/2 x 1-1/8" crg

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

7

609227R11

ANGLE, fifth support (1964 & since)

1шт.

15017R1

BOLT W/NUT, 1/2 x 1-1/8" crg

2шт.

180179

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 5

1/2 x 1-3/4" cd-pltd type 2

4шт.

231-1448

NUT,1/2"-13, GB

LK-NUT, 1/2" cd-pltd

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

8

617559R1

ANGLE, fourth support

1шт.

15017R1

BOLT W/NUT, 1/2 x 1-1/8" crg

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

9

612714R1

SPACER

apron angle (1964 & since)

4шт.

10

617558R1

ANGLE, third support

1шт.

15017R1

BOLT W/NUT, 1/2 x 1-1/8" crg

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

11

617493R2

GUIDE, apron chain

2шт.

19431R1

BOLT

W/NUT, 3/8 x 1-1/8" cd-pltd crg

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

12

617557R1

ANGLE, second support

1шт.

15017R1

BOLT W/NUT, 1/2 x 1-1/8" crg

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

13

617585R1

BOARD, groove LH

1шт.

15031R1

BOLT W/NUT, 5/16 x 1-3/8" crg

10шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

10шт.

14

617556R1

ANGLE, first support

1шт.

15017R1

BOLT W/NUT, 1/2 x 1-1/8" crg

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

15

613758R2

CHANNEL, front cross

1шт.

18778R1

SCREW,Hex, 3/8"-16 x 3/4", G2

BOLT W/NUT, 3/8 x 3/4" cd-pltd mach

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

16

617586R1

BOARD, tongue & groove

2шт.

15031R1

BOLT W/NUT, 5/16 x 1-3/8" crg

20шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

20шт.

17

617587R1

BOARD, centre

3шт.

15031R1

BOLT W/NUT, 5/16 x 1-3/8" crg

30шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

30шт.

18

617464R1

PLATE, front corner, Serial Range: (prior-1964)

1шт.

80280503

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5, Full Thd

BOLT W/NUT, 3/8 x 1" crg

6шт.

17426R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

W/NUT, 3/8 x 1" mach

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

10шт.
