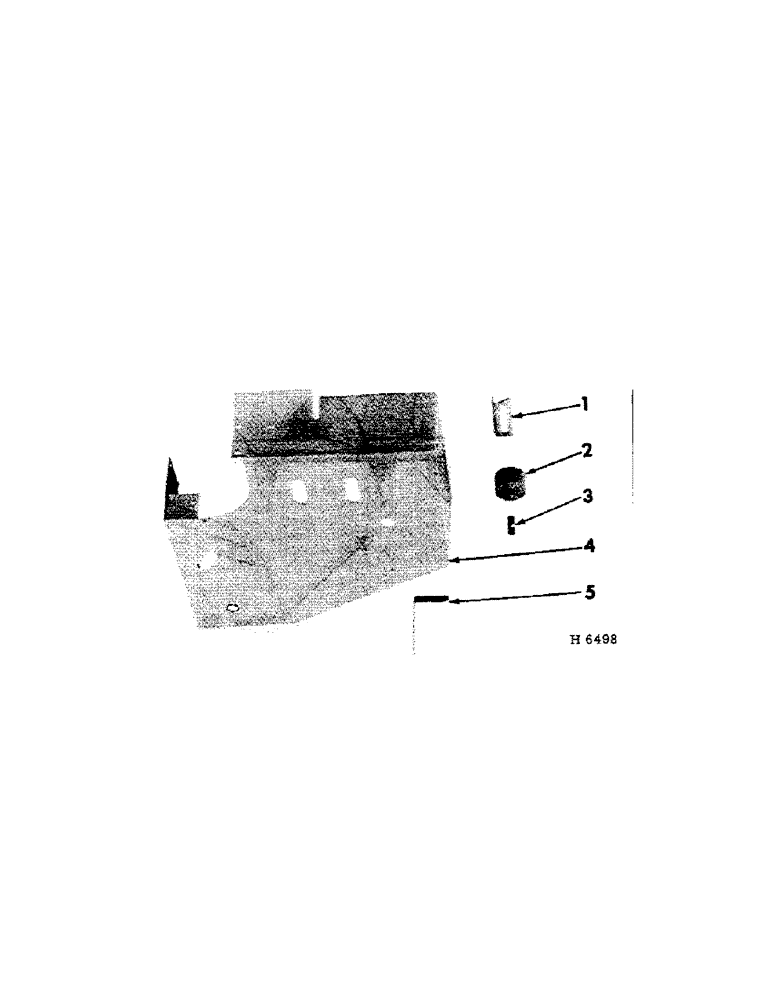

Запчасти Case IH 150 (E-20) - MAIN DRIVE SHIELD (1961 TO 1963 SEASON)

1

613740R1

SUPPORT, chain tightener

1шт.

17437R1

BOLT W/NUT, 3/8 x 1-1/8" mach

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

2

612859R1

ROLLER

chain tightener

1шт.

15144R1

BOLT

W/NUT, 1/2 x 3" crg

1шт.

12026R1

WASHER

WASH, 17/32 x 1-1/4 x 16 ga

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

3

612794R1

SPACER

BUSHING, tightener roller

1шт.

4

613562R1

SHIELD, main drive

1шт.

613127R1

NUT, 5/16" speed

2шт.

17407R1

BOLT,5/16" - 18 x 5/8"

5/16 x 5/8" mach

2шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2" slt-rd-hd cd-pltd

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

5

613771R1

BRACKET, shield

1шт.

19428R1

BOLT W/NUT, 5/16 x 5/8" cd-pltd crg

2шт.

19417R1

BOLT

W/NUT, 3/8 x 1" cd-pltd crg

1шт.

619855R1

WASHER

WASH, 11/32 x 3/4 x 16 ga cd-pltd

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.
