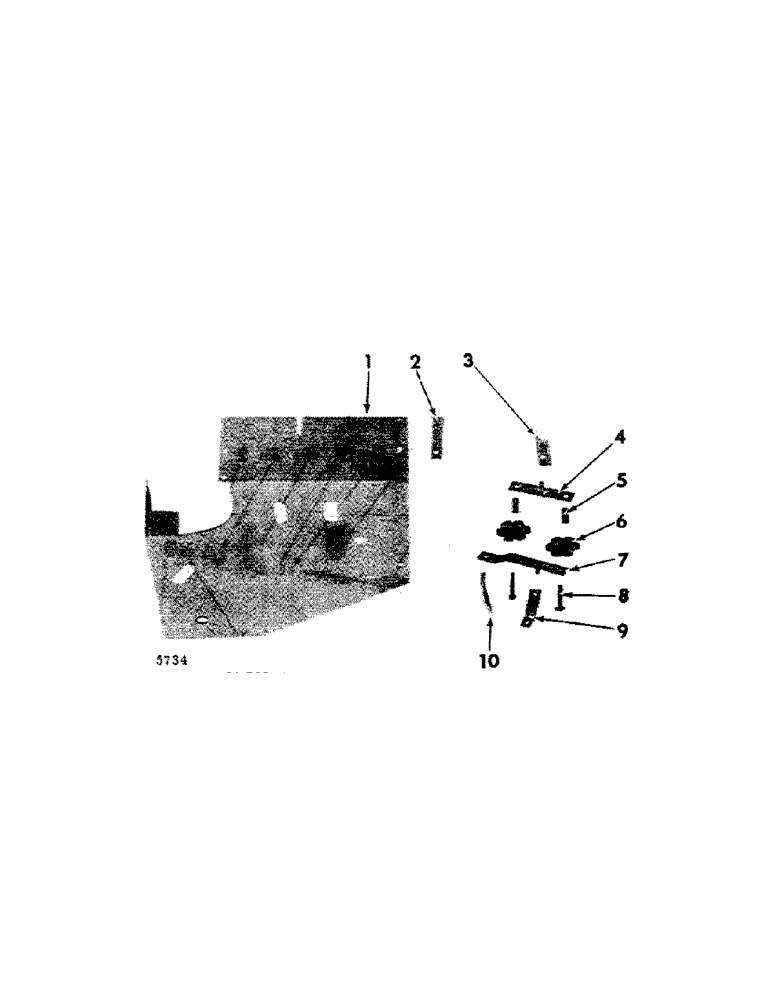

Запчасти Case IH 150 (E-20[B]) - MAIN DRIVE SHIELD (1963 SEASON AND SINCE)

1

613562R21

SHIELD, main drive

1шт.

19428R1

BOLT W/NUT, 5/16 x 5/8" cd-pltd crg

2шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2" slt-rd-hd cd-pltd

2шт.

619855R1

WASHER

WASH, 11/32 x 3/4 x 16 ga cd-pltd

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

613127R1

NUT, 5/16" speed

2шт.

2

613771R1

BRACKET, shield

1шт.

80280503

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5, Full Thd

BOLT W/NUT, 3/8 x 1" crg

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

3

617578R1

SUPPORT, chain tightener inner

1шт.

17425R1

BOLT,Hex, 5/16" - 18 x 1", Gr 2

W/NUT, 5/16 x 1" mach

1шт.

17439R1

BOLT,Hex, 1/2" - 13 x 1 1/8", Gr 2

W/NUT, 1/2 x 1-1/8" mach

1шт.

103321

LOCK WASHER,3/8"

5/16"

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

4

617502R11

TIGHTENER, chain inner

1шт.

5

618439R1

SPACER, tightener sprocket

2шт.

6

617412R1

SPROCKET, 6T chain tightener

2шт.

7

617503R11

TIGHTENER, chain outer

1шт.

8

620485R1

BOLT, chain tightener lubrication

2шт.

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

2шт.

102637

NUT,1/2"-13, G5

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

9

617501R1

SUPPORT, chain tightener outer

1шт.

17420R1

BOLT,Hex, 3/8"-16 x 7/8", G2

W/NUT, 3/8 x 7/8" mach

1шт.

17437R1

BOLT W/NUT, 3/8 x 1-1/8" mach

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

10

617434R1

BOLT, chain tightener

1шт.

12026R1

WASHER

WASH, 17/32 x 1-1/4 x 16 ga

1шт.

102637

NUT,1/2"-13, G5

2шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

1шт.
