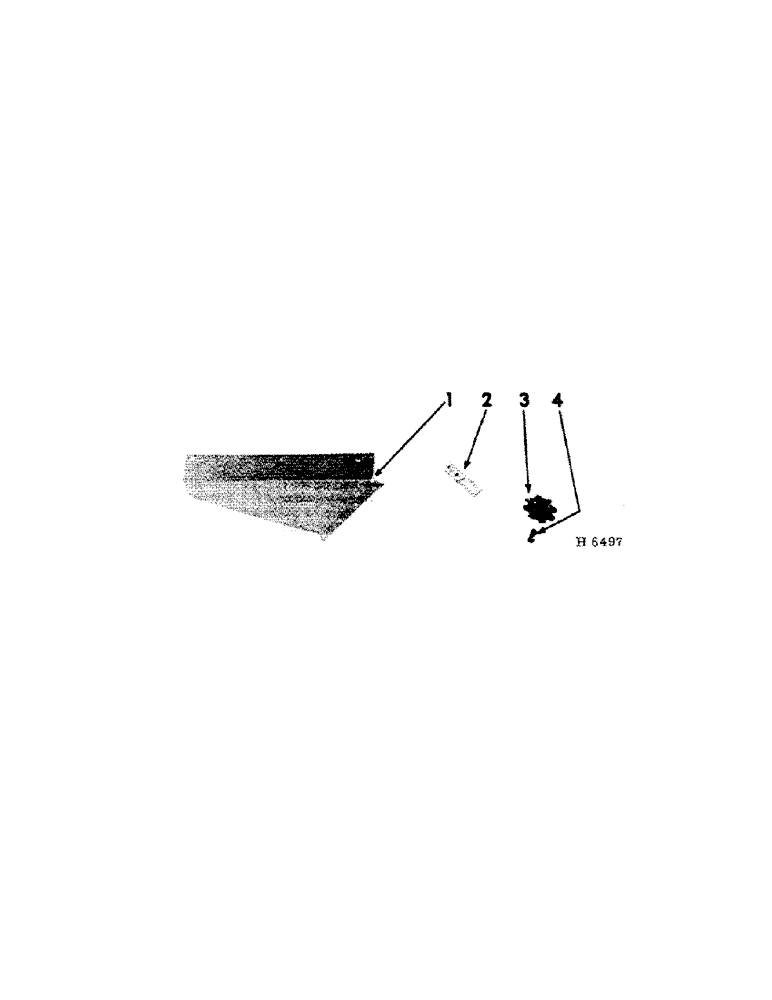

Запчасти Case IH 150 (E-20[A]) - WIDESPREAD CHAIN SHIELD

613772R1

SHIELD, widespread chain

1шт.

19282R1

BOLT

W/NUT, 1/4 x 1/2" cd-pltd crg

4шт.

19427R1

BOLT

W/NUT, 3/8 x 7/8" cd-pltd crg

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

2

613759R1

ARM, chain tightener

1шт.

19431R1

BOLT

W/NUT, 3/8 x 1-1/8" cd-pltd crg

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

3

616541R1

DRIVE SPROCKET

SPROCKET, 7T chain tightener

1шт.

219-28

LUBE NIPPLE,5/16" - 32

LUB-FTG, 5/16"

1шт.

15144R1

BOLT

W/NUT, 1/2 x 3" crg

1шт.

12026R1

WASHER

WASH, 17/32 x 1-1/4 x 16 ga

2шт.

615168R1

WASHER

WASH, 25/32 x 1-1/2 x 11 ga

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

4

612794R1

SPACER

BUSHING, tightener sprocket

1шт.
