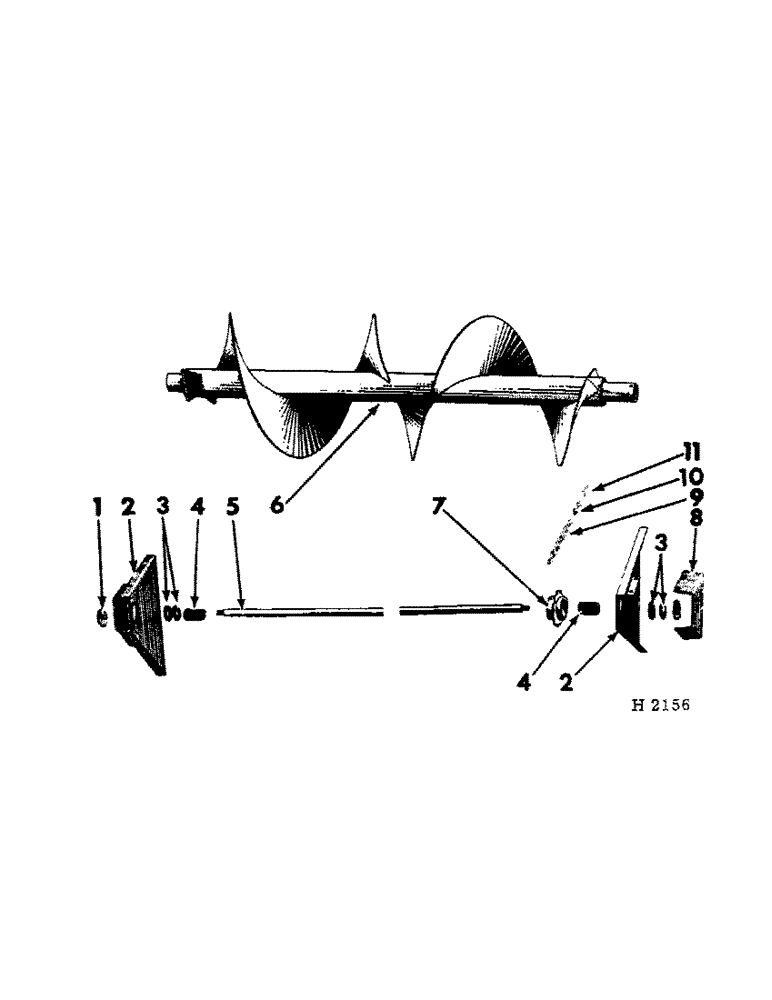

Запчасти Case IH 150 (E-19[A]) - WIDESPREAD - SPIRAL TYPE (SPECIAL)

1

50115K

WASHER

21/32 x 2-1/2 x 11 ga

2шт.

2

619300R11

SUPPORT, side LH

1шт.

2

619301R11

SUPPORT, side RH

1шт.

19427R1

BOLT

W/NUT, 3/8 x 7/8" cd-pltd crg (4-RH, 5-LH)

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

3

551179R1

WASHER, 1-1/32 x 2-1/4 x 22 ga

1шт.

4

617620R91

BEARING, widespread

2шт.

5

617454R1

ROD, widespread tie

1шт.

102639

NUT,5/8"-11, G5

2шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

50115K

WASHER

WASH, 21/32 x 2-1/2 x 11 ga

2шт.

6

617632R91

WIDESPREAD, spiral

1шт.

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

2шт.

7

619020R1

SPROCKET, 10T widespread drive

1шт.

Q73

KEY,3/8" Sq x 1 3/4", Par

3/8 x 3/8 x 1-3/4" straight

1шт.

102894

SET SCREW

3/8 x 3/4" sq-hd cup-pt set

1шт.

8

619303R1

SUPPORT, extension

1шт.

19427R1

BOLT

W/NUT, 3/8 x 7/8" cd-pltd crg

14шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

9

CHAIN, widespread drive (1-1/4" extended pitch agricultural) (order 1-569089R91, 10 ft chain, reduce to 55 links, add 2-456929R91, offset links & 1-456980R91, connecting link)

1шт.

10

456929R91

CHAIN LINK

LINK, drive chain offset

2шт.

1360D

PIN, offset link

2шт.

1751D

PACKAGE

C-PIN, 1/4 lb pkg

1шт.

11

456980R91

CHAIN LINK

LINK, drive chain connecting

1шт.

1751D

PACKAGE

C-PIN, 1/4 lb pkg

1шт.
