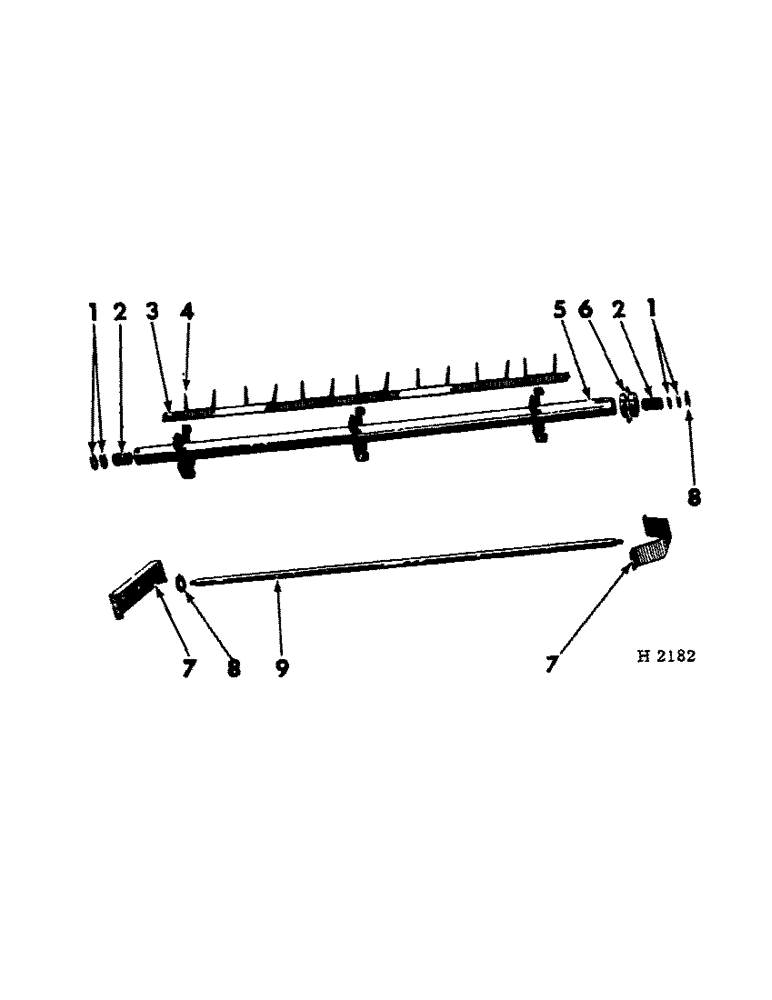

Запчасти Case IH 150 (E-18) - UPPER BEATER

1

551179R1

WASHER, 1-1/32 x 2-1/4 x 22 ga

1шт.

2

617620R91

BEARING, shaft

2шт.

3

617639R91

ANGLE, beater no. 1 (includes 106915 rivets, & 617506R1 teeth)

1шт.

3

617640R91

ANGLE, beater no. 2 (includes 106915 rivets, & 617506R1 teeth)

1шт.

3

617641R91

ANGLE, beater no. 3 (includes 106915 rivets, & 617506R1 teeth)

1шт.

3

617642R91

ANGLE, beater no. 4 (includes 106915 rivets, & 617506R1 teeth)

1шт.

180121

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

W/NUT, 3/8 x 7/8" cd-pltd type 2

12шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

12шт.

4

617506R1

TOOTH

double

28шт.

106915

RIVET,Tr Hd, 5/16" x 7/8"

5/16 x 7/8" truss-hd

56шт.

5

617440R91

SHAFT, upper beater

1шт.

80711

LUBE NIPPLE,65 Degree, 1/8" NPT x 7/8" lg

LUB-FTG, 1/8" - 65 degree elbow

1шт.

6

617408R1

SPROCKET, 11 beater driven

1шт.

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

1шт.

Q73

KEY,3/8" Sq x 1 3/4", Par

3/8 x 3/8 x 1-3/4" straight

1шт.

770648312Z

CLAMP

SCREW, 3/8 x 3/4" sq-hd cup-pt set

1шт.

7

617472R1

SUPPORT, shaft LH

1шт.

7

617473R1

SUPPORT, shaft RH

1шт.

19417R1

BOLT

W/NUT, 3/8 x 1" cd-pltd crg

8шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

8шт.

8

50115K

WASHER

21/32 x 2-1/2 x 11 ga

1шт.

9

617441R1

ROD, beater shaft tie

1шт.

102639

NUT,5/8"-11, G5

2шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.
