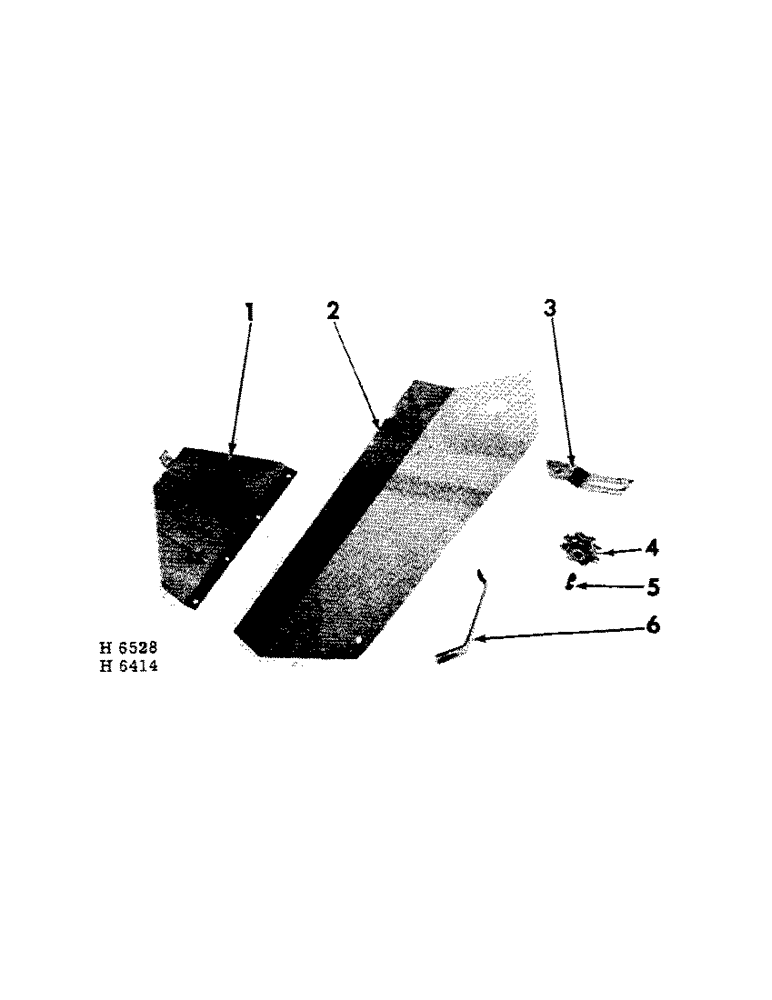

Запчасти Case IH 150 (E-18[A]) - UPPER BEATER CHAIN SHIELD

1

613820R11

SHIELD, upper beater drive chain (when machine equipped with forage box)

1шт.

14985R1

BOLT

W/NUT, 1/4 x 1/2" crg

4шт.

19426R1

BOLT W/NUT, 3/8 x 7/8" cd-pltd crg

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

2

613769R1

SHIELD, upper beater

1шт.

19416R1

BOLT

W/NUT, 5/16 x 3/4" cd-pltd crg

1шт.

19426R1

BOLT W/NUT, 3/8 x 7/8" cd-pltd crg

1шт.

619855R1

WASHER

WASH, 11/32 x 3/4 x 16 ga cd-pltd

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

80680

LOCK WASHER,3/8 0.381 CST ZND

WASHER, LOCK, 3/8"

1шт.

3

613760R1

ARM, chain tightener

1шт.

19417R1

BOLT

W/NUT, 3/8 x 1" cd-pltd crg

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

4

616541R1

DRIVE SPROCKET

SPROCKET, 7T chain tightener

1шт.

271293

PULLEY

LUB-FTG, 5/16"

1шт.

15144R1

BOLT

W/NUT, 1/2 x 3" crg

1шт.

12026R1

WASHER

WASH, 17/32 x 1-1/4 x 16 ga

2шт.

615168R1

WASHER

WASH, 25/32 x 1-1/2 x 11 ga

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

5

612794R1

SPACER

BUSHING, tightener sprocket

1шт.

6

613761R1

SUPPORT, chain shield lower

1шт.

17448R1

BOLT (SPREADER)

BOLT W/NUT, 1/2 x 1-1/4" mach

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.
