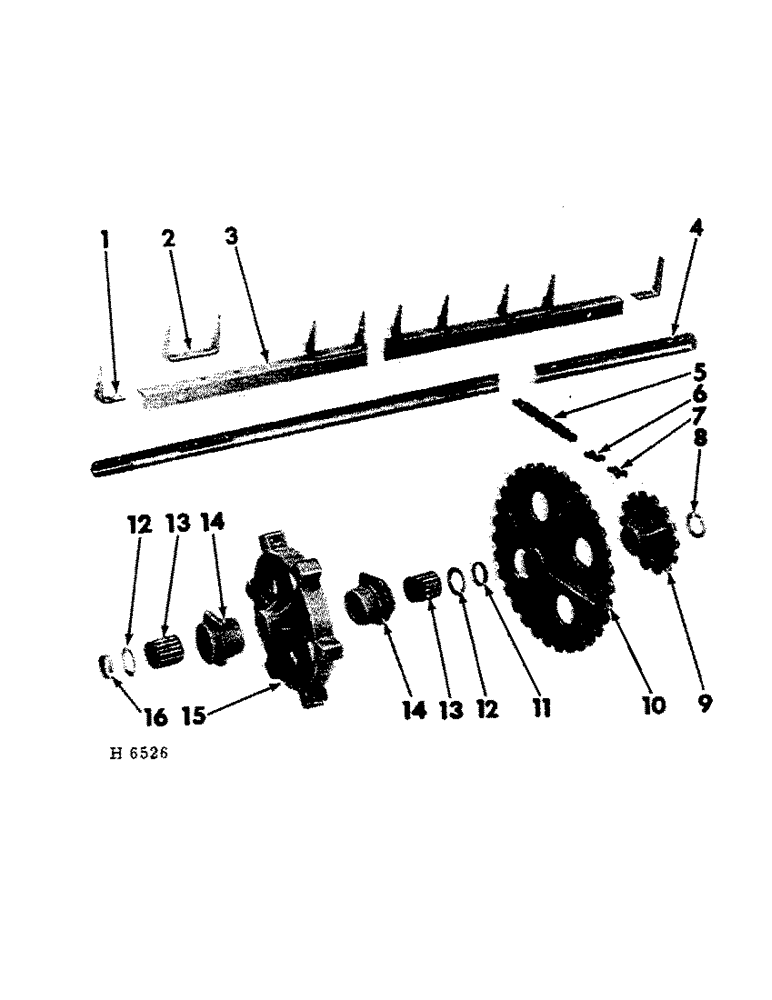

Запчасти Case IH 150 (E-17) - LOWER BEATER

1

617507R1

TOOTH, single LH

3шт.

1

617508R1

TOOTH, single RH

3шт.

106915

RIVET,Tr Hd, 5/16" x 7/8"

5/16 x 7/8" truss-hd

6шт.

2

617506R1

TOOTH

double

30шт.

106915

RIVET,Tr Hd, 5/16" x 7/8"

5/16 x 7/8" truss-hd

60шт.

3

617643R91

ANGLE, no. 1 (includes 106915 rivets, & 617506R1 & 617508R1, teeth)

1шт.

3

617644R91

ANGLE, no. 2 (includes 106915 rivets, & 617506R1 & 617508R1, teeth)

1шт.

3

617645R91

ANGLE, no. 3 (includes 106915 rivets, & 617506R1 & 617508R1, teeth)

1шт.

3

617646R91

ANGLE, no. 4 (includes 106915 rivets, & 617506R1, teeth)

1шт.

3

617647R91

ANGLE, no. 5 (includes 106915 rivets, & 617506R1 & 617507R1, teeth)

1шт.

3

617648R91

ANGLE, no. 6 (includes 106915 rivets, & 617506R1 & 617507R1, teeth)

1шт.

180130

BOLT,Hex, 3/8" - 16 x 2", Gr 5

W/NUT, 3/8 x 2" cd-pltd type 2

18шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

18шт.

4

613246R1

SHAFT, lower beater

1шт.

NLS

NO LONGER SERVICED

SPLIT (COTTER), 3/16" x 2"

1шт.

Q5004

DISC,32.5mm ID x 57mm OD x 1.5mm Thk

WASH, 1-9/32 x 2-1/4 x 16 ga

1шт.

Q121

WASHER

WASH, 1-9/32 x 2 x 16 ga

3шт.

5

CHAIN, upper beater drive (1-1/4" extended pitch agricultural) (order 1-569089R91, 10 ft chain, reduce to 45 links, add 2-456929R91, offset links & 1-456980R91 connecting link)

1шт.

6

456980R91

CHAIN LINK

LINK, chain connecting

1шт.

1751D

PACKAGE

C-PIN, 1/4 lb pkg

1шт.

7

456929R91

CHAIN LINK

LINK, chain offset

2шт.

1360D

PIN, offset link

1шт.

1751D

PACKAGE

C-PIN, 1/4 lb pkg

1шт.

8

Q3483

WASHER

1-9/32 x 2 x 11 ga

1шт.

9

617405R2

SPROCKET ASSY.

SPROCKET, 14t upper beater drive

1шт.

616505R1

KEY, 5/16 x 5/16 x 4" straight

1шт.

10

619021R2

SPROCKET ASSY.

SPROCKET, 31T widespread drive

1шт.

616505R1

KEY, 5/16 x 5/16 x 4" straight

1шт.

11

SA3120

SPACER, shaft RH

1шт.

12

Q5004

DISC,32.5mm ID x 57mm OD x 1.5mm Thk

WASHER, 1-9/32 x 2-1/4 x 16

1шт.

13

619671R91

ROLLER BEARING,31.75mm ID x 47.63mm OD x 50.8mm W

shaft

2шт.

14

619542R1

CAGE

HOUSING, shaft brg

2шт.

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

2шт.

15

619543R1

BRACKET, beater shaft

3шт.

616509R1

KEY, 5/16 x 5/16 x 2-5/8" straight

3шт.

19479R1

PIN,1/4" x 2", Coiled

(RH) 1/4" x 2", Coiled

1шт.

16

F16766

SPACER, shaft LH

1шт.
