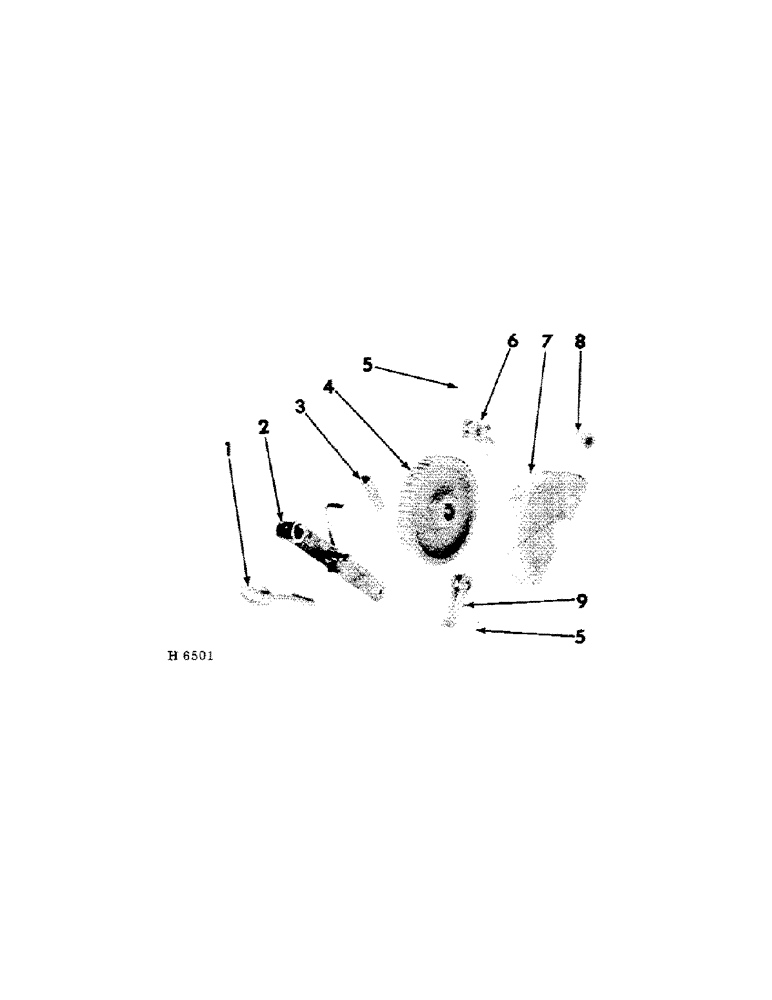

Запчасти Case IH 150 (E-15[A]) - REAR ENDGATE DRIVE (LIQUID MANURE)

1

613810R1

PLATE, sector support

1шт.

15039R1

BOLT

W/NUT, 3/8 x 1-1/2" crg

1шт.

15054R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1 3/4", Gr 2

BOLT, CARRIAGE, , w/Nut Short NK, 3/8"-16 x 1 3/4", G2

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

2

612808R1

SECTOR, trip rope

1шт.

15054R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1 3/4", Gr 2

BOLT, CARRIAGE, , w/Nut Short NK, 3/8"-16 x 1 3/4", G2

2шт.

Q1505

WASHER

WASH, 13/32 x 1 x 16 ga

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

3

612785R21

LEVER, trip rope

2шт.

617938R1

PIN,5/16" x 1 3/8", Coiled

2шт.

4

4A

SPRING

trip lever

1шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

2шт.

5

612721R2

PAWL, trip

2шт.

17498R1

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 2

W/NUT, 1/2 x 1-3/4" mach

2шт.

Q5035

WASHER

WASH, 17/32 x 1 x 16 ga

2шт.

Q169

WASH, 25/32 x 1 x 16 ga

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

6

519628R1

SPACER

BUSHING, trip pawl

2шт.

7

613809R1

SUPPORT, adjusting rod

1шт.

17420R1

BOLT,Hex, 3/8"-16 x 7/8", G2

W/NUT, 3/8 x 7/8" mach

1шт.

15054R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1 3/4", Gr 2

BOLT, CARRIAGE, , w/Nut Short NK, 3/8"-16 x 1 3/4", G2

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

ROPE, 3/8" sisal x 21 ft trip (dealer to supply from bulk stock)

1шт.

1

612934R11

GUIDE

trip lever rope

1шт.

15002R1

BOLT, CARRIAGE, Short NK, 3/8"-16 x 7/8", G2, Full Thd, w/Nut Short NK, 3/8"-16 x 7/8", G2, Full Thd

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

2

612936R11

LEVER, endgate trip, Serial Range: (prior-1964)

1шт.

2

608413R91

LEVER, endgate trip (1964 & since)

1шт.

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

1шт.

350515R1

WASHER

WASH, 21/32 x 1 x 16 ga

2шт.

103385

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

1шт.

3

519146R1

SPRING, trip lever

1шт.

4

612931R1

WHEEL, 50T ratchet

1шт.

581306R1

KEY,5/16" Sq x 1 1/4", Par

1шт.

5

612951R1

SPRING

ratchet pawl

2шт.

6

608412R91

PAWL

ratchet wheel upper

1шт.

7

613855R11

SHIELD, endgate ratchet wheel

1шт.

15002R1

BOLT, CARRIAGE, Short NK, 3/8"-16 x 7/8", G2, Full Thd, w/Nut Short NK, 3/8"-16 x 7/8", G2, Full Thd

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

8

612949R1

SPACER, ratchet pawl upper

1шт.

16785R1

BOLT, 7/16 x 3-1/4" dld crg

1шт.

350515R1

WASHER

WASH, 21/32 x 1 x 16 ga

2шт.

W6652

WASHER

WASH, 15/32 x 1 x 16 ga

1шт.

425-127

SLOTTED NUT,7/16"-14, G5

7/16" slt

1шт.

103374

COTTER PIN,3/32" x 1"

Pin, Split (Cotter), 3/32" x 1"

1шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

1шт.

9

616361R1

PAWL

ratchet wheel lower

1шт.

ROPE, 3/8" sisal x 17-1/2 ft trip lever (dealer to supply from bulk stock)

1шт.
