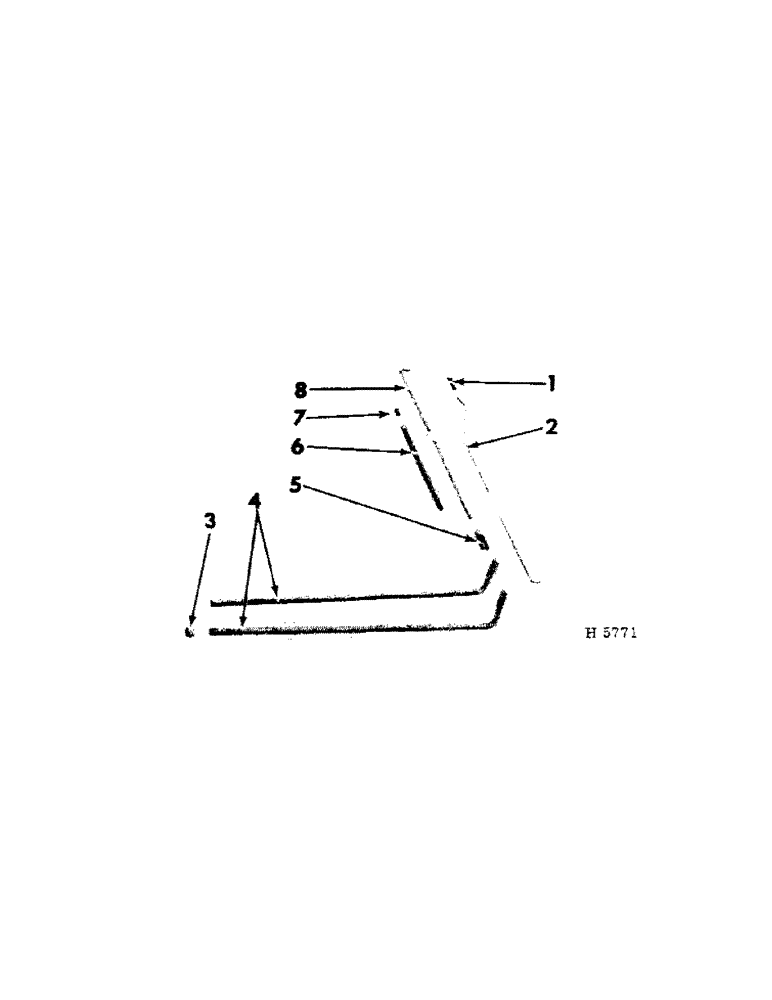

Запчасти Case IH 150 (E-14[A]) - CLUTCH THROW-OUT AND FEED CONTROL
№
Артикул
Название
Примечание
Количество
1
104037
CLEVIS
clutch throw-out rod
1шт.
Q876
AXLE PIN
PIN, 5/16 x 1-1/8" std-hd dld
1шт.
103384
COTTER PIN,1/8" x 3/4"
Pin, Split (Cotter), 1/8" x 3/4"
1шт.
2
613742R1
ROD, clutch throw-out
1шт.
Q398
WASHER
WASH, 11/32 x 7/8 x 16 ga
1шт.
103384
COTTER PIN,1/8" x 3/4"
Pin, Split (Cotter), 1/8" x 3/4"
1шт.
3
PO17652
SPACER, rope control adjusting rod
2шт.
4
613808R1
ROD, rope control adjusting
2шт.
617938R1
PIN,5/16" x 1 3/8", Coiled
2шт.
Q3501
WASHER
WASH, 25/32 x 1-1/4 x 16 ga
1шт.
432-1220
COTTER PIN,3/16" x 1 1/4"
Pin, Split (Cotter), 3/16" x 1 1/4"
1шт.
4
613811R1
ROD, lever control adjusting
2шт.
Q3501
WASHER
WASH, 25/32 x 1-1/4 x 16 ga
2шт.
617938R1
PIN,5/16" x 1 3/8", Coiled
2шт.
5
117825
CLEVIS, feed control rod
1шт.
M7801/2
DOWEL
PIN, 7/16 x 1-5/16" std-hd dld
1шт.
6
612871R1
SPRING
feed control rod
1шт.
7
612868R1
COLLAR, feed control rod
1шт.
83-1255
SET SCREW,Hex Soc, 1/4"-20 x 5/16"
SCREW, 1/4 x 5/16" hdls cup-pt set
1шт.
8
617429R1
ROD, feed control
1шт.
W6652
WASHER
WASH, 15/32 x 1 x 16 ga
1шт.
Выбрано товаров: 23
