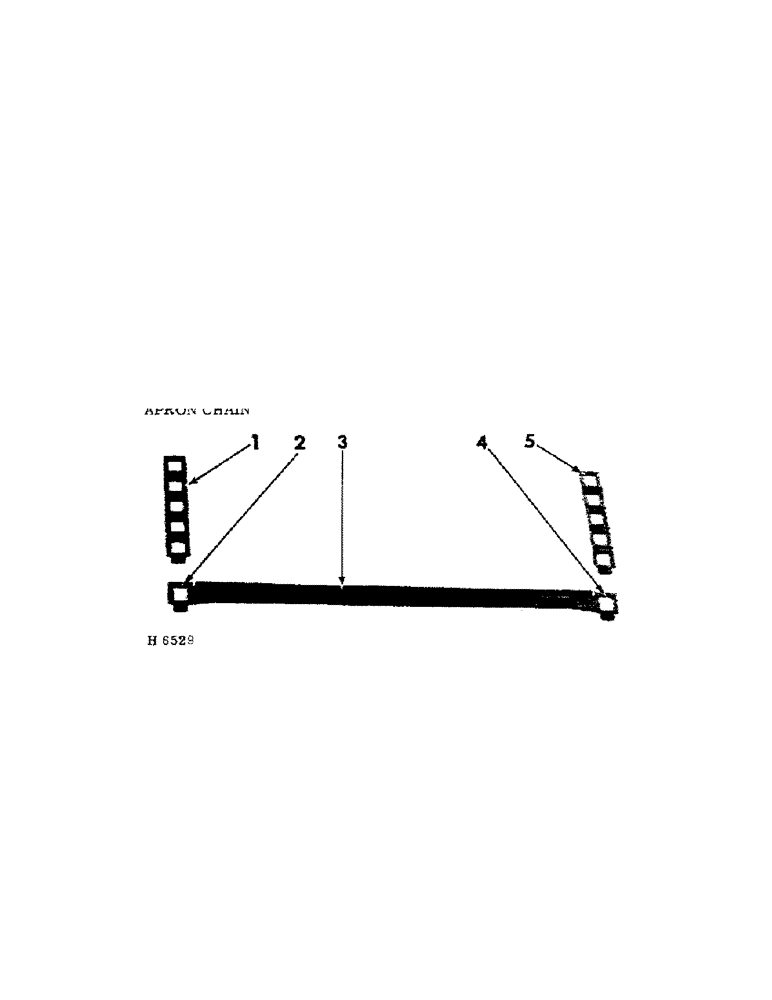

Запчасти Case IH 150 (E-13[A]) - APRON CHAIN

1

CHAIN, apron RH (order 2-CS-67XH, 10 ft chains, & when using 19-613787R11 attaching links, reduce chains to 78 links. However, if using 19-609279R1 attaching links, reduce chains to 97 links)

1шт.

2

613787R11

LINK ASSY.,67 Links x 58.75mm = 3936.25mm

LINK, chain attaching LH (opt w/609279R1, link)

19шт.

2

609279R1

LINK, chain attaching LH (opt w/613787R11, link)

1шт.

106915

RIVET,Tr Hd, 5/16" x 7/8"

5/16 x 7/8" truss-hd

19шт.

3

613789R91

MEMBER

CROSSMEMBER, apron (includes links, 613787R11 & 613788R11 & rivets, 106915) (opt w/609282R91, crossmember)

19шт.

3

609282R91

CROSSMEMBER, apron (includes links, 609279R1 & 609280R1 & rivets, 106915) (opt w/613789R91, crossmember)

19шт.

4

613788R11

LINK ASSY.,67 Links x 58.75mm = 3936.25mm

LINK, chain attaching RH (opt w/609280R1, link)

19шт.

4

609280R1

LINK, chain attaching RH (opt w/613788R1, link)

19шт.

106915

RIVET,Tr Hd, 5/16" x 7/8"

5/16 x 7/8" truss-hd

19шт.

5

CHAIN, apron LH (order 2-CS-67XH, 10 ft chains, & when using 19-613788R11 attaching links reduce to 78 links. However, if using 19-609280R1 attaching links reduce to 97 links)

1шт.
