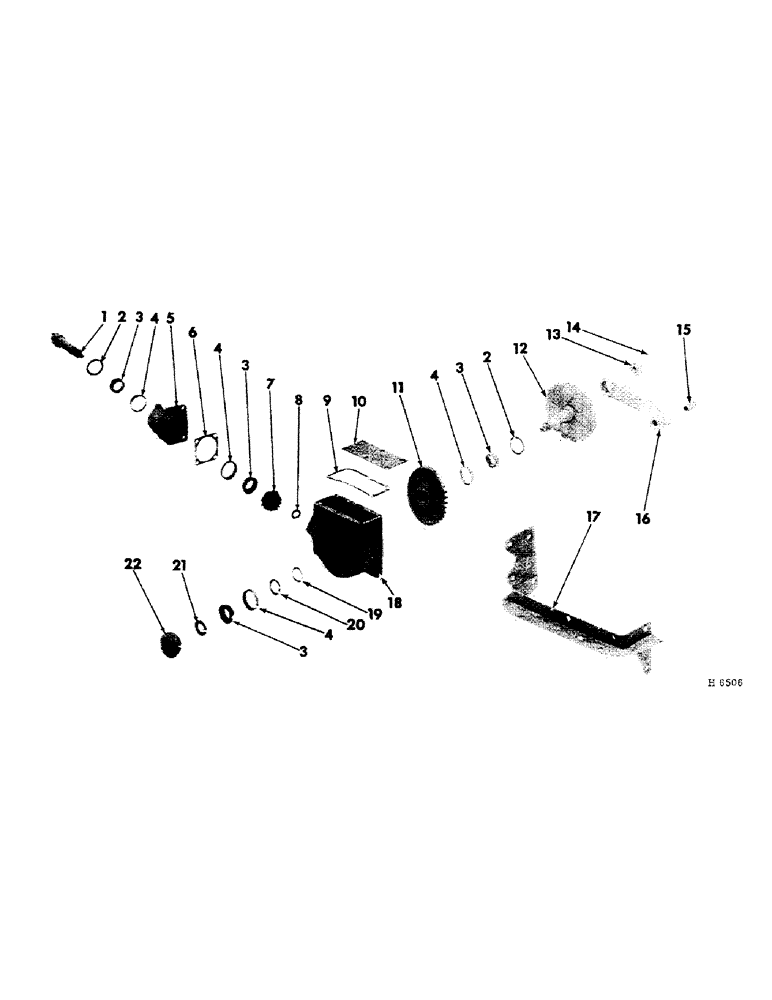

Запчасти Case IH 150 (E-12) - MAIN DRIVE GEAR CASE

613711R93

CASE, main drive gear (consists of parts listed below, unless otherwise noted)

1шт.

1

612750R1

SHAFT, bevel pinion

1шт.

612887R1

WASHER

WASH, 21/32 x 1-1/4 x 11 ga special

1шт.

102649

SLOTTED NUT,5/8"-18, G5

NUT, 5/8"-18, G5

1шт.

103385

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

1шт.

2

612964R91

SEAL

bevel pinion & gear oil

2шт.

3

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

CONE, gear case brg

4шт.

4

651817R1

BEARING CUP

CUP, gear case brg

4шт.

4

651817R1GV

BEARING CUP

Value, Bearing Cup

4шт.

5

612734R1

HOUSING

bevel gear

1шт.

179840

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5

3/8 x 1-1/8" type 2

1шт.

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3шт.

15041R1

CARRIAGE BOLT,Short Sq Nk, 1/2" - 13 x 1 1/2"

BOLT W/NUT, 1/2 x 1-1/2" crg

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

6

612856R1

GASKET

SHIM, bevel gear housing

1шт.

7

612883R2

GEAR

PINION, main drive bevel

1шт.

8

612887R1

WASHER

pinion shaft special

1шт.

9

612881R1

GASKET

case cover

1шт.

10

612802R1

COVER, gear case

1шт.

17407R1

BOLT,5/16" - 18 x 5/8"

5/16 x 7/8" mach

6шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

11

612882R2

GEAR, main drive bevel

1шт.

609379R1

KEY, 5/16 x 5/16 x 2" straight

1шт.

12

612900R91

SPROCKET, widespread beater drive

1шт.

612634R1

NUT

7/8" sltd

1шт.

114505

JAM NUT,Jam, 1/2"-13, G5

1шт.

12026R1

WASHER

WASH, 17/32 x 1-1/4 x 16 ga

1шт.

103387

COTTER PIN,1/8" x 1 1/2"

Pin, Split (Cotter), 1/8" x 1 1/2"

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

13

617617R91

BALL BEARING,15.86mm ID x 49.21mm OD x 20.65mm W

BEARING, rocket arm

1шт.

Not part of gear case.

1шт.

14

617618R1

SNAP RING,#193, 2.025, Int, Spiral

RING, rocker arm brg retaining

1шт.

Not part of gear case.

1шт.

15

617448R1

BUSHING, rocker arm

1шт.

Not part of gear case.

1шт.

16

617421R1

ARM, ratchet rocker

1шт.

Not part of gear case.

1шт.

80711

LUBE NIPPLE,65 Degree, 1/8" NPT x 7/8" lg

LUB-FTG, 1/8" - 65 degree elbow

1шт.

Not part of gear case.

1шт.

17

612899R91

SUPPORT, gear case

1шт.

Not part of gear case.

1шт.

17426R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

W/NUT, 3/8 x 1" mach

1шт.

17437R1

BOLT W/NUT, 3/8 x 1-1/8" mach

1шт.

Not part of gear case.

1шт.

17439R1

BOLT,Hex, 1/2" - 13 x 1 1/8", Gr 2

W/NUT, 1/2 x 1-1/8" mach

2шт.

Not part of gear case.

1шт.

623075R1

BOLT W/NUT, 1/2 x 1-1/4" cd-pltd mach

1шт.

Not part of gear case.

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

Not part of gear case.

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

Not part of gear case.

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

Not part of gear case.

1шт.

18

612735R21

CASE, gear (includes plugs, 103866)

1шт.

9617020

PLUG,1/4" - 18 x 0.48"

1/4" sq-hd pipe

3шт.

17486R1

BOLT

W/NUT, 1/2 x 1-5/8" mach

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

19

612857R1

SHIM

bevel gear stud

1шт.

20

612763R1

WASHER, bevel gear stud

1шт.

21

612889R1

WASHER

gear stud special

1шт.

22

612884R1

HUB CAP

CAP, gear case

1шт.
