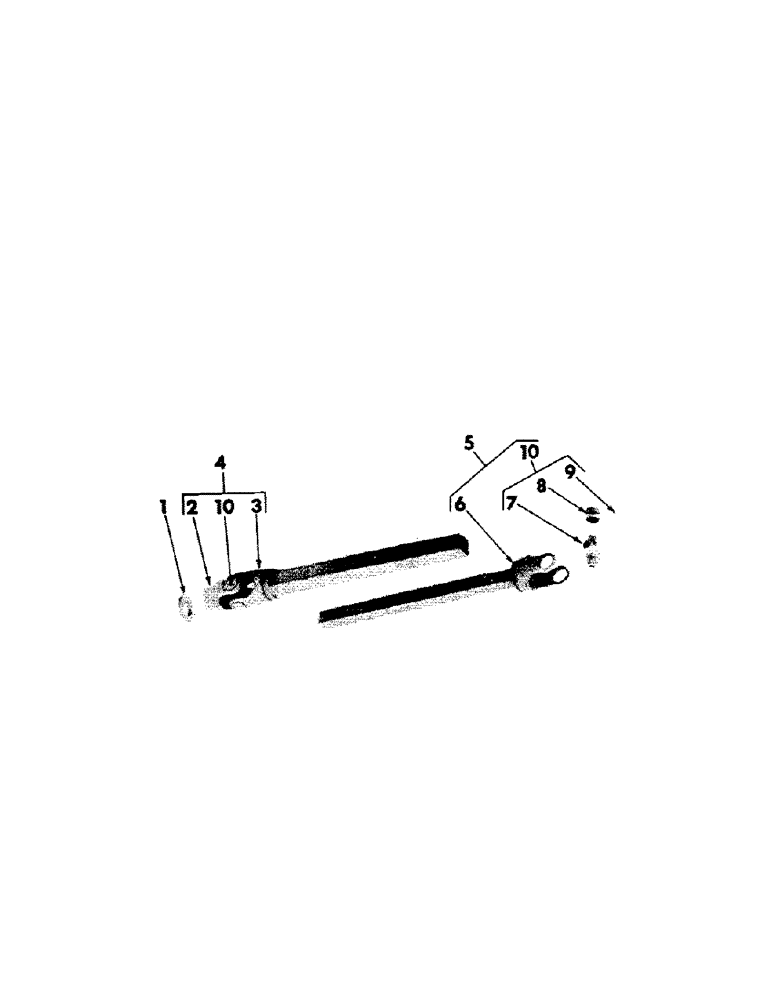

Запчасти Case IH 150 (E-11[B]) - SIDE DRIVE SHAFT UNIVERSAL (HAYES STEEL)

1

B12219

WASHER

drive shaft knuckle

2шт.

2

613466R1

YOKE

front & rear threaded

2шт.

3

613467R91

YOKE & TUBE, front

1шт.

4

613464R91

JOINT, front (parts in bracket) 14.812, 2.5" Length

1шт.

5

613465R91

JOINT, rear (parts in bracket)

1шт.

6

613472R91

YOKE

& SHAFT, rear

1шт.

7

CROSS, (order 1-613471R91, cross) (includes frg, 19769R91) (NSS)

2шт.

19769R91

LUB-FTG, - 65 degree elbow

1шт.

8

613470R11

BEARING, centre cross

8шт.

9

613469R1

RING

centre cross snap

8шт.

10

613471R91

SPIDER ASSY.

CROSS, centre (parts in bracket)

2шт.
