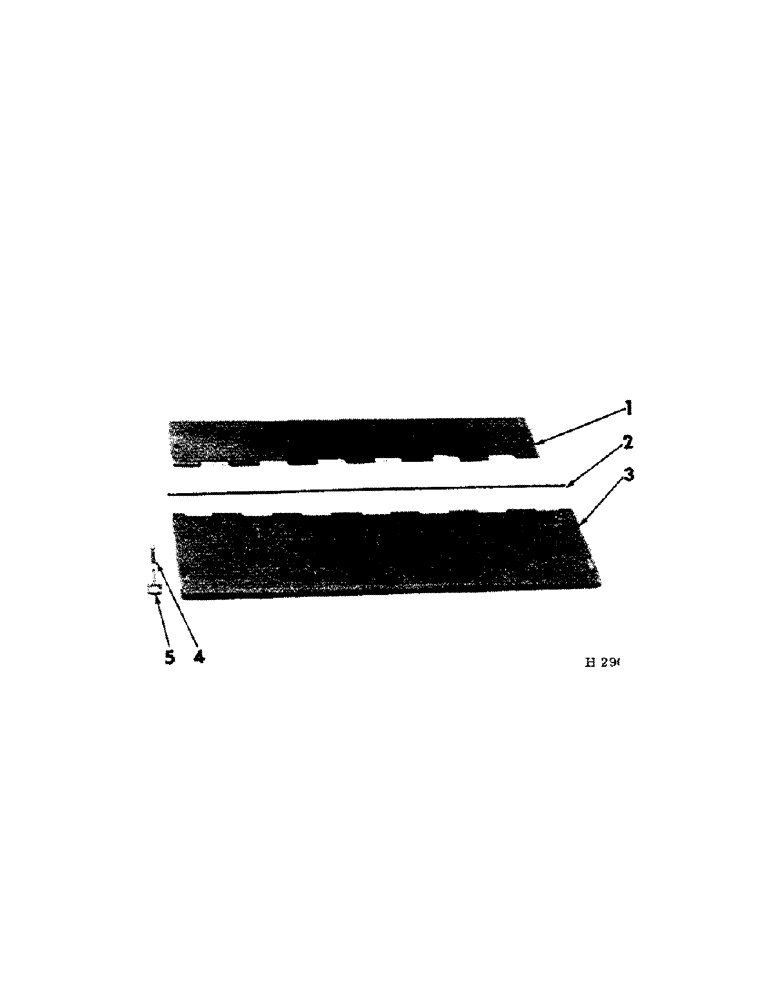

Запчасти Case IH 150 (E-11[A]) - REAR PAN

1

618256R21

BOTTOM, pan fixed

1шт.

14994R1

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 2

BOLT, CARRIAGE, , w/Nut Short NK, 5/16"-18 x 3/4", G2

3шт.

15001R1

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 7/8", Gr 2

BOLT, CARRIAGE, , w/Nut Short NK, 5/16"-18 x 7/8", G2, Full Thd

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

2

618255R1

ROD, hinged pan

1шт.

103385

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

2шт.

3

618257R2

BOTTOM, hinged pan

1шт.

4

M296

SPRING

hinged pan bottom latch

2шт.

5

454502R1

LATCH

hinged bottom

2шт.

Q1504

WASHER

WASH, 13/32 x 7/8 x 16 ga

2шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

2шт.
