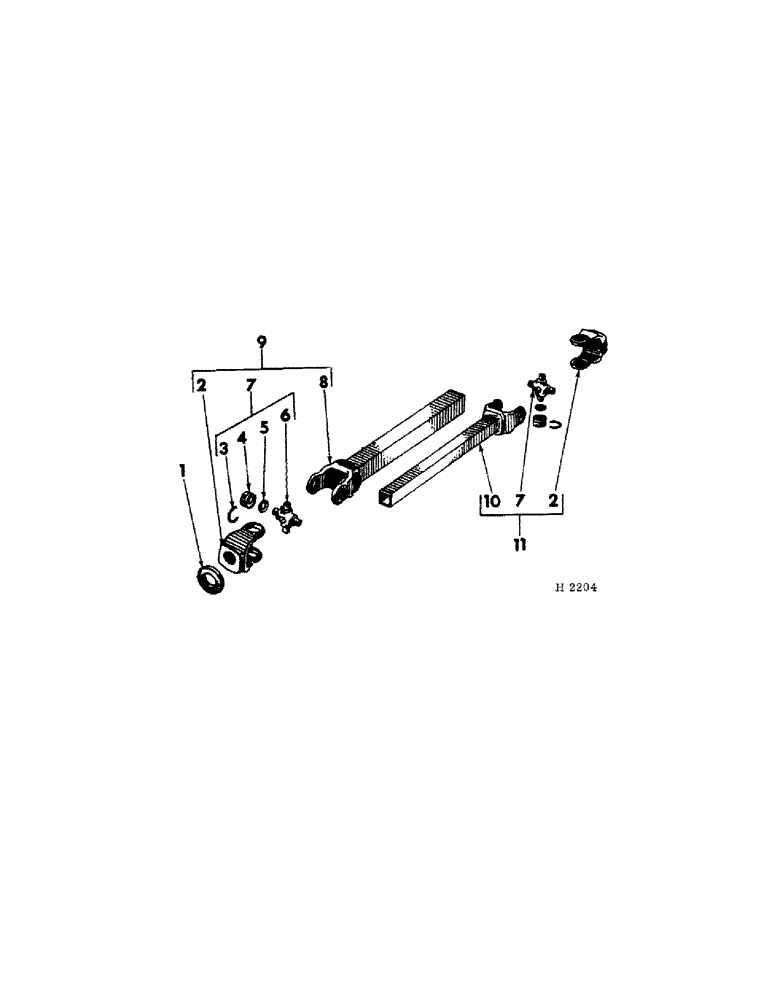

Запчасти Case IH 150 (E-10) - SIDE DRIVE SHAFT

1

613756R1

SHAFT, side drive

1шт.

Q162

WASHER

WASH, 1-5/32 x 1-3/4 x 16 ga

1шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

1шт.

2

617602R1

SHIELD, drive shaft

1шт.

3

565631R1

BEARING CAP,2.441" ID x 4.4375" OD x 0.34375"

TTE, brg

4шт.

19427R1

BOLT

W/NUT, 3/8 x 7/8" cd-pltd crg

4шт.

19417R1

BOLT

W/NUT, 3/8 x 1" cd-pltd crg

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

6шт.

4

455960R91

BALL BEARING

BEARING, shaft (Fafnir, Fischer & New Departure, w/557115R11, collar)

1шт.

4

610536R91

BEARING

shaft (SKF, w/610537R11, collar)

2шт.

5

613763R11

SUPPORT, side drive shaft front

1шт.

19772R1

BOLT W/NUT, 3/8 x 1-3/4" cd-pltd mach

1шт.

18422R1

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 3/4", Gr 2

BOLT W/NUT, 3/8 x 1-3/4" cd-pltd crg

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

6

557115R11

COLLAR

COLLAR, brg locking (includes 115321, screw) (Fafnir, Fischer & New Departure w/455960R91, brg)

2шт.

115321

SET SCREW,Hex Skt, 5/16"-18 x 5/16"

SCREW, 5/16 x 5/16" hdls cup-pt set

2шт.

6

610537R11

COLLAR

brg locking (includes 115321, screw) (SKF, w/610536R91, brg)

2шт.

115321

SET SCREW,Hex Skt, 5/16"-18 x 5/16"

SCREW, 5/16 x 5/16" hdls cup-pt set

2шт.

7

617692R1

SUPPORT, side universal shield front

1шт.

19417R1

BOLT

W/NUT, 3/8 x 1" cd-pltd crg

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

8

617630R1

SUPPORT, side universal shield rear

1шт.

17412R1

BOLT,Hex, 3/8" - 16 x 3/4", Gr 2

3/8 x 3/4" mach

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

9

617533R1

SHIELD, side universal

1шт.

19428R1

BOLT W/NUT, 5/16 x 5/8" cd-pltd crg

2шт.

619855R1

WASHER

WASH, 11/32 x 3/4 x 16 ga

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

10

617459R1

HANGER, side drive shaft rear

1шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

W/NUT, 3/8 x 1" cd-pltd mach

1шт.

19417R1

BOLT

W/NUT, 3/8 x 1" cd-pltd crg

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.
