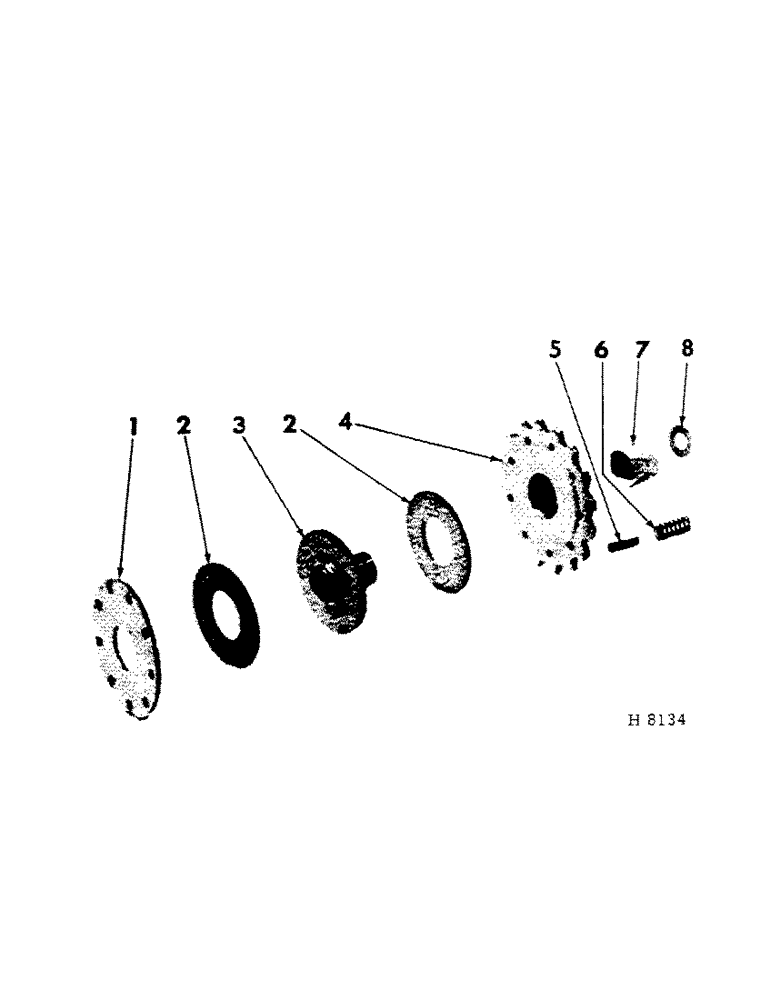

Запчасти Case IH 150 (E-09[A]) - SIDE DRIVE SHAFT CLUTCH

1

617486R1

PLATE, clutch backing (1961-1964)

1шт.

15142R1

BOLT (SPREADER)

BOLT W/NUT, 3/8 x 3" crg

6шт.

Q1505

WASHER

WASH, 13/32 x 1 x 16 ga

6шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

6шт.

1

608050R1

RETAINER

PLATE, clutch backing (1964 & since)

1шт.

15142R1

BOLT (SPREADER)

BOLT W/NUT, 3/8 x 3" crg

9шт.

Q1505

WASHER

WASH, 13/32 x 1 x 16 ga

9шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

9шт.

2

617619R1

FACING

clutch

2шт.

3

612744R1

CLUTCH PLATE

PLATE, clutch

1шт.

T14185

KEY, 1/4 x 1/4 x 2-3/4" straight 1/4" Sq x 2 3/4", Par

1шт.

4

613745R11

SPROCKET, 19T clutch (includes 613752R1 bush) (1961-1964)

1шт.

4

608049R11

SPROCKET ASSY.

SPROCKET, 16T clutch (includes 613752R1 bush) (1964 & since)

1шт.

5

613828R1

SPACER

slip clutch (6-1961-1964) (9-1964 & since)

1шт.

6

613827R1

SPRING

clutch pressure (6-1961-1964) (9-1964 & since)

1шт.

7

613752R1

BUSHING

clutch sprocket

1шт.

8

551771R1

WASHER, 1-5/32 x 2-1/2 x 16 ga

1шт.
