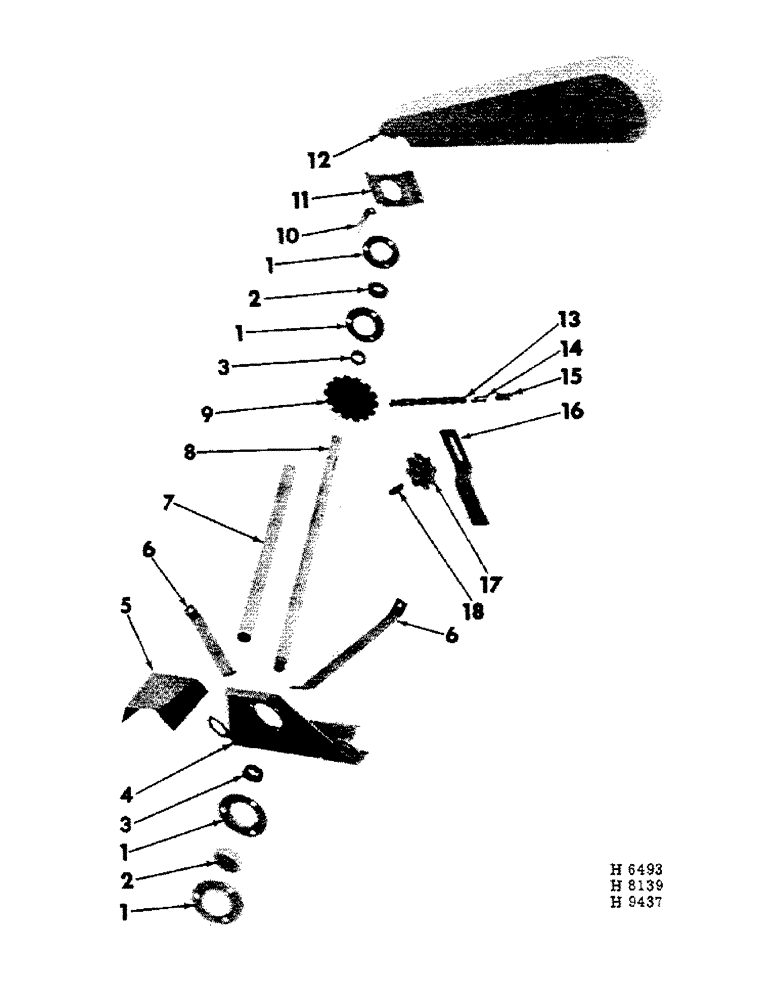

Запчасти Case IH 150 (E-08) - FRONT DRIVE SHAFT

1

565631R1

BEARING CAP,2.441" ID x 4.4375" OD x 0.34375"

TTE, shaft brg

4шт.

19417R1

BOLT

W/NUT, 3/8 x 1" cd-pltd crg

6шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

6шт.

2

455960R91

BALL BEARING

BEARING, (Fafnir Fischer or New Departure w/557115R11, collar)

1шт.

2

610536R91

BEARING

(SKF for 610537R11, collar)

2шт.

3

557115R11

COLLAR

COLLAR, brg locking (includes screw, 115321) (Fafnir Fischer or New Departure w/455960R91, brg)

2шт.

115321

SET SCREW,Hex Skt, 5/16"-18 x 5/16"

SCREW, 5/16 x 5/16" hdls cup-pt set

2шт.

3

610537R11

COLLAR

brg locking (includes screw, 115321) (SKF w/610536R91, brg)

2шт.

115321

SET SCREW,Hex Skt, 5/16"-18 x 5/16"

SCREW, 5/16 x 5/16" hdls cup-pt set

2шт.

4

613746R91

SUPPORT, front brg

1шт.

17448R1

BOLT (SPREADER)

BOLT W/NUT, 1/2 x 1-1/4" mach

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

5

607993R1

SHIELD

COVER, PTO shield

1шт.

BOLT W/NUT, 3/8 x 1" cd-pltd mach

2шт.

LK-WASH, 3/8" cd-pltd

2шт.

6

618259R1

STRAP, bearing support LH

1шт.

6

618260R1

STRAP, bearing support RH

1шт.

17420R1

BOLT,Hex, 3/8"-16 x 7/8", G2

W/NUT, 3/8 x 7/8" mach

2шт.

623066R1

BOLT W/NUT, 3/8 x 1" cd-pltd mach

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

7

611481R1

SHIELD, drive shaft

1шт.

8

611482R1

SHAFT, front drive

1шт.

9

617416R1

SPROCKET, 14T-540 RPM (1961-1964)

1шт.

9

609352R1

SPROCKET, 12T-540 RPM (1964 & since)

1шт.

9

613744R11

SPROCKET, 22T-1000 RPM (1961-1964)

1шт.

9

609354R11

SPROCKET, 13T-1000 RPM (1964 & since)

1шт.

Q98

KEY, 1/4 x 1/4 x 1-7/8" straight 1/4" Sq x 1 7/8", Par

1шт.

576482R1

LOCK PIN,5/16" x 2", Slotted

1шт.

10

613762R1

SUPPORT, chain shield lower

1шт.

17437R1

BOLT W/NUT, 3/8 x 1-1/8" mach

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

11

617483R2

SUPPORT, rear brg

1шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

W/NUT, 3/8 x 1" cd-pltd mach

3шт.

17437R1

BOLT W/NUT, 3/8 x 1-1/8" mach

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

12

613801R92

SHIELD

drive chain

1шт.

19429R1

BOLT, 5/16 x 7/8" cd-pltd crg

2шт.

7500032

BUSHING

NUT, 5/16" cd-pltd wing

2шт.

619855R1

WASHER

WASH, 11/32 x 3/4 x 16 ga cd-pltd

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

13

CHAIN, 540 & 1000 RPM drive (1961-1964) (1-1/4" extended pitch agricultural) (order 1-569089R91 10 ft chain, reduce to 69 links, add 1-456929R91 offset link & 1-456980R91 connecting link)

1шт.

13

CHAIN, 540 RPM drive (1964 & since) (1-1/2" extended pitch agricultural) (order 1-569090R91 10 ft chain, reduce to 57 links, add 1-567009R91 offset link & 1-567007R91 connecting link)

1шт.

13

CHAIN, 1000 RPM drive (1964 & since) (1-1/2" extended pitch agricultural) (order 1-569090R91 10 ft chain, reduce to 55 links, add 1-567009R91 offset link & 1-567007R91 connecting link)

1шт.

14

456980R91

CHAIN LINK

LINK, 1-1/4" pitch chain connecting 1/4 lb pkg c-pin

1шт.

14

567007R91

DRAG LINK

LINK, 1-1/2" pitch chain connecting 1/4 lb pkg c-pin

1шт.

15

456929R91

CHAIN LINK

LINK, 1-1/4" pitch chain offset

1шт.

1360D

PIN, offset link

1шт.

1751D

PACKAGE

C-PIN, 1/4 lb pkg

1шт.

15

567009R91

CHAIN LINK

LINK, 1-1/2" pitch chain offset

1шт.

1365D

PIN, offset link

1шт.

1366D

PIN, SPLIT (COTTER)

C-PIN, 1/4 lb pkg

1шт.

16

613741R1

ARM, 540 RPM chain tightener

1шт.

16

609642R1

BRACKET, 1000 RPM chain tightener

1шт.

17426R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

W/NUT, 3/8 x 1" mach

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

17

612859R1

ROLLER

1-1/4" pitch chain tightener

1шт.

15144R1

BOLT

W/NUT, 1/2 x 3" crg

1шт.

12026R1

WASHER

WASH, 17/32 x 1-1/4" x 16 ga

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

17

3347SB

SPROCKET, 1-1/2" pitch chain tightener

1шт.

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

1шт.

15144R1

BOLT

W/NUT, 1/2 x 3" crg

1шт.

12026R1

WASHER

WASH, 17/32 x 1-1/4 x 16 ga

2шт.

615168R1

WASHER

WASH, 25/32 x 1-1/2" x 11 ga

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

18

612794R1

SPACER

BUSHING, chain tightener

1шт.
