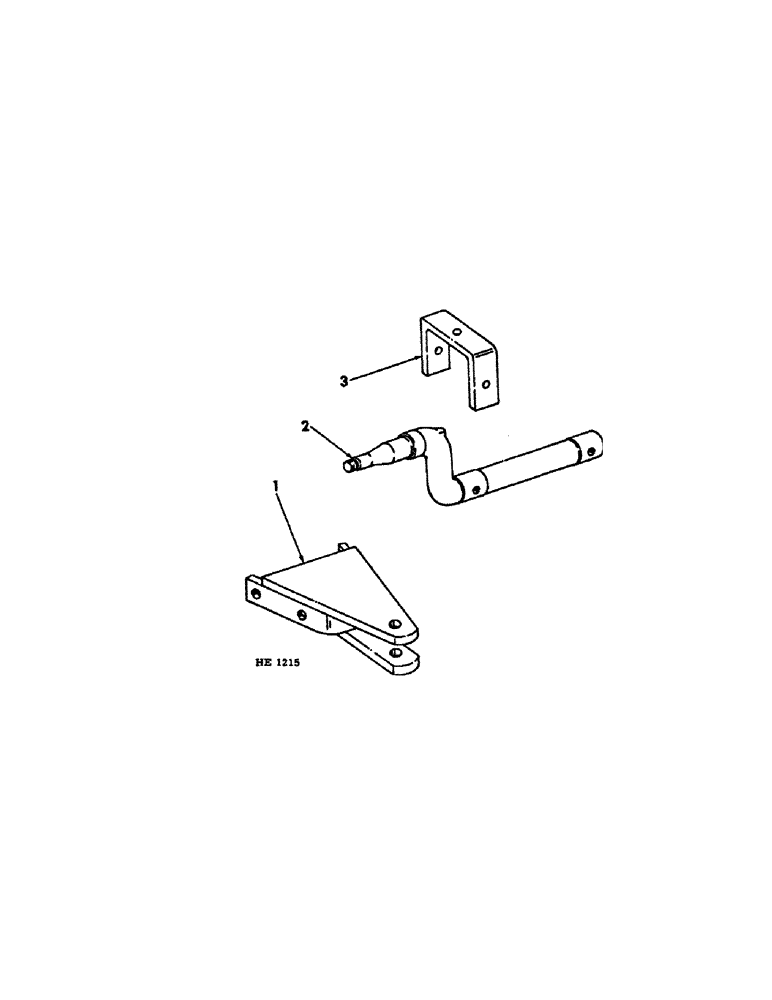

Запчасти Case IH 130 (H-06) - DROP AXLE CONVERSION PACKAGE

592804R91

PACKAGE, drop axle field conversion (composed of parts listed below)

1шт.

1

592795R92

BRACKET, tractor hitch

1шт.

88725

BOLT,Hex, 3/4" - 10 x 1 3/4", Gr 5, Full Thd

4шт.

New part number.

1шт.

280954

NUT,3/4"-10, G5

4шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

4шт.

650355R1

AXLE PIN

PIN, 3/4 x 3-3/4" std-hd-dld

1шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

1шт.

2

592799R11

AXLE, bent (includes 612634R1, nut; 103387, pin & 619373R1, washer)

2шт.

612634R1

NUT

7/8" - NF slt

2шт.

619373R1

WASHER

29/32 x 7 x ga

2шт.

103387

COTTER PIN,1/8" x 1 1/2"

Pin, Split (Cotter), 1/8" x 1 1/2"

2шт.

3

592800R1

CHANNEL, axle channel reinforcing

2шт.

433163

BOLT,Hex, 1/2" - 13 x 5", Gr 5

1/2 x 5"

2шт.

New part number.

1шт.

20546R1

SCREW,Hex, 1/2"-13 x 6", G5

BOLT, 1/2 x 6"

2шт.

New part number.

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

1018935R1

PAMPHLET, field conversion pkg

1шт.
