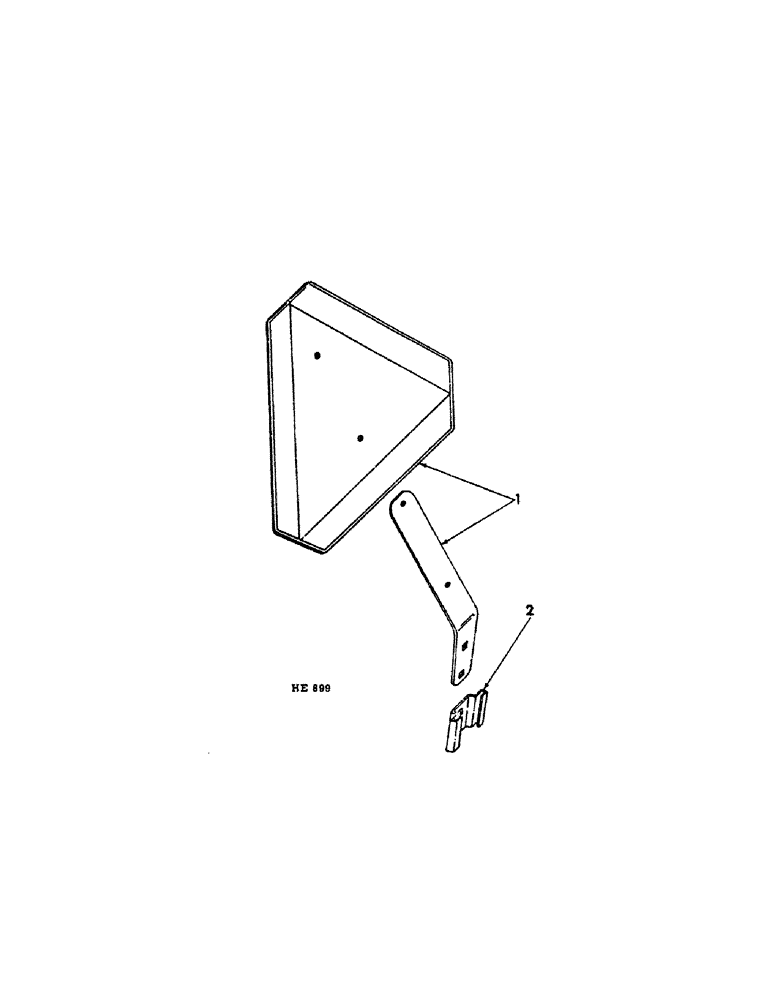

Запчасти Case IH 130 (H-06[A]) - SLOW MOVING VEHICLE SAFETY EMBLEM

1

407220R1

PRODUCT GRAPHIC

PACKAGE, slow moving vehicle steel emblem

1шт.

New part number.

1шт.

598802R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G5, Full Thd

BOLT, 5/16 x 3/4" crg

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

1

407218C1

PACKAGE, slow moving vehicle aluminum emblem

1шт.

New part number.

1шт.

598802R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G5, Full Thd

BOLT, 5/16 x 3/4" crg

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

2

398976R1

BRACKET

warning lamp & slow moving vehicle mounting

1шт.

598802R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G5, Full Thd

BOLT, 5/16 x 3/4" crg

2шт.

New part number.

1шт.

134238R1

WASHER

11/32 x 1 x 16 ga

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.
