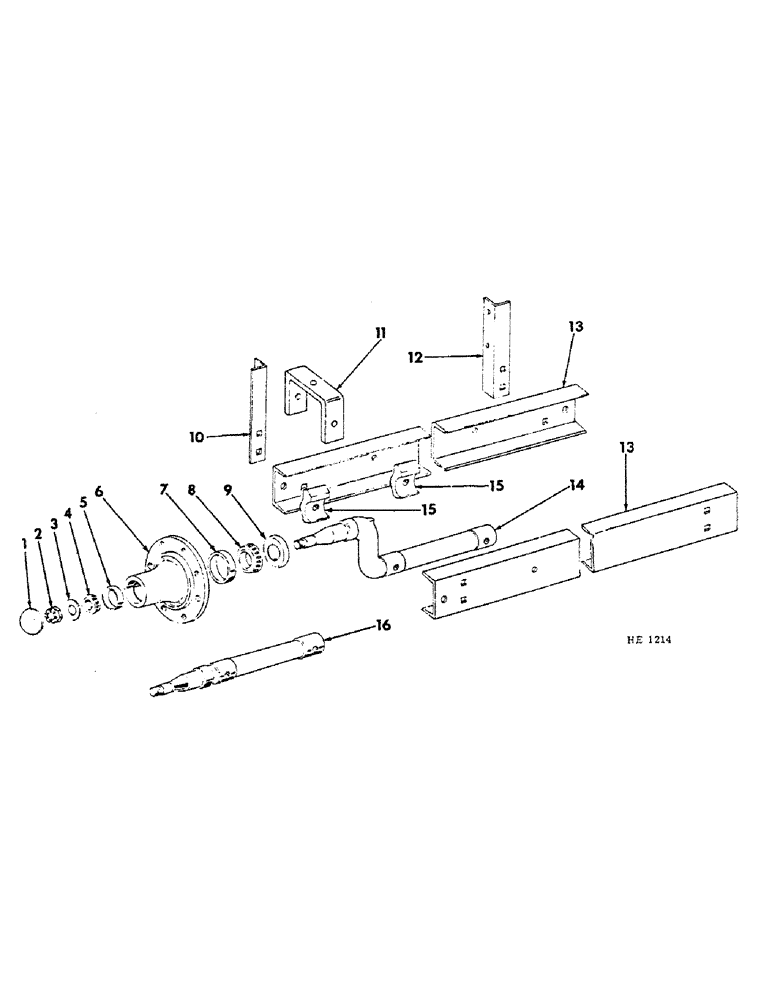

Запчасти Case IH 130 (H-05) - AXLE AND WHEEL HUB

1

612884R1

HUB CAP

CAP, wheel hub

2шт.

2

612634R1

NUT

7/8" - NF spindle

2шт.

3

619373R1

WASHER

29/32 x 2 x 7 ga spindle

2шт.

4

642955R91

BEARING ASSY,1.25" ID x 2.4409" OD x 0.75"

CONE, outer brg (opt to use 594162R91, cone)

2шт.

4

594162R91

CONE, outer brg (opt to use 642955R91, cone)

2шт.

New part number.

1шт.

5

642954R1

BEARING ASSY,1" ID x 2.441" OD x 0.8125"

CUP, outer brg (opt to use 594163R1, cup)

2шт.

5

594163R1

CUP, outer brg (opt to use 642954R1, cup)

2шт.

New part number.

1шт.

6

606374R1

HUB, wheel

2шт.

617918R1

BOLT,9/16" - 18 x 1 15/32"

wheel hub

16шт.

7

ST987

BEARING CUP

CUP, inner brg (opt to use 594160R1, cup)

2шт.

New part number.

1шт.

7

594160R1

BEARING, CUP,82.956 mm OD x 24.015 mm

CUP, inner brg (opt to use ST-987, cup)

2шт.

New part number.

1шт.

8

ST2118

TAPERED BEARING,1.75" ID x 3.27" OD x 0.9375"

CONE, inner brg (opt to use 594159R91, cone)

2шт.

New part number.

1шт.

8

594159R91

CONE, inner brg (opt to use ST2118, cone)

2шт.

New part number.

1шт.

79667H

SEAL

wheel spindle oil

2шт.

New part number.

1шт.

10

619722R1

ANGLE, channel support LH

1шт.

180121

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

3/8 x 7/8"

2шт.

New part number.

1шт.

495967R1

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

BOLT, 3/8 x 1" crg

2шт.

New part number.

1шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

11

592800R1

CHANNEL, reinforcing (for use on machines equipped w/drop axle)

2шт.

12

619723R1

ANGLE, channel support RH

1шт.

180121

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

3/8 x 7/8"

2шт.

New part number.

1шт.

495967R1

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

BOLT, 3/8 x 1" crg

2шт.

New part number.

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

13

619724R11

CHANNEL, wheel axle

2шт.

598813R1

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1", Gr 5

BOLT, 1/2 x 1" crg

4шт.

New part number.

1шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1/2 x 1-1/4"

4шт.

New part number.

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

8шт.

120384

WASHER,1/2"

LOCK, 1/2"

8шт.

14

592799R11

AXLE, bent (includes 1-612634R1, nut; 1-103387, pin & 1-619373R1, washer) (for use on machines equipped w/drop axle)

2шт.

612634R1

NUT

7/8" - NF slt

2шт.

619373R1

WASHER

29/32 x 2 x 7 ga

2шт.

103387

COTTER PIN,1/8" x 1 1/2"

Pin, Split (Cotter), 1/8" x 1 1/2"

2шт.

15

617401R1

CLAMP, wheel spindle

8шт.

433163

BOLT,Hex, 1/2" - 13 x 5", Gr 5

1/2 x 5" (2 used on machines equipped w/drop axle - 4 used on straight axle)

1шт.

New part number.

1шт.

20546R1

SCREW,Hex, 1/2"-13 x 6", G5

BOLT, 1/2 x 6 (for drop axle only)

2шт.

New part number.

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

16

617436R11

SPINDLE, wheel axle (includes 1-612634R1, nut) (for use on machines equipped w/straight axle)

1шт.

103387

COTTER PIN,1/8" x 1 1/2"

Pin, Split (Cotter), 1/8" x 1 1/2"

2шт.
