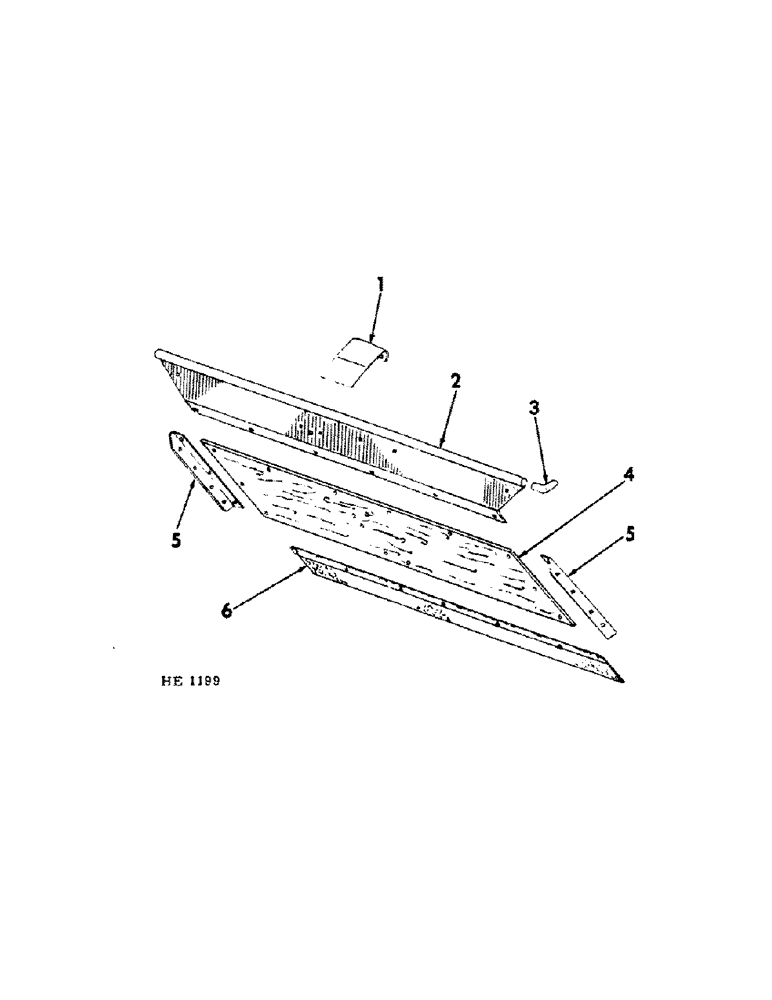

Запчасти Case IH 130 (H-04) - FRONT ENDGATE

1

609269R1

SHIELD, trip lever sector

1шт.

598802R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G5, Full Thd

BOLT, 5/16 x 3/4" crg

2шт.

New part number.

1шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

2

609268R1

SIDE, front top

1шт.

550809R1

BOLT, 3/8 x 3/4" crg

2шт.

New part number.

1шт.

550796R1

CARRIAGE BOLT,3/8" - 16 x 1 1/4", Grade 5

BOLT, 3/8 x 1-1/4" crg

5шт.

New part number.

1шт.

619856R1

WASHER

13/32 x 1 x 16 ga

3шт.

New part number.

1шт.

120376

NUT,5/16"-18, G5

3/8"

7шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

7шт.

3

612963R1

FILLER, front top side corner

2шт.

4

613732R1

BOARD, front endgate

1шт.

550796R1

CARRIAGE BOLT,3/8" - 16 x 1 1/4", Grade 5

BOLT, 3/8 x 1-1/4" crg

6шт.

New part number.

1шт.

120377

NUT,3/8" - 16, Gr 5

6шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

6шт.

5

619621R1

ANGLE, front end support LH

1шт.

5

619622R1

ANGLE, front end support RH

1шт.

550796R1

CARRIAGE BOLT,3/8" - 16 x 1 1/4", Grade 5

BOLT, 3/8 x 1-1/4" crg

8шт.

New part number.

1шт.

180126

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

3/8 x 1-1/2" (RH)

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

9шт.

120377

NUT,3/8" - 16, Gr 5

9шт.

6

612957R11

CANVAS, front endgate

1шт.

550796R1

CARRIAGE BOLT,3/8" - 16 x 1 1/4", Grade 5

BOLT, 3/8 x 1-1/4" crg

1шт.

New part number.

1шт.

634979R1

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/2"

BOLT, 3/8 x 1-1/2" crg

2шт.

New part number.

1шт.

120377

NUT,3/8" - 16, Gr 5

3шт.

619856R1

WASHER

13/32 x 1 x 16 ga

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.
